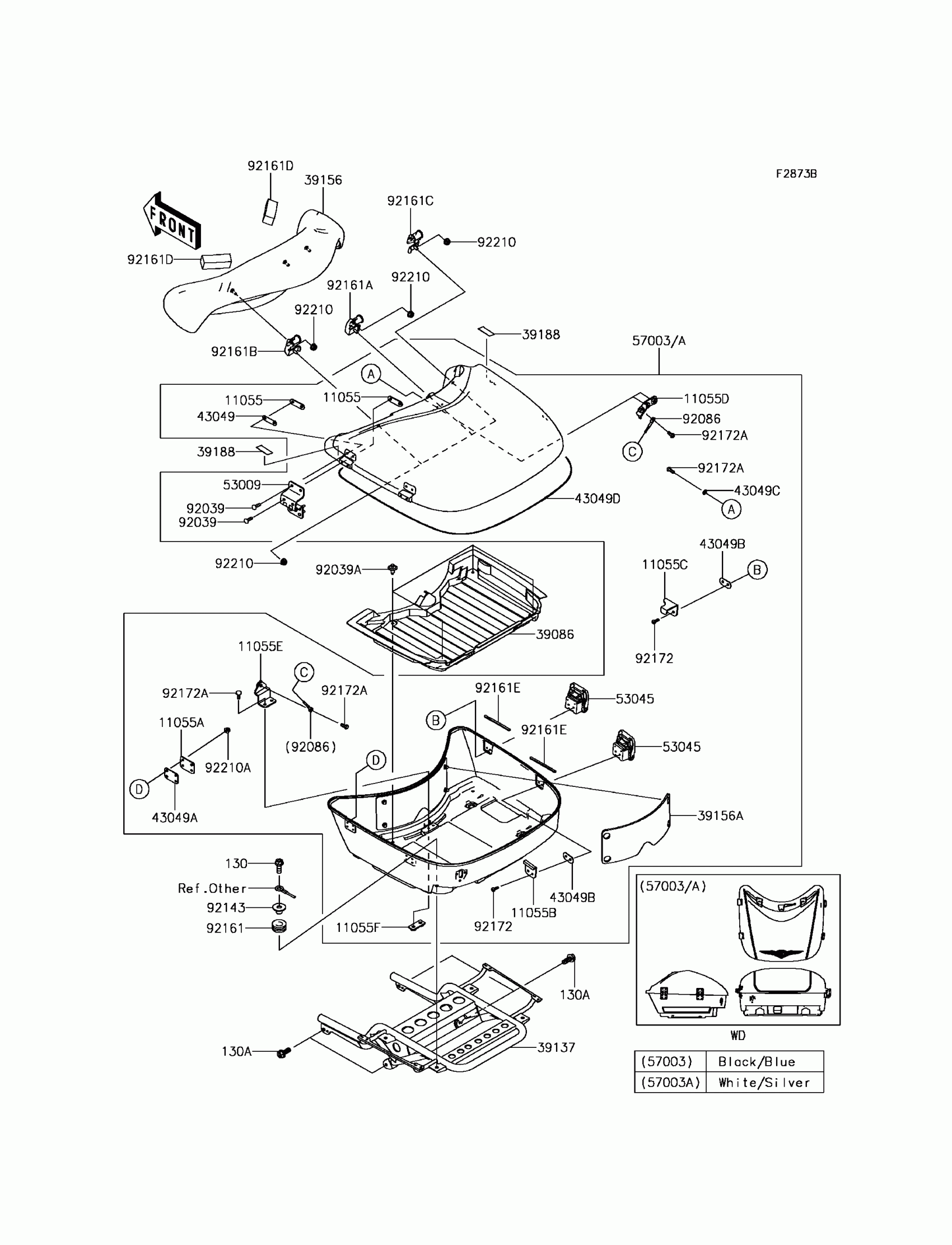

Kawasaki VULCAN® 1700 VOYAGER® ABS Saddlebags(Trunk)(BDF) Diagram

Description

Price

130

BOLT-FLANGED,8X22

130BA0822

$2.59

130A

BOLT-FLANGED,8X20

130CA0820

$1.47

11055

BRACKET

11055-1899

$2.25

11055A

BRACKET

11055-1900

$3.12

11055B

BRACKET

11055-1902

$5.19

11055C

BRACKET

11055-1904

$7.75

11055D

BRACKET

11055-1905

$20.00

11055E

BRACKET

11055-1906

$14.22

11055F

BRACKET

11055-1907

$11.22

39086

PAD-STORAGE

39086-0001

$70.57

39137

STAY-COMP

39137-0555

$476.95

39156

PAD,UPP,BLACK

39156-0523-MA

$372.36

39156A

PAD

39156-0717

$20.51

39188

TAPE

39188-0016

$3.78

43049

PACKING

43049-0016

$2.24

43049A

PACKING

43049-0017

$2.78

43049B

PACKING

43049-0018

$2.24

43049C

PACKING

43049-0019

$2.24

43049D

PACKING

43049-0020

$43.83

53009

HINGE

53009-0028

$65.38

53045

HOOK-ASSY

53045-0015

Unavailable

57003

BAG,CNT,BODY BLK+COVER BLK/BLU

57003-5339-45F

$1,934.11

57003A

BAG,CNT,WHITE+WHITE/SILVER

57003-5340-45H

$1,934.11

92039

RIVET

92039-0091

$3.90

92039A

RIVET

92039-1289

$2.29

92086

WIRE

92086-0014

$39.26

92143

COLLAR

92143-1450

$7.86

92161

DAMPER

92161-0290

$5.31

92161A

DAMPER

92161-0754

$49.85

92161B

DAMPER

92161-0755

$49.85

92161C

DAMPER

92161-0756

$49.85

92161D

DAMPER

92161-0802

$4.66

92161E

DAMPER

92161-0819

$4.66

92172

SCREW

92172-0049

$1.47

92172A

SCREW

92172-0450

$1.71

92210

NUT

92210-0401

$3.07

92210A

NUT,CAP,4MM

92210-0434

$2.15
