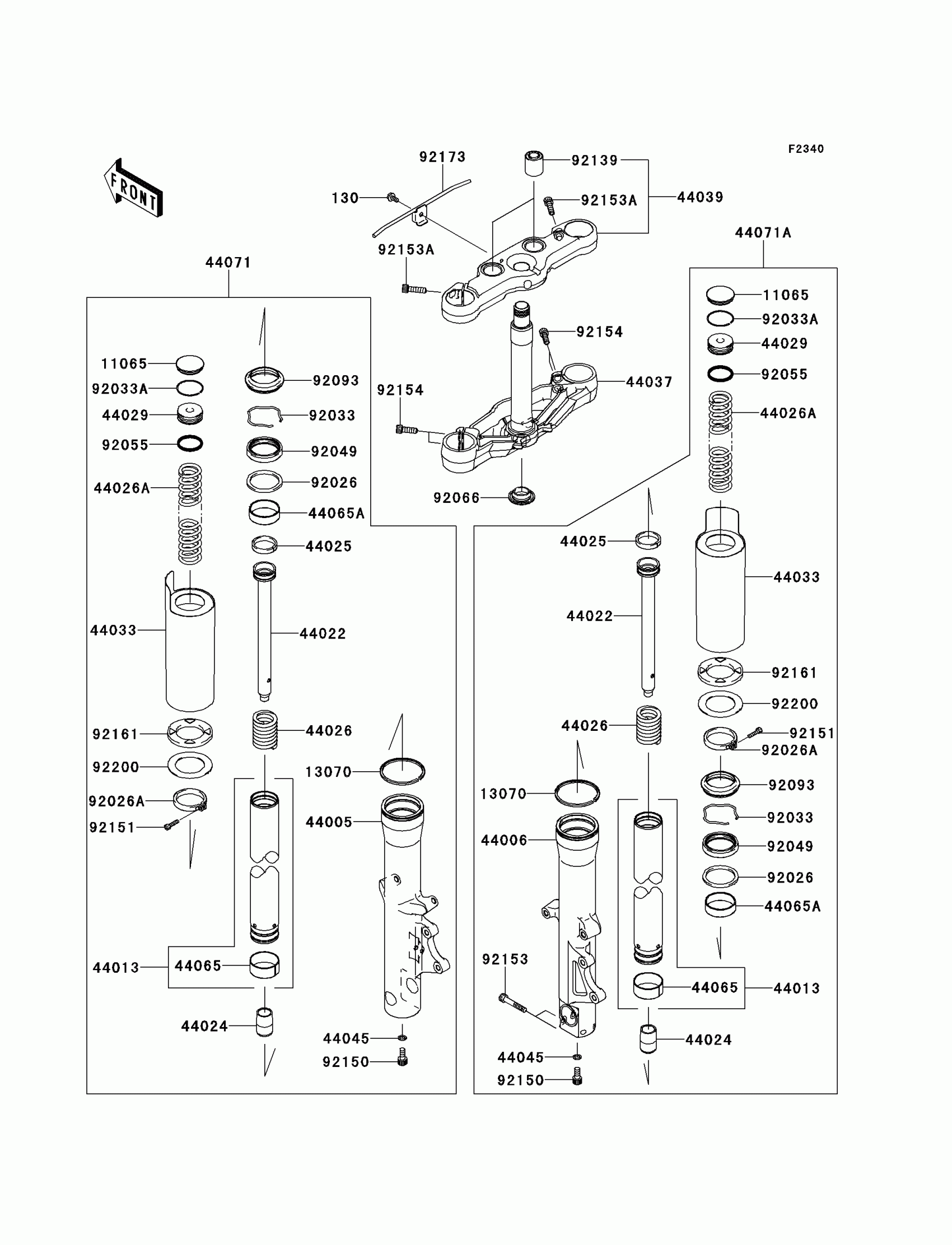

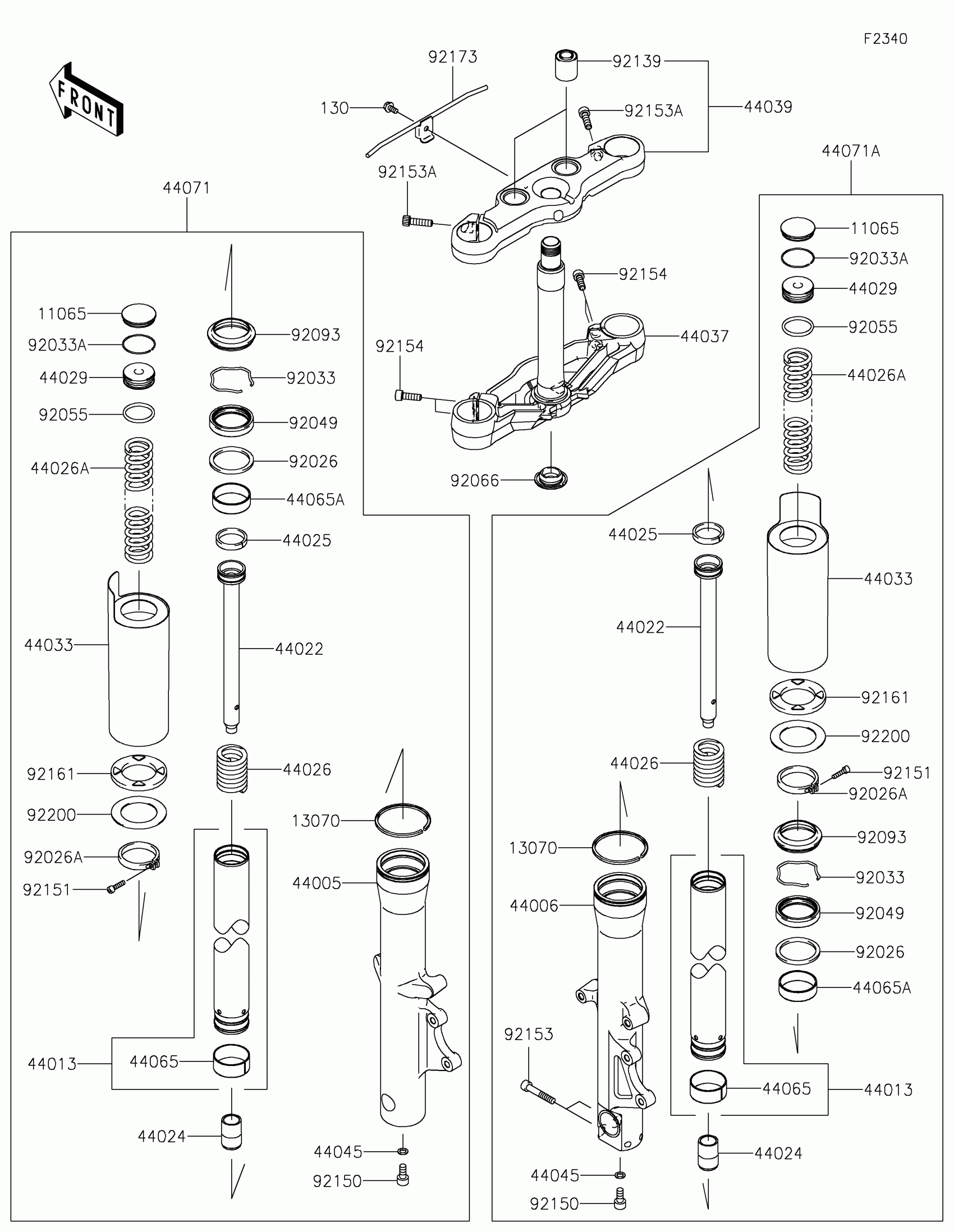

Find the part on the Front Fork diagram for your 2012 Kawasaki Vulcan® 1700 Voyager® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Voyager® ABS Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BB0612

1
Out of stock

11065

CAP,FORK TOP

11065-0279

1
Out of stock

13070

GUIDE,CASE

13070-0103

1
Out of stock

44005

PIPE-LEFT FORK OUTER

44005-0073

1
Out of stock

44006

PIPE-RIGHT FORK OUTER

44006-0067

1
Out of stock

44013

PIPE-FORK INNER

44013-0124

1
Out of stock

44022

CYLINDER-FORK

44022-0026

1
Out of stock

44024

CAP-OIL-LOCK

44024-0006

1
Out of stock

44025

RING-FORK PISTON

44025-0005

1
Out of stock

44026

SPRING-FRONT FORK

44026-0129

1
Out of stock

44026A

SPRING-FRONT FORK

44026-0138

1
Out of stock

44029

SEAT-FORK SPRING

44029-0012

1
Out of stock

44033

COVER-FORK

44033-0052

1
Out of stock

44037

HOLDER-FORK UNDER

44037-0086

1
Out of stock

44039

HOLDER-FORK UPPER

44039-0099

1
Out of stock

44045

GASKET,FORK CYLINDER BOLT

44045-051

1
Out of stock

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0023

1
Out of stock

44065A

BUSHING-FRONT FORK

44065-0024

1
Out of stock

44071

DAMPER-ASSY,FORK,LH

44071-0551

1
Out of stock

44071A

DAMPER-ASSY,FORK,RH

44071-0605

1
Out of stock

92026

SPACER

92026-0132

1
Out of stock

92026A

SPACER

92026-0133

1
Out of stock

92033

RING-SNAP

92033-0060

1
Out of stock

92033A

RING-SNAP

92033-1303

1
Out of stock

92049

SEAL-OIL

92049-0118

1
Out of stock

92055

RING-O

92055-0169

1
Out of stock

92066

PLUG

92066-0032

1
Out of stock

92093

SEAL,DUST

92093-0147

1
Out of stock

92139

BUSHING

92139-0285

1
Out of stock

92150

BOLT,SOCKET,8X18

92150-1432

1
Out of stock

92151

BOLT,SOCKET,4X16

92151-1356

1
Out of stock

92153

BOLT

92153-0499

1
Out of stock

92153A

BOLT,SOCKET,8X30

92153-0500

1
Out of stock

92154

BOLT,SOCKET

92154-0113

1
Out of stock

92161

DAMPER

92161-0683

1
Out of stock

92173

CLAMP

92173-0035

1
Out of stock

92200

WASHER

92200-0468

1
Out of stock
