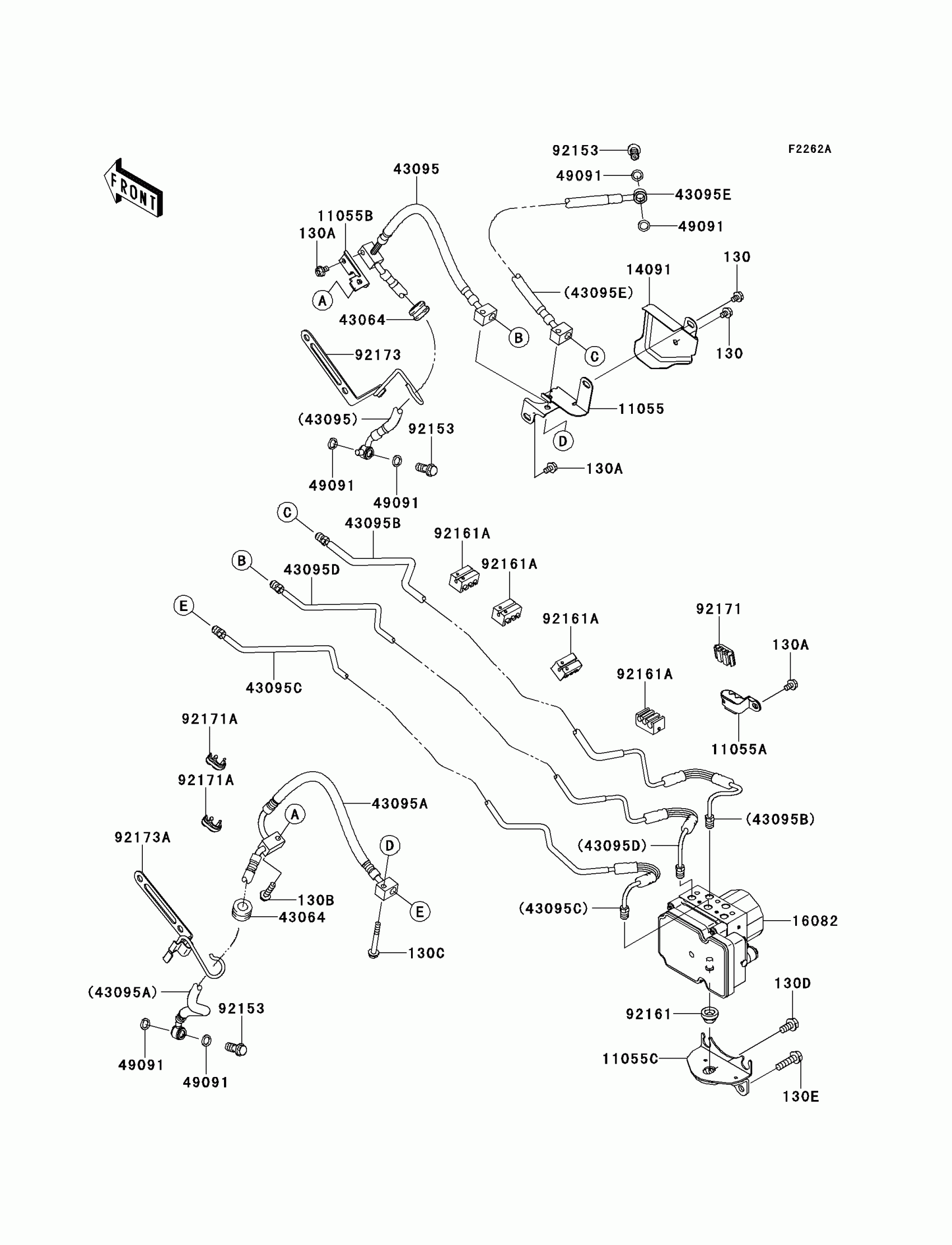

Kawasaki VULCAN® 1700 VOYAGER® ABS Brake Piping(BAF-BCF) Diagram

Description

Price

130

BOLT-FLANGED,6X8

130BA0608

$0.69

130A

BOLT-FLANGED,6X10

130BA0610

$1.12

130B

BOLT-FLANGED,6X30

130BA0630

$1.31

130C

BOLT-FLANGED,6X50

130BA0650

$0.97

130D

BOLT-FLANGED,8X16

130BA0816

$1.03

130E

BOLT-FLANGED,8X30

130BA0830

$1.68

11055

BRACKET

11055-0463

$16.46

11055A

BRACKET

11055-0787

$10.10

11055B

BRACKET,BRAKE HOSE

11055-1619

$11.44

11055C

BRACKET,ABS UNIT

11055-1826

$23.14

14091

COVER,ABS,F.S.BLACK

14091-0988-18R

$30.35

16082

PUMP-ASSY-OIL,WET TYPE

16082-0049

$1,604.47

43064

GROMMET,HOSE CLAMP

43064-006

$3.43

43095

HOSE-BRAKE,HU-FR CALIPER,RH

43095-0386

$87.35

43095A

HOSE-BRAKE,HU-FR CALIPER,LH

43095-0482

$87.35

43095B

HOSE-BRAKE,(M/CYLINDER)-HU

43095-0516

$138.35

43095C

HOSE-BRAKE,HU-(FR CALIPER,LH)

43095-0517

$138.35

43095D

HOSE-BRAKE,HU-(FR CALIPER,RH)

43095-0518

$138.35

43095E

HOSE-BRAKE,FR M/CYLINDER-(HU)

43095-0556

$83.38

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.81

92153

BOLT,OIL,L=23

92153-0627

$4.35

92161

DAMPER,ABS UNIT

92161-0282

$7.61

92161A

DAMPER

92161-0583

$5.19

92171

CLAMP

92171-1731

$2.59

92171A

CLAMP,BRAKE HOSE

92171-1819

$4.85

92173

CLAMP,FRONT FENDER,RH

92173-0074

$23.36

92173A

CLAMP,FRONT FENDER,LH

92173-0076

$32.67
