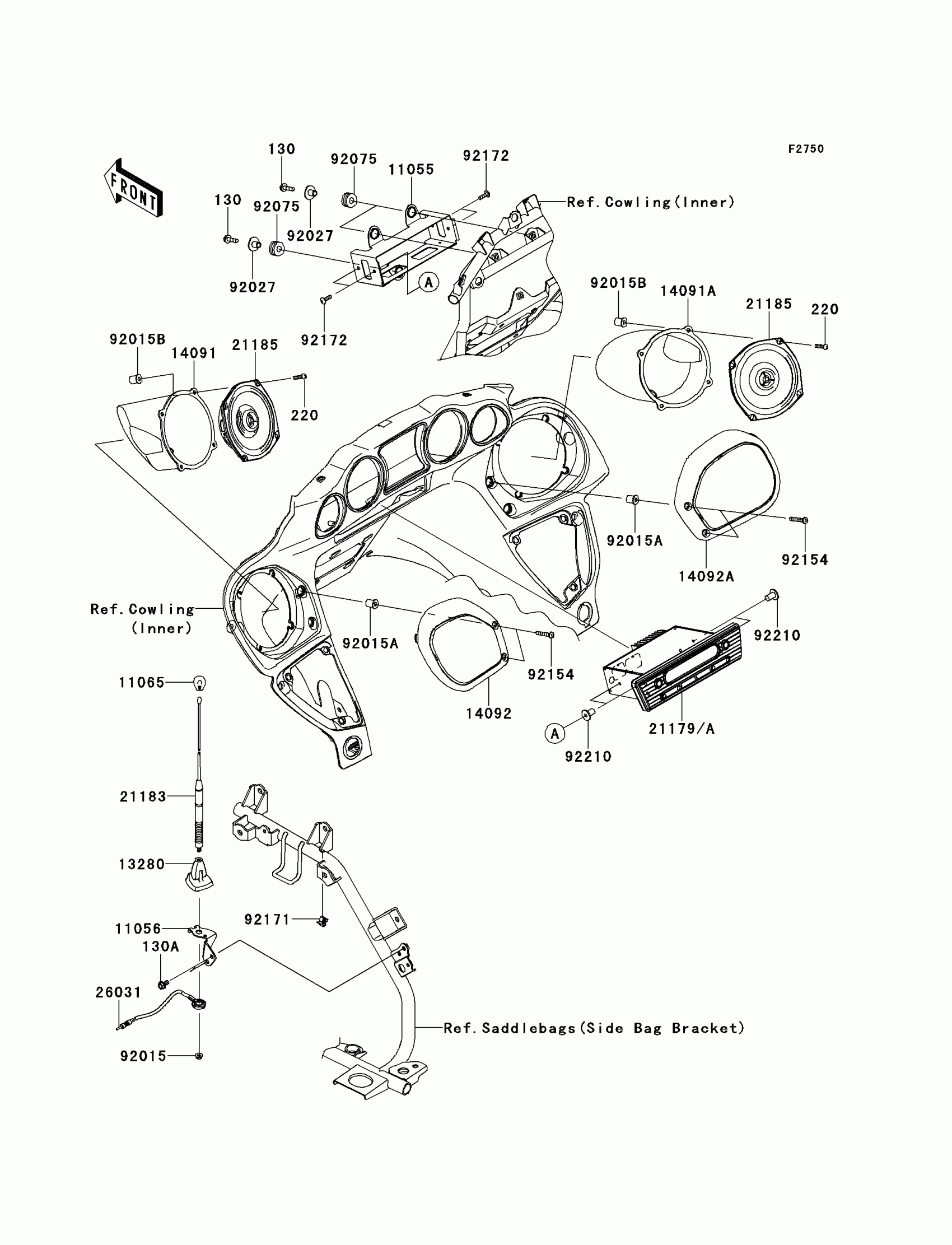

Kawasaki VULCAN® 1700 VAQUERO® Other(Audio) Diagram

Description

Price

130

BOLT-FLANGED,6X22

130BA0622

$1.00

130A

BOLT-FLANGED,6X14

130BB0614

$1.77

220

SCREW-PAN-CROS,5X20

220AB0520

$1.36

11055

BRACKET,AUDIO

11055-1510

$29.34

11056

BRACKET

11056-0380

$8.92

11065

CAP,ANTENNA

11065-0305

$3.78

13280

HOLDER,ANTENNA

13280-0285

$103.93

14091

COVER,SPEAKER BOX,LH

14091-1773

$29.08

14091A

COVER,SPEAKER BOX,RH

14091-1774

Unavailable

14092

COVER,SPEAKER,LH

14092-0813

$105.43

14092A

COVER,SPEAKER,RH

14092-0814

$105.43

21179A

RADIO-TUNER

21179-0060

$2,143.03

21183

ANTENNA

21183-0006

$162.45

21185

SPEAKER

21185-0001

$214.47

26031

HARNESS

26031-1096

$156.43

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92015A

NUT

92015-1700

$6.55

92015B

NUT,WELL,5MM

92015-1757

$5.58

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.67

92075

DAMPER,10X24X12

92075-1690

$3.81

92154

BOLT,SOCKET,6X30

92154-0206

$1.95

92171

CLAMP

92171-0834

Unavailable

92172

SCREW,5X18

92172-0428

$0.86

92210

NUT,WELL,5MM

92210-0532

$7.93
