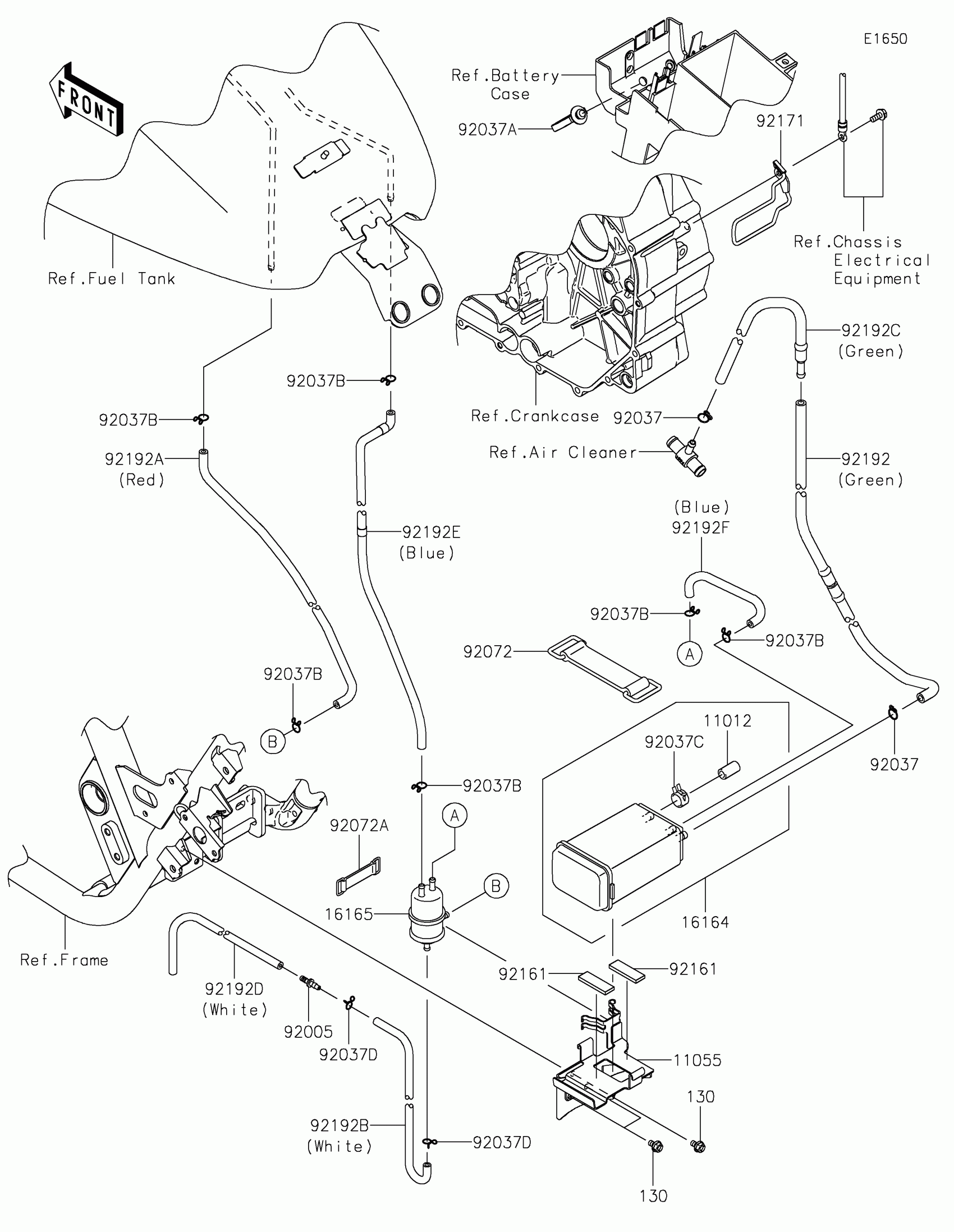

Kawasaki VULCAN® 1700 VAQUERO® ABS Fuel Evaporative System(CA) Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.31

11055

BRACKET

11055-1653

$69.88

16164

CANISTER

16164-0017

$132.79

16165

SEPARATOR

16165-1001

$81.73

92005

FITTING

92005-1206

$6.90

92037

CLAMP-HOSE

92037-1104

$1.27

92037A

CLAMP,CABLE

92037-1459

$20.18

92037B

CLAMP,TUBE

92037-147

$5.84

92037C

CLAMP,CANISTER

92037-1512

$5.71

92037D

CLAMP

92037-1712

$3.97

92072

BAND

92072-1384

$10.88

92072A

BAND,L=50

92072-1419

$12.72

92161

DAMPER

92161-0124

$2.76

92171

CLAMP

92171-1798

$20.56

92192

TUBE,CANISTER-1ST FTG,GREEN

92192-0657

$100.62

92192A

TUBE,SEPARATOR-TANK,RED

92192-0660

$103.02

92192B

TUBE,FITTING-SEP.WHITE

92192-0692

$13.54

92192C

TUBE,1ST FTG-2ND FTG,GREEN

92192-0760

$46.36

92192D

TUBE,THROBO-FITTING,WHITE

92192-0761

$5.71

92192E

TUBE,TANK-SEPARATOR,BLUE

92192-0799

$84.11

130

BOLT-FLANGED,6X10

130BB0610

$2.05

92192F

TUBE,CANISTER-SEPARATOR,BLUE

92192-0824

$41.04
