2012 Kawasaki Vulcan® 1700 Nomad™ Footrests Diagram

← All diagrams

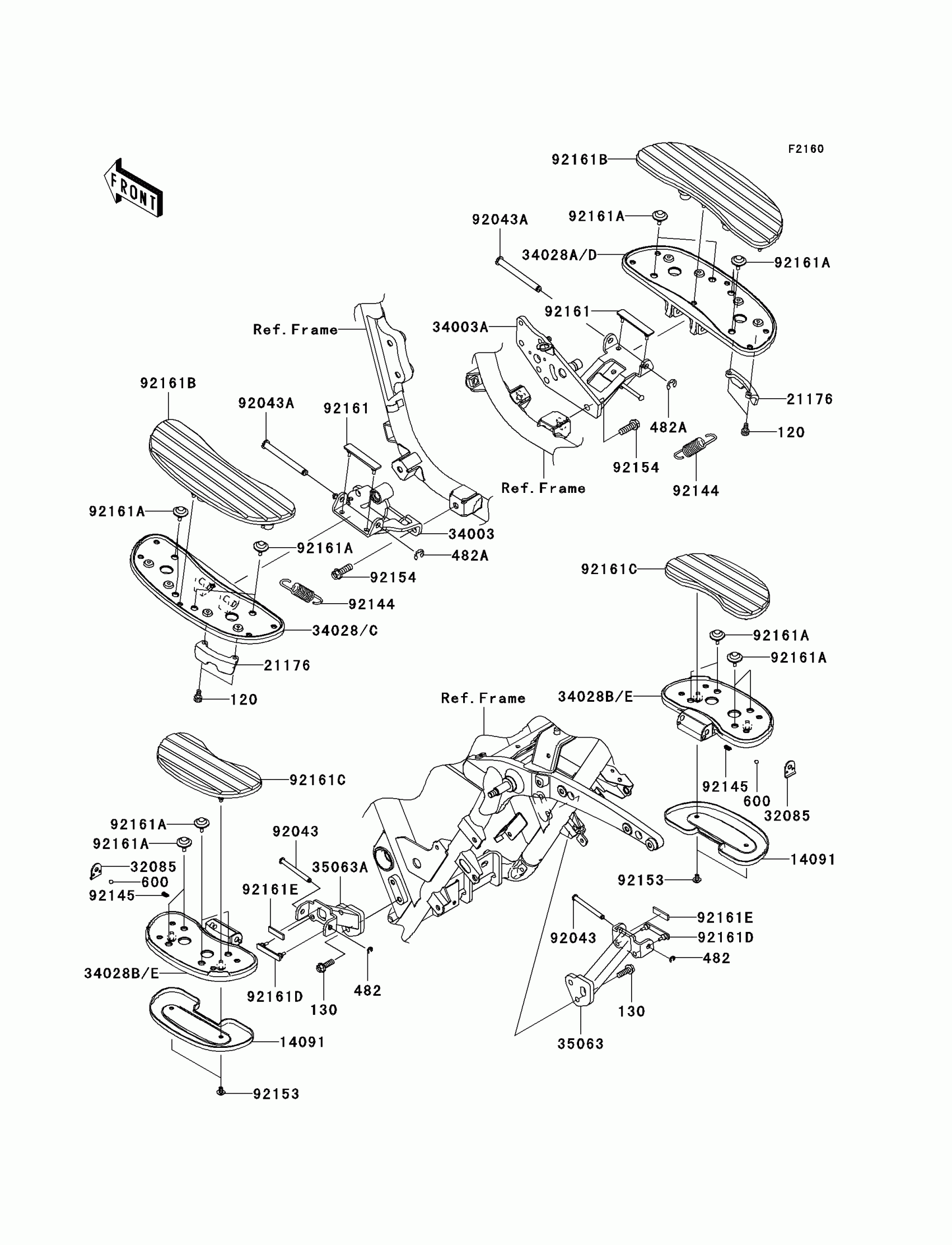

Find the part on the Footrests diagram for your 2012 Kawasaki Vulcan® 1700 Nomad™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Nomad™ Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X16

120CB0616

1
Out of stock

130

BOLT-FLANGED,8X25

130BB0825

1

$3.53

In stock

482

CIRCLIP-TYPE-E

482EA7000

1
Out of stock

482A

CIRCLIP-TYPE-E,8MM

482EA8000

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock

14091

COVER,REAR STEP

14091-1808

1
Out of stock

21176

SENSOR,BANK

21176-0123

1
Out of stock

32085

STOPPER,REAR STEP

32085-0045

1
Out of stock

34003

HOLDER-STEP,FR,LH,F.S.BLACK

34003-0102-18R

1
Out of stock

34003A

HOLDER-STEP,FR,RH,F.S.BLACK

34003-0103-18R

1
Out of stock

34028C

STEP,FR,LH

34028-0143

1

$112.75

In stock

34028D

STEP,FR,RH

34028-0144

1

$112.75

In stock

34028E

STEP,RR

34028-0145

1

$61.11

In stock

35063

STAY,RR,RH,F.S.BLACK

35063-0649-18R

1
Out of stock

35063A

STAY,RR,LH,F.S.BLACK

35063-0669-18R

1
Out of stock

92043

PIN,8X76.5

92043-0054

1
Out of stock

92043A

PIN,10X98.5

92043-1707

1
Out of stock

92144

SPRING

92144-1266

1
Out of stock

92145

SPRING

92145-1319

1
Out of stock

92153

BOLT,SOCKET,6X10

92153-1096

1
Out of stock

92154

BOLT,FLANGED,10X30

92154-0284

1
Out of stock

92161

DAMPER,STEP HOLDER

92161-0746

1
Out of stock

92161A

DAMPER,STEP

92161-0766

1
Out of stock

92161B

DAMPER,FOOT BOARD

92161-0770

1
Out of stock

92161C

DAMPER,REAR STEP

92161-0771

1
Out of stock

92161D

DAMPER,REAR STEP

92161-0772

1
Out of stock

92161E

DAMPER,10X35X3

92161-0840

1
Out of stock
