2014 Kawasaki Vulcan® 1700 Nomad™ ABS Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2014 Kawasaki Vulcan® 1700 Nomad™ ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

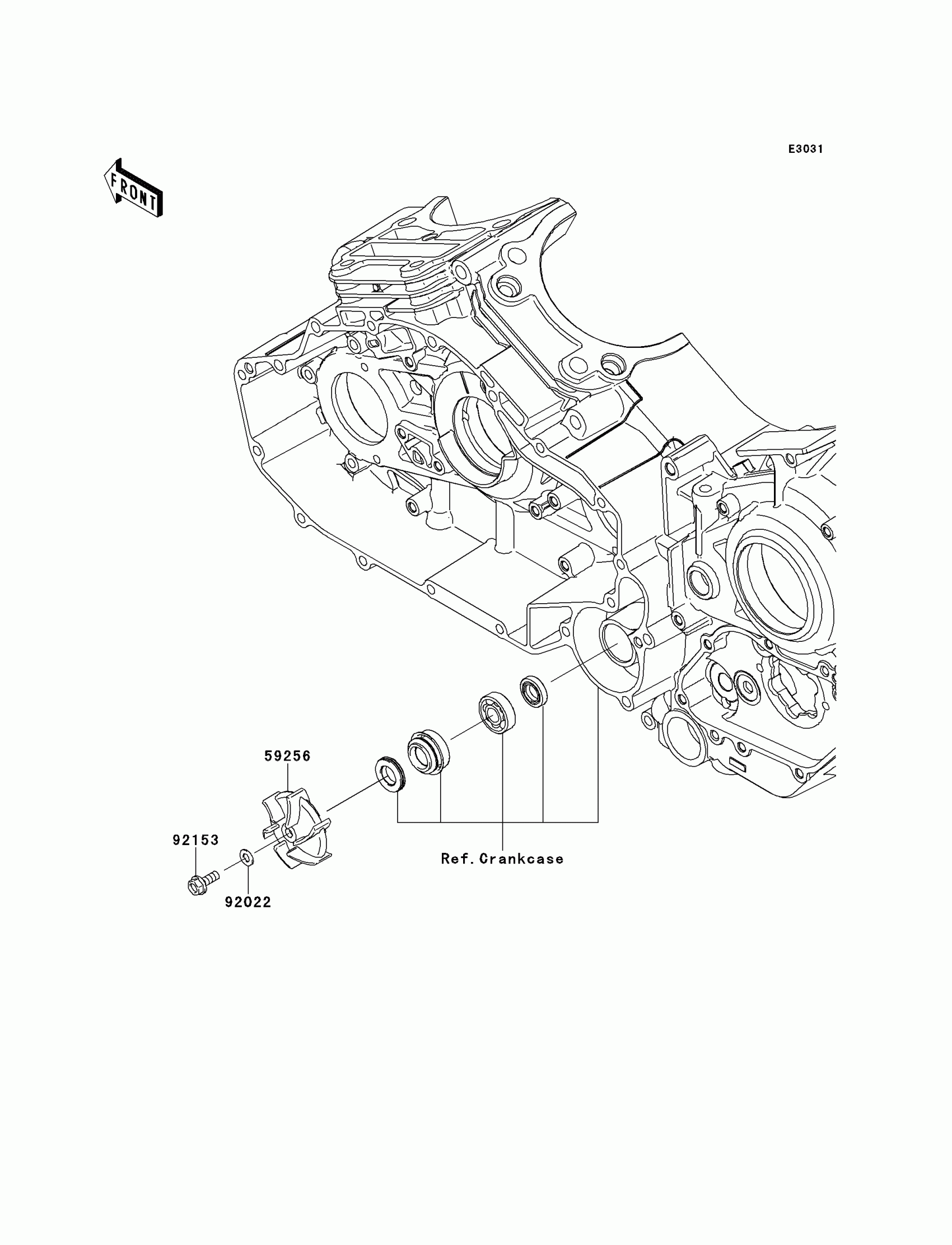

2014 Kawasaki Vulcan® 1700 Nomad™ ABS Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

59256

IMPELLER

59256-0002

1

$41.92

In stock

92022

1

$3.13

In stock

92153

BOLT,LEFT HANDED,6X16

92153-0323

1
Out of stock
