2014 Kawasaki Vulcan® 1700 Nomad™ ABS Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2014 Kawasaki Vulcan® 1700 Nomad™ ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

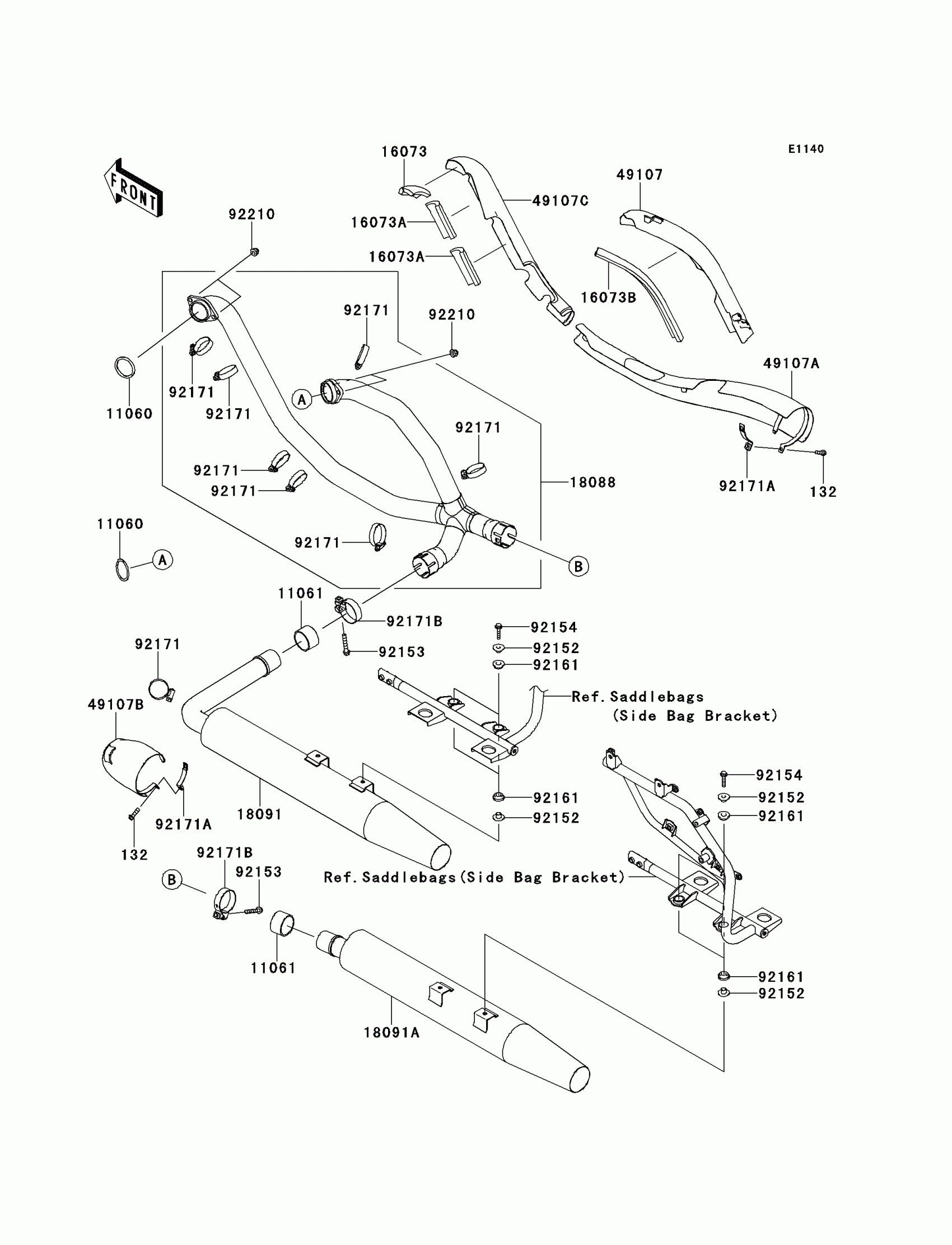

2014 Kawasaki Vulcan® 1700 Nomad™ ABS Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$0.94

In stock

11060

GASKET,EXHAUST PIPE

11060-1119

1

$7.60

In stock

11061

1

$31.63

In stock

16073

INSULATOR

16073-0125

1

$11.32

In stock

16073A

INSULATOR

16073-0126

1

$14.08

In stock

16073B

INSULATOR

16073-0128

1

$55.23

In stock

18088

PIPE-EXHAUST

18088-0414

1

$687.79

In stock

18091

1

$1,054.76

In stock

18091A

1

$1,054.76

In stock

49107

1

$230.55

In stock

49107A

1

$380.61

In stock

49107B

1

$205.05

In stock

49107C

1

$321.03

In stock

92152

COLLAR,8.8X12X10.6

92152-0082

1

$9.18

In stock

92153

BOLT,8X45

92153-0702

1
Out of stock

92154

BOLT,FLANGED,8X32

92154-0136

1

$2.10

In stock

92161

DAMPER

92161-0135

1

$2.76

In stock

92171

CLAMP

92171-0072

1

$9.42

In stock

92171A

CLAMP

92171-0294

1

$14.76

In stock

92171B

CLAMP

92171-0358

1

$25.08

In stock

92210

NUT,CAP,8MM

92210-1132

1
Out of stock
