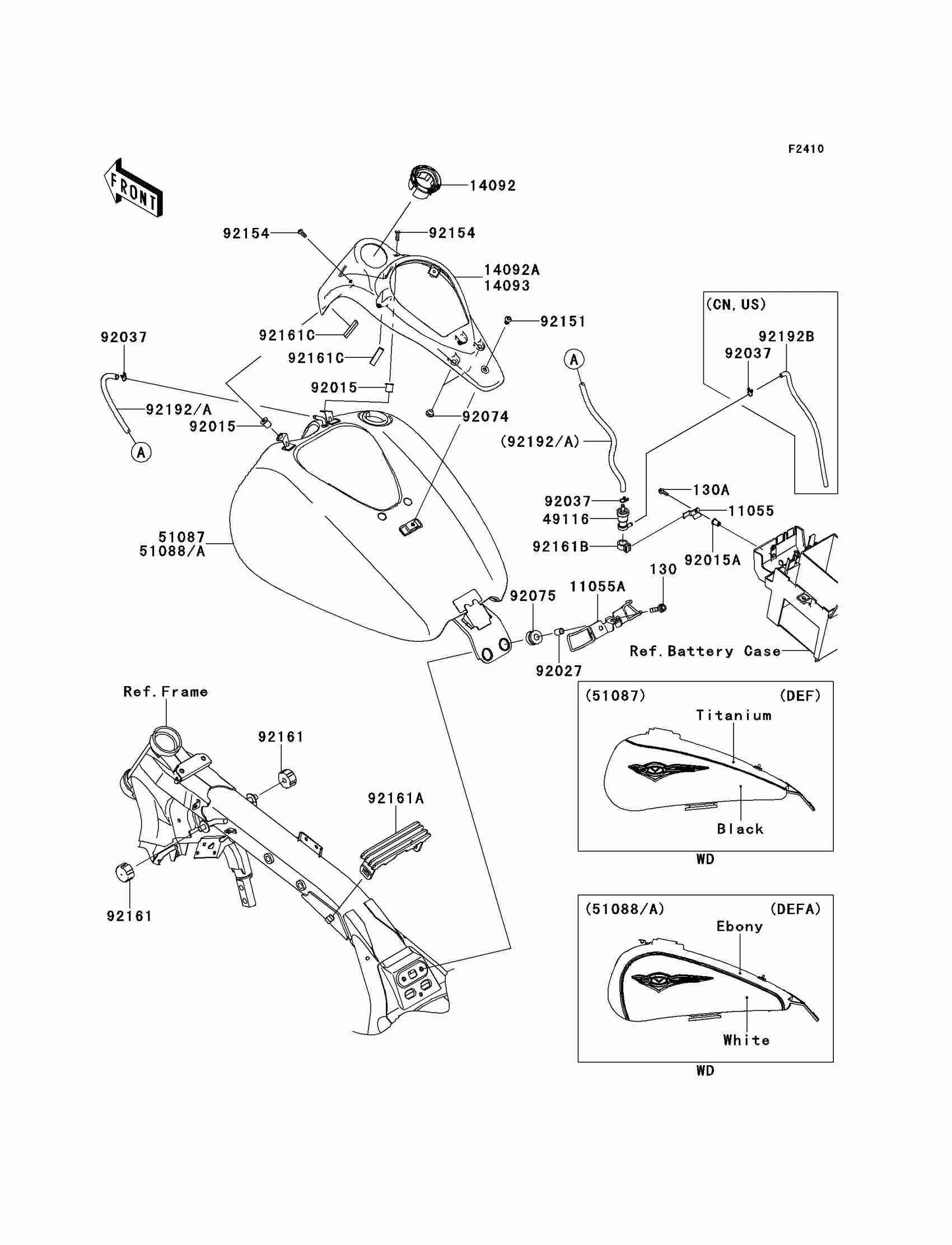

Kawasaki VULCAN® 1700 NOMAD™ ABS Fuel Tank Diagram

Description

Price

130

BOLT-FLANGED,8X30

130BA0830

$1.44

130A

BOLT-FLANGED,5X16

130BB0516

$1.73

11055

BRACKET,CHECK VALVE

11055-1512

$7.73

11055A

BRACKET,SEAT

11055-1552

$37.49

14092

COVER,IGNITION SWITCH

14092-0046

$48.79

14093

COVER,METER

14093-0009

$250.55

49116

VALVE-ASSY,CHECK

49116-0014

$47.25

92015

NUT

92015-1700

$6.55

92015A

NUT,WELL,5MM

92015-1757

$5.58

92027

COLLAR,8.8X12X17

92027-034

$7.15

92074

PLUG,7X2

92074-028

$3.81

92075

DAMPER

92075-1736

$4.93

92151

BOLT,SOCKET,6X10

92151-1449

$1.57

92154

BOLT,SOCKET,6X16

92154-0242

$3.14

92161

DAMPER,FUEL TANK

92161-0293

$5.98

92161A

DAMPER,FUEL TANK

92161-0577

$28.89

92161B

DAMPER,CHECK VALVE

92161-0744

$4.00

92161C

DAMPER,10X40X7

92161-1502

$1.44

51088

TANK-COMP-FUEL,EBONY/WHITE

51088-5298-46L

$2,050.44

51088A

TANK-COMP-FUEL,EBONY/WHITE

51088-5314-46L

$2,050.44

92037

CLAMP,TUBE

92037-147

$5.61

92037

CLAMP,TUBE

92037-147

$5.61

92192

TUBE,5X10X980

92192-0829

$15.19

92192A

TUBE,5X10X980

92192-0830

$84.06

92192B

TUBE

92192-0837

$9.08
