2012 Kawasaki Vulcan® 1700 Classic Owner's Tools Diagram

← All diagrams

Find the part on the Owner's Tools diagram for your 2012 Kawasaki Vulcan® 1700 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

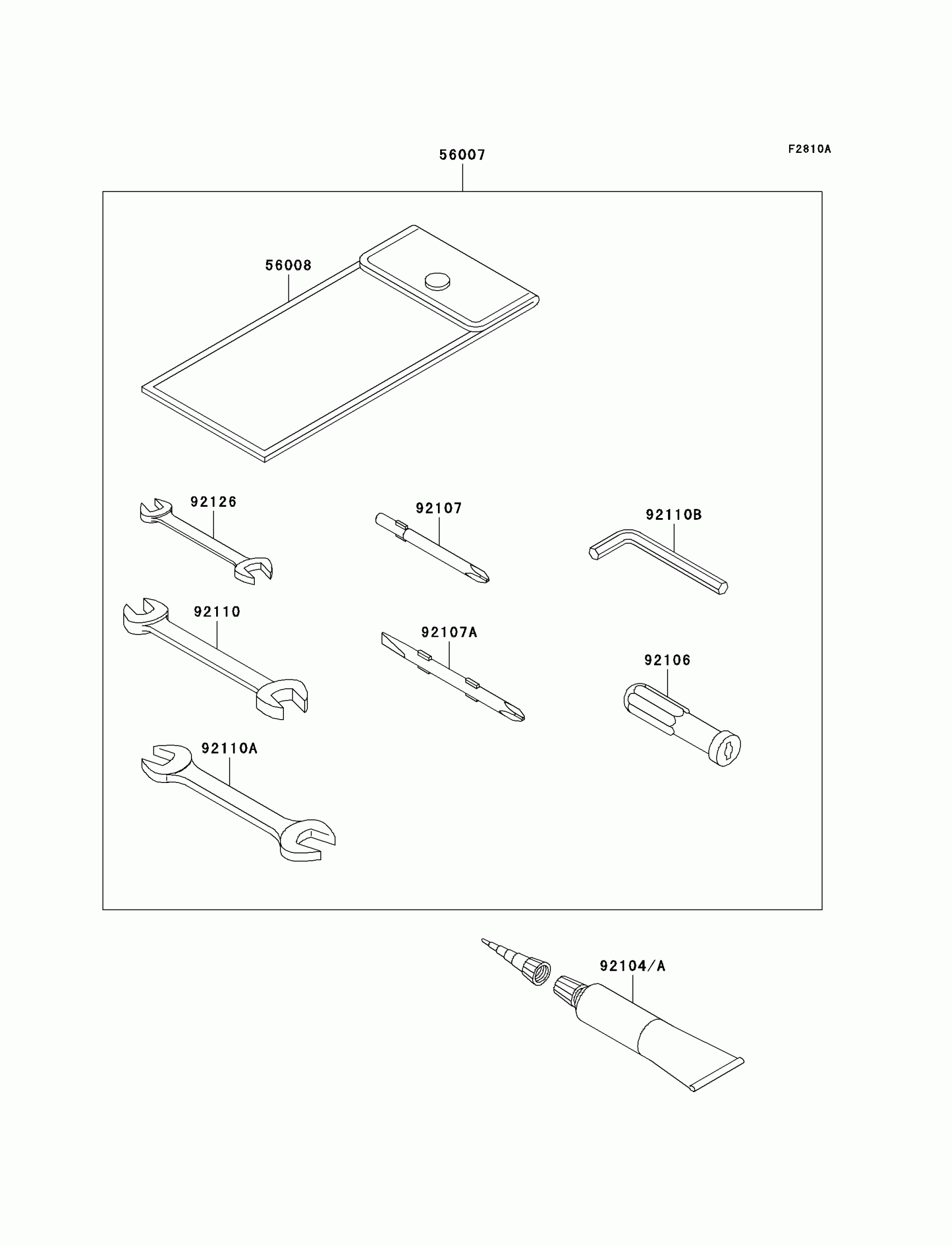

2012 Kawasaki Vulcan® 1700 Classic Owner's Tools Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56007

TOOL-KIT

56007-0085

1
Out of stock

56008

BAG,TOOL

56008-0001

1
Out of stock

92104

GASKET-LIQUID,TB1211F,CLEAR

92104-0004

1
Out of stock

92104A

GASKET-LIQUID,TB1216B,BLACK

92104-1064

1
Out of stock

92106

GRIP-SCREW DRIVER

92106-1001

1
Out of stock

92107

TOOL-DRIVER,#3PHILLIPS

92107-005

1
Out of stock

92107A

TOOL-DRIVER,#2PHILLIPS&SLOT

92107-1051

1
Out of stock

92110

TOOL-WRENCH,OPEN END,10X12

92110-1152

1
Out of stock

92110A

TOOL-WRENCH,OPEN END,14X17

92110-1153

1
Out of stock

92110B

TOOL-WRENCH,ALLEN,4MM

92110-3703

1
Out of stock

92126

TOOL-WRENCH,OPEN END,8X10

92126-004

1
Out of stock
