2009 Kawasaki Vulcan® 1700 Classic Owner's Tools Diagram

← All diagrams

Find the part on the Owner's Tools diagram for your 2009 Kawasaki Vulcan® 1700 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

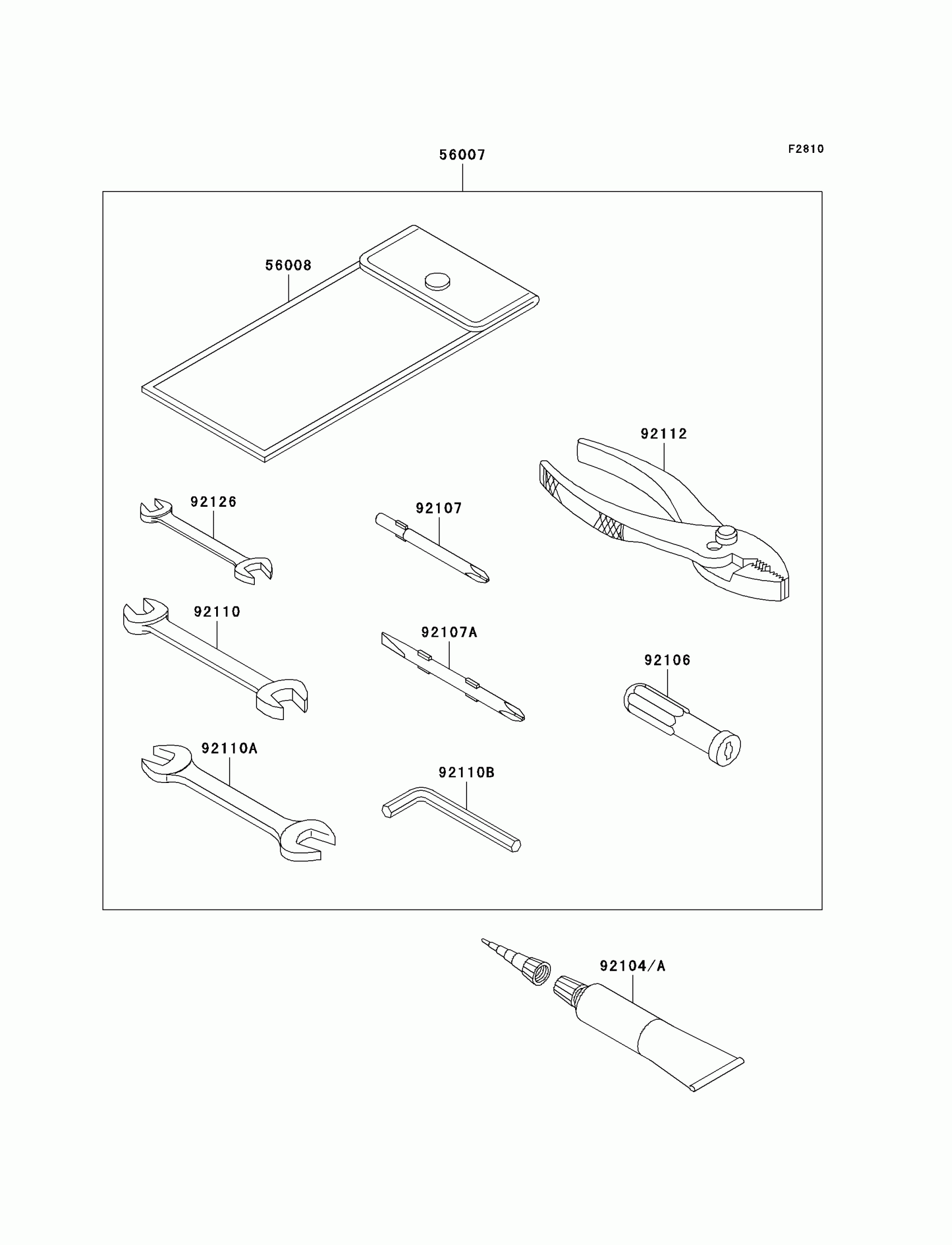

2009 Kawasaki Vulcan® 1700 Classic Owner's Tools Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56007

TOOL-KIT

56007-0072

1

$142.51

In stock

56008

BAG,TOOL

56008-0001

1

$24.46

In stock

92104

1

$87.28

In stock

92104A

1

$100.50

In stock

92106

GRIP-SCREW DRIVER

92106-1001

1

$10.19

In stock

92107

TOOL-DRIVER,#3PHILLIPS

92107-005

1
Out of stock

92107A

1

$7.72

In stock

92110

1

$19.66

In stock

92110A

1

$17.39

In stock

92110B

1

$3.85

In stock

92112

TOOL-PLIERS

92112-1001

1
Out of stock

92126

TOOL-WRENCH,OPEN END,8X10

92126-004

1
Out of stock
