2010 Kawasaki Vulcan® 1700 Classic LT Water Pipe Diagram

← All diagrams

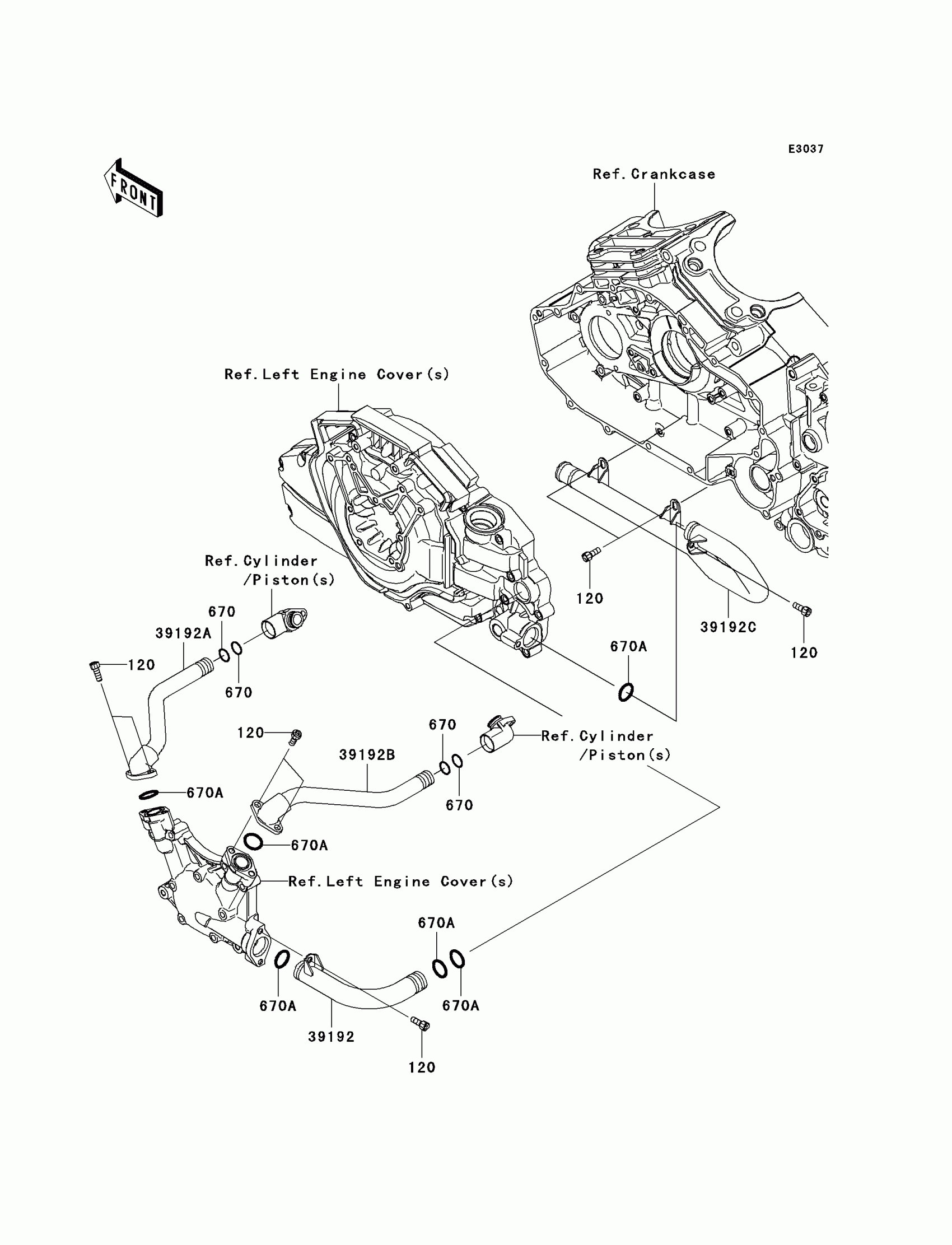

Find the part on the Water Pipe diagram for your 2010 Kawasaki Vulcan® 1700 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Vulcan® 1700 Classic LT Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X16

120CA0616

1
Out of stock

670

O RING,14MM

670B2014

1
Out of stock

670A

O RING,18MM

670B2018

1
Out of stock

39192

PIPE-WATER,COVER-W/P

39192-0094

1
Out of stock

39192A

PIPE-WATER,COVER-FR CYL.

39192-0095

1
Out of stock

39192B

PIPE-WATER,COVER-RR CYL.

39192-0096

1
Out of stock

39192C

PIPE-WATER,W/P INLET

39192-0133

1
Out of stock
