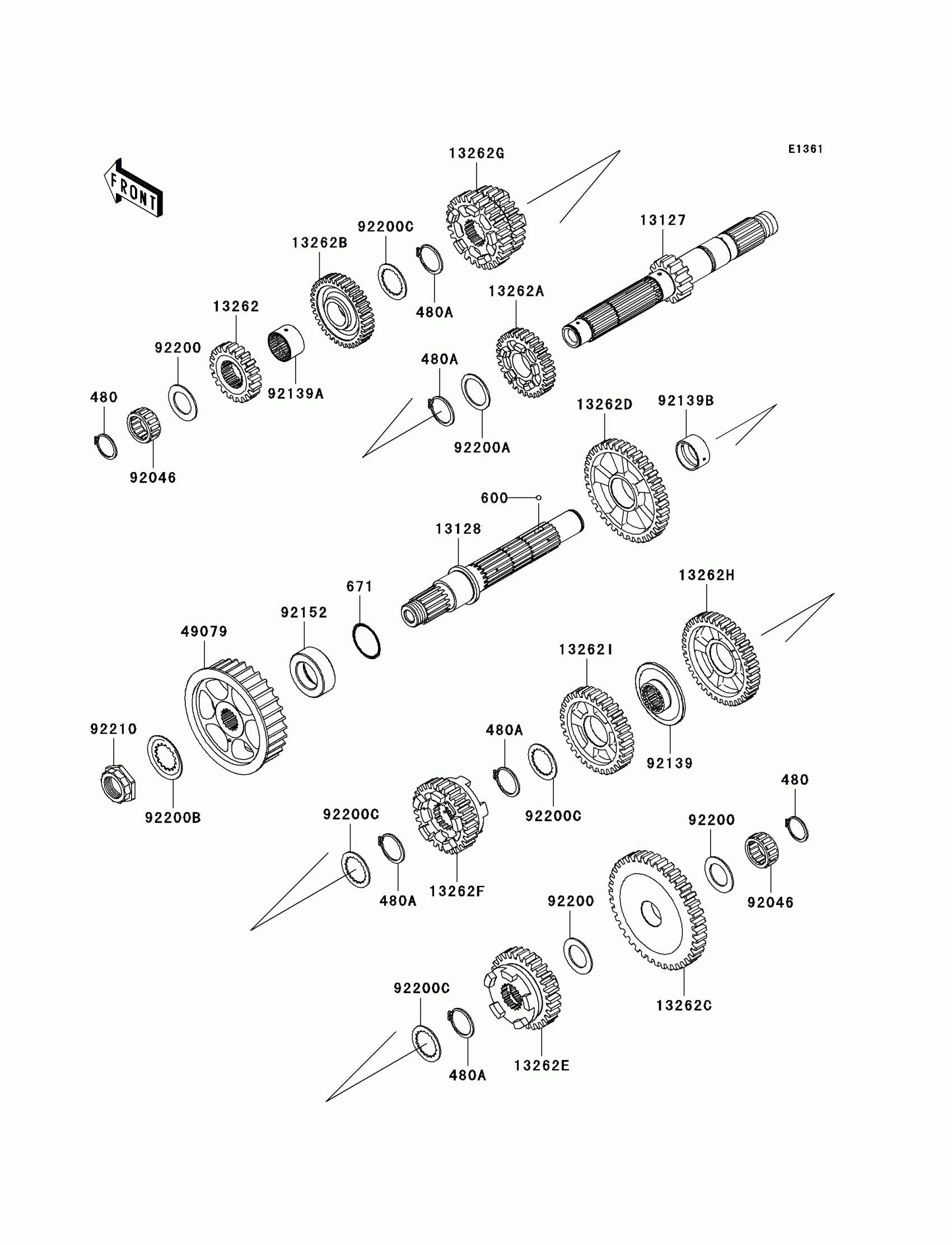

Kawasaki Vulcan® 1700 Classic LT Transmission Diagram

#

Description
Price

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.47

480A

CIRCLIP

480J2900

$5.42

600

BALL-STEEL,5/32

600A0500

$0.68

671

O RING

671D2535

$4.67

13127

SHAFT-TRANSMISSION INPUT

13127-0059

$483.13

13128

SHAFT-TRANSMISSION OUTPUT

13128-0057

$453.59

13262

GEAR,INPUT 2ND,20T

13262-0603

$146.93

13262A

GEAR,INPUT 5TH,30T

13262-0605

$146.93

13262B

GEAR,INPUT 6TH,36T

13262-0606

$128.42

13262C

GEAR,OUTPUT LOW,40T

13262-0607

Unavailable

13262D

GEAR,OUTPUT 2ND,38T

13262-0608

$164.38

13262E

GEAR,OUTPUT 5TH,29T

13262-0611

$146.93

13262F

GEAR,OUTPUT 6TH,29T

13262-0612

$146.93

13262G

GEAR,INPUT 3RD&4TH,27T&28T

13262-0739

$156.84

13262H

GEAR,OUTPUT 3RD,38T

13262-0740

$164.38

13262I

GEAR,OUTPUT 4TH,32T

13262-0741

$164.38

49079

PULLEY-BELT

49079-0020

$120.07

92046

BEARING-NEEDLE,KT 253515E02 C3

92046-0007

$21.73

92139

BUSHING,OUTPUT 3RD-4TH GEAR

92139-0007

$92.48

92139A

BUSHING,INPUT TOP GEAR

92139-0236

$51.06

92139B

BUSHING,OUTPUT 2ND GEAR

92139-0237

$51.06

92152

COLLAR,30X50X17.5

92152-0657

$35.79

92200

WASHER,25.3X40X1.6

92200-0427

$4.85

92200A

WASHER,30.3X40X1.5

92200-0428

$5.75

92200B

WASHER,31X50X1

92200-0505

$3.27

92200C

WASHER,30.3X40X1.5

92200-1381

$12.03

92210

NUT,25MM

92210-0554

$39.26
