2010 Kawasaki Vulcan® 1700 Classic LT Muffler Diagram

← All diagrams

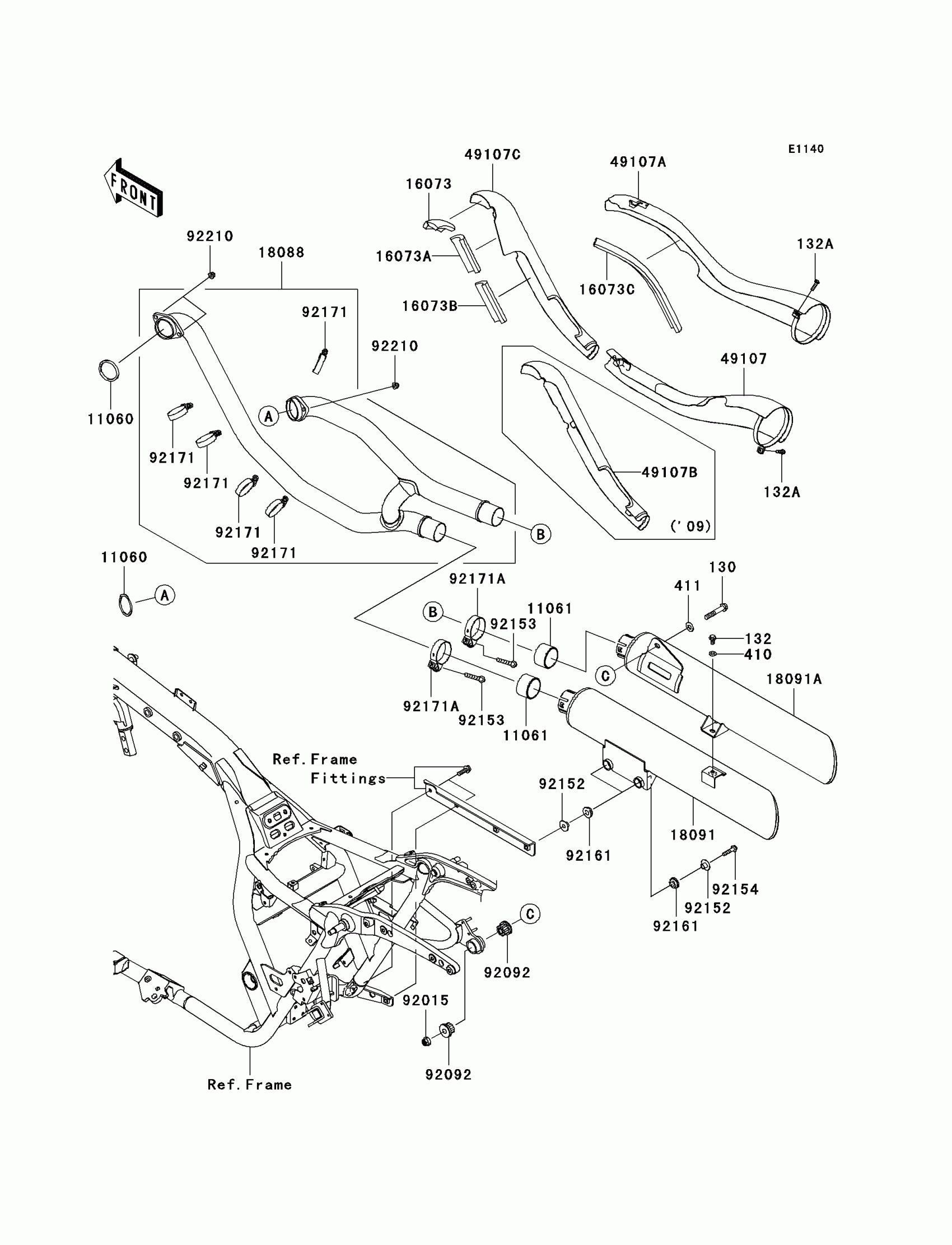

Find the part on the Muffler diagram for your 2010 Kawasaki Vulcan® 1700 Classic LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Vulcan® 1700 Classic LT Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,10X55

130BB1055

1

$5.28

In stock

132

1

$2.20

In stock

132A

1

$0.94

In stock

410

1

$3.68

In stock

411

1

$3.68

In stock

11060

GASKET,EXHAUST PIPE

11060-1119

1

$7.60

In stock

11061

1

$31.63

In stock

16073

INSULATOR

16073-0125

1

$11.32

In stock

16073A

INSULATOR

16073-0126

1

$14.08

In stock

16073B

INSULATOR

16073-0127

1

$17.14

In stock

16073C

INSULATOR

16073-0128

1

$55.23

In stock

18088

PIPE-EXHAUST

18088-0456

1

$720.95

In stock

18091

BODY-COMP-MUFFLER,LWR

18091-0538

1
Out of stock

18091A

1

$1,073.35

In stock

49107

COVER-EXHAUST PIPE,FR-R

49107-0139

1
Out of stock

49107A

1

$357.93

In stock

49107C

1

$304.98

In stock

92015

NUT,FLANGED,10MM

92015-077

1
Out of stock

92092

1

$13.70

In stock

92152

COLLAR,8.8X12X10.6

92152-0082

1

$9.18

In stock

92153

BOLT,8X45

92153-0702

1
Out of stock

92154

BOLT,FLANGED,8X32

92154-0136

1

$2.10

In stock

92161

DAMPER

92161-0135

1

$2.76

In stock

92171

CLAMP

92171-0072

1

$9.42

In stock

92171A

CLAMP

92171-0358

1

$25.08

In stock

92210

NUT,CAP,8MM

92210-1132

1
Out of stock
