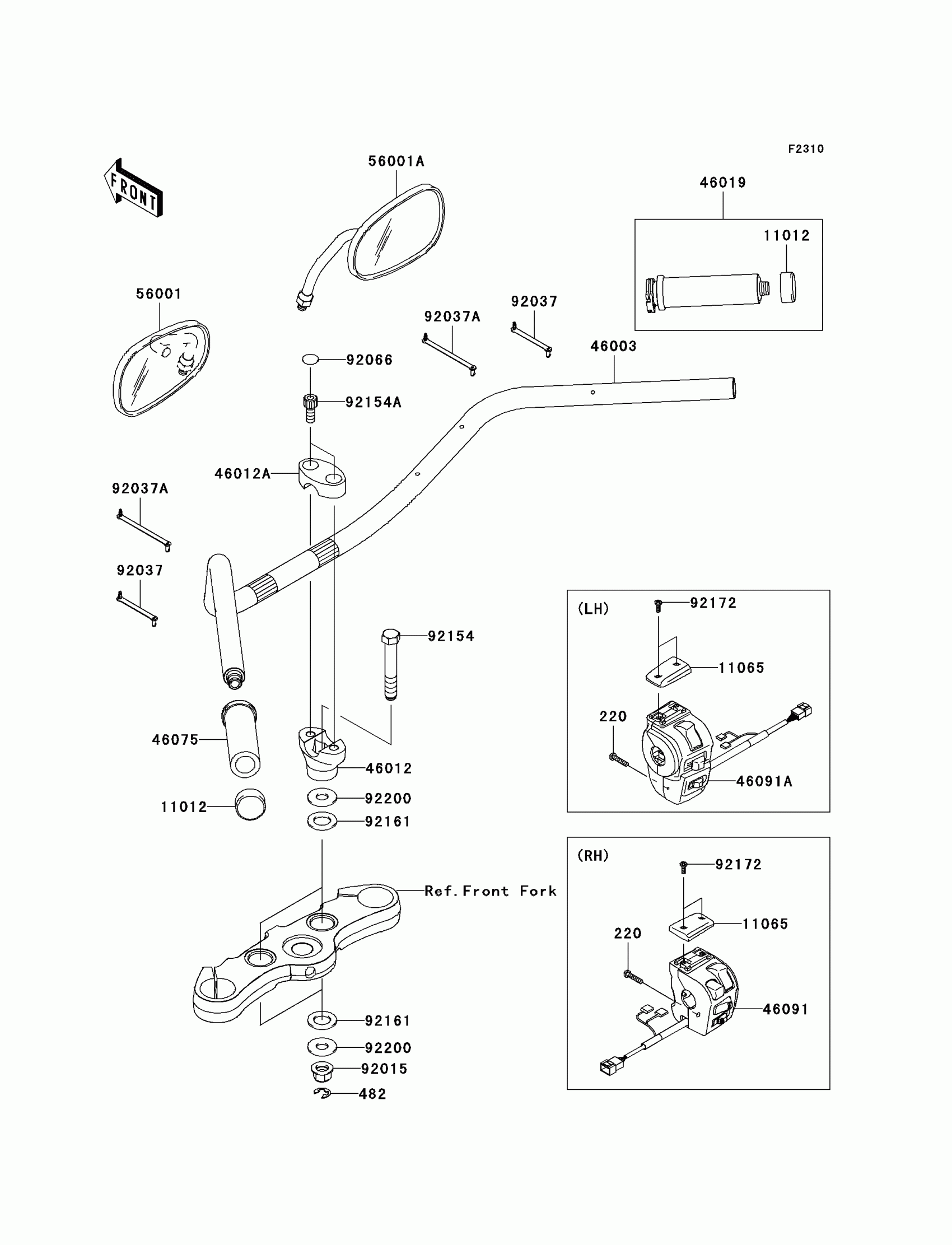

Kawasaki VULCAN® 1700 CLASSIC Handlebar Diagram

Description

Price

220

SCREW-PAN-CROS,5X25

220AB0525

$2.66

482

CIRCLIP-TYPE-E,10MM

482EA0100

$0.85

11012

CAP,GRIP END

11012-1975

$16.55

11065

CAP,HOUSING SWITCH

11065-0310

$24.56

46003

HANDLE

46003-0183

$224.68

46012

HOLDER-HANDLE,LWR

46012-0078

$126.56

46012A

HOLDER-HANDLE,UPP

46012-1273

$52.72

46019

GRIP-ASSY,THROTTLE

46019-1109

$62.08

46075

GRIP,LH

46075-1074

$19.86

46091

HOUSING-ASSY-CONTROL,RH

46091-0167

$398.92

46091A

HOUSING-ASSY-CONTROL,LH

46091-0170

$322.38

56001

MIRROR-ASSY,LH

56001-0032

$67.24

56001A

MIRROR-ASSY,RH

56001-0033

$67.24

92015

NUT,FLANGED,14MM

92015-1401

$8.66

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92037A

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92066

PLUG

92066-1285

$5.93

92154

BOLT,UPSET,14X87

92154-0279

$20.75

92154A

BOLT,SOCKET,10X25

92154-0350

$4.14

92161

DAMPER,18X35X2.2

92161-0836

$2.23

92172

SCREW,4X12

92172-0421

$1.54

92200

WASHER,14.2X35X2.3

92200-0534

$3.12
