2012 Kawasaki Vulcan® 1700 Classic Footrests Diagram

← All diagrams

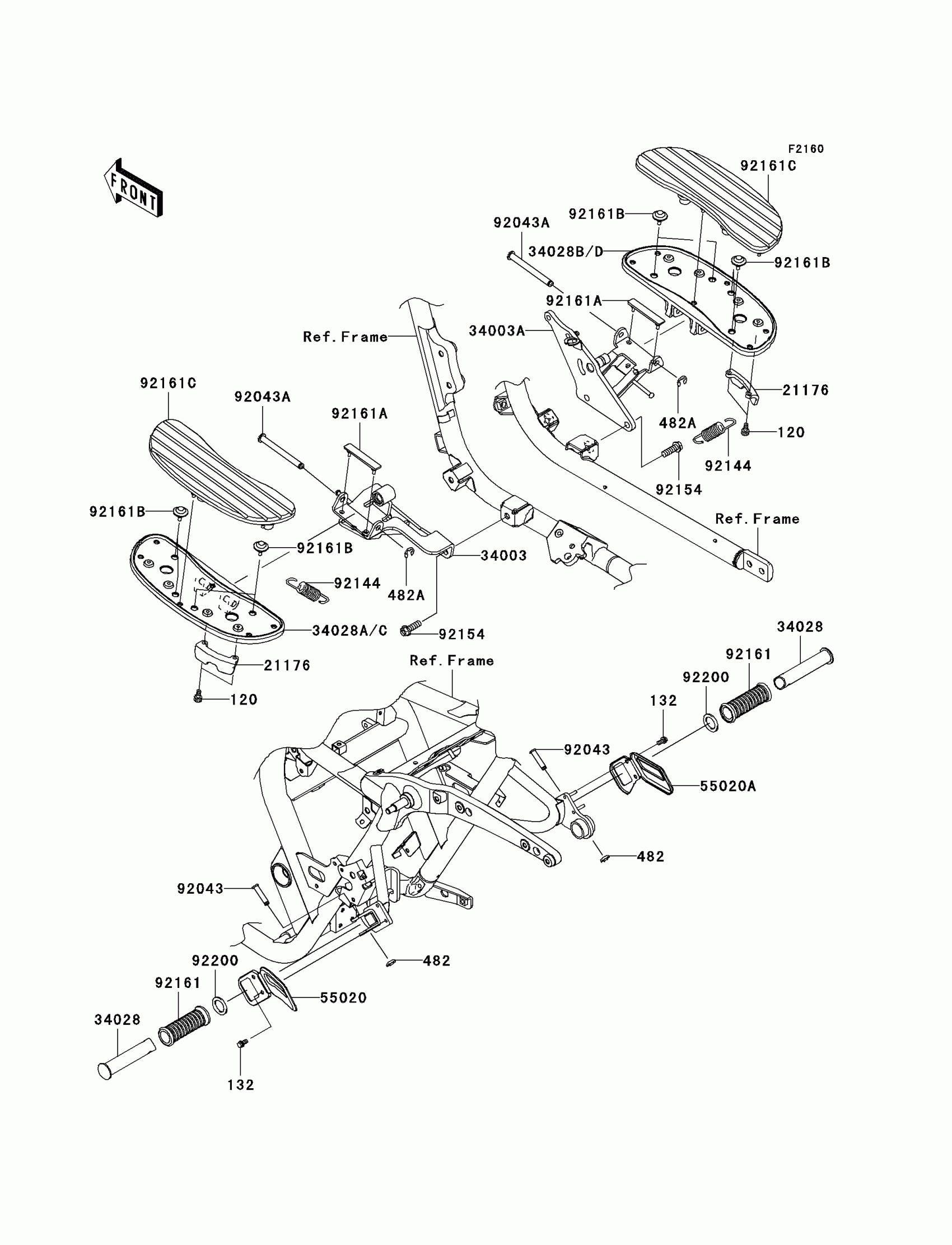

Find the part on the Footrests diagram for your 2012 Kawasaki Vulcan® 1700 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Classic Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X16

120CB0616

1
Out of stock

132

1

$1.73

In stock

482

CIRCLIP-TYPE-E

482EA7000

1
Out of stock

482A

CIRCLIP-TYPE-E,8MM

482EA8000

1
Out of stock

21176

SENSOR,BANK

21176-0123

1
Out of stock

34003

HOLDER-STEP,FR,LH,F.S.BLACK

34003-0085-18R

1
Out of stock

34003A

HOLDER-STEP,FR,RH,F.S.BLACK

34003-0086-18R

1
Out of stock

34028

STEP,RR

34028-0017

1

$21.92

In stock

34028C

STEP,FR,LH

34028-0143

1

$112.75

In stock

34028D

STEP,FR,RH

34028-0144

1

$112.75

In stock

55020

GUARD,STEP,LH,F.S.BLACK

55020-0485-18R

1

$15.34

In stock

55020A

GUARD,STEP,RH,F.S.BLACK

55020-0486-18R

1

$15.34

In stock

92043

PIN,8X36.5

92043-1339

1
Out of stock

92043A

PIN,10X98.5

92043-1707

1
Out of stock

92144

SPRING

92144-1266

1
Out of stock

92154

BOLT,FLANGED,10X30

92154-0284

1
Out of stock

92161

DAMPER,STEP

92161-0232

1
Out of stock

92161A

DAMPER,STEP HOLDER

92161-0746

1
Out of stock

92161B

DAMPER,STEP

92161-0766

1
Out of stock

92161C

DAMPER,FOOT BOARD

92161-0770

1
Out of stock

92200

WASHER,22.5X33X2.3

92200-1482

1
Out of stock
