2008 Kawasaki Vulcan® 1600 Nomad™ Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2008 Kawasaki Vulcan® 1600 Nomad™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

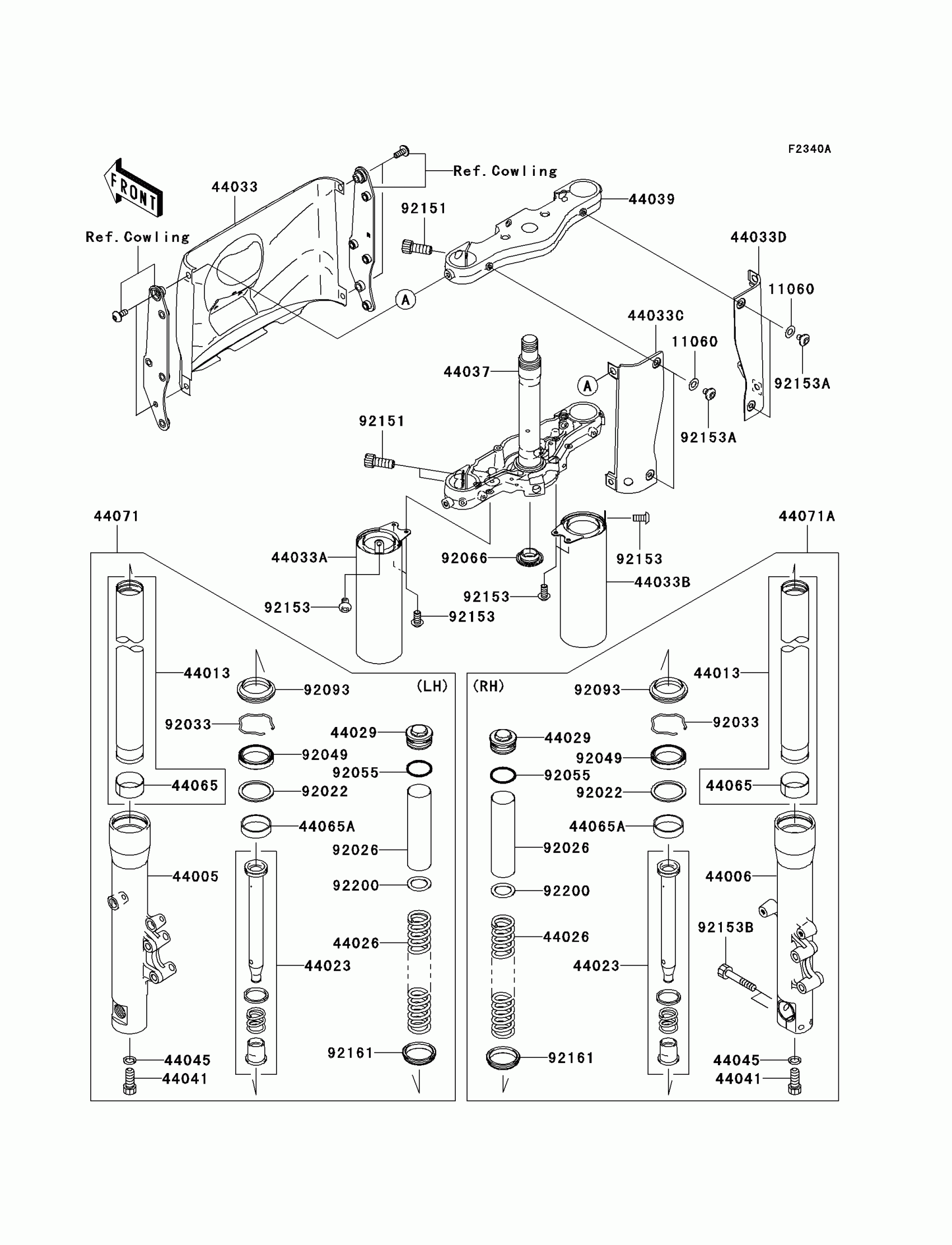

2008 Kawasaki Vulcan® 1600 Nomad™ Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,6.2X12X0.3

11060-1994

1
Out of stock

44005

PIPE-LEFT FORK OUTER

44005-1436

1
Out of stock

44006

PIPE-RIGHT FORK OUTER

44006-0006

1
Out of stock

44013

PIPE-FORK INNER

44013-0024

1
Out of stock

44023

CYLINDER-SET-FORK

44023-0004

1
Out of stock

44026

SPRING-FRONT FORK

44026-0050

1
Out of stock

44029

SEAT-FORK SPRING

44029-1154

1
Out of stock

44033

COVER-FORK,CNT

44033-0013

1
Out of stock

44033A

COVER-FORK,INNER,LH

44033-0027

1
Out of stock

44033B

COVER-FORK,INNER,RH

44033-0028

1
Out of stock

44033C

COVER-FORK,RR,LH

44033-0029

1
Out of stock

44033D

COVER-FORK,RR,RH

44033-0031

1
Out of stock

44037

HOLDER-FORK UNDER

44037-0021

1
Out of stock

44039

HOLDER-FORK UPPER

44039-0019

1
Out of stock

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

1
Out of stock

44045

GASKET

44045-057

1
Out of stock

44065

BUSHING-FRONT FORK

44065-0003

1
Out of stock

44065A

BUSHING-FRONT FORK

44065-1143

1
Out of stock

44071

DAMPER-ASSY,FORK,LH

44071-0156

1
Out of stock

44071A

DAMPER-ASSY,FORK,RH

44071-0157

1
Out of stock

92022

WASHER

92022-1299

1
Out of stock

92026

SPACER,FORK,L=141.5

92026-0062

1
Out of stock

92033

RING-SNAP

92033-1077

1
Out of stock

92049

SEAL-OIL

92049-0007

1
Out of stock

92055

RING-O

92055-1123

1
Out of stock

92066

PLUG

92066-0032

1
Out of stock

92093

SEAL,FORK OUTER TUBE

92093-1480

1
Out of stock

92151

BOLT,SOCKET,10X25

92151-1358

1
Out of stock

92153

BOLT

92153-0300

1
Out of stock

92153A

BOLT,SOCKET,6X10

92153-0411

1
Out of stock

92153B

BOLT

92153-0425

1
Out of stock

92161

DAMPER

92161-1343

1
Out of stock

92200

WASHER

92200-1253

1
Out of stock
