2005 Kawasaki Vulcan 1600 Mean Streak Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2005 Kawasaki Vulcan 1600 Mean Streak, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

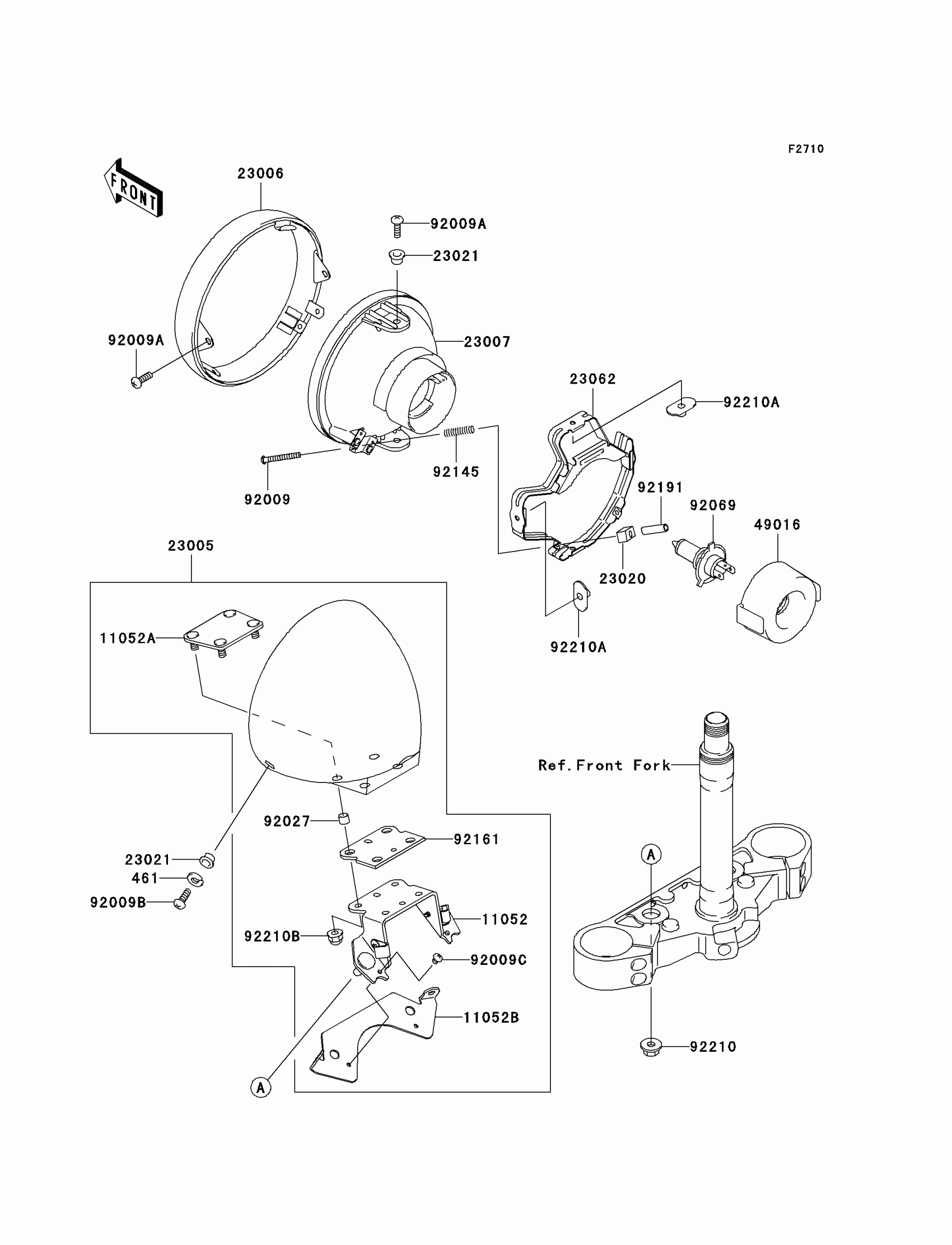

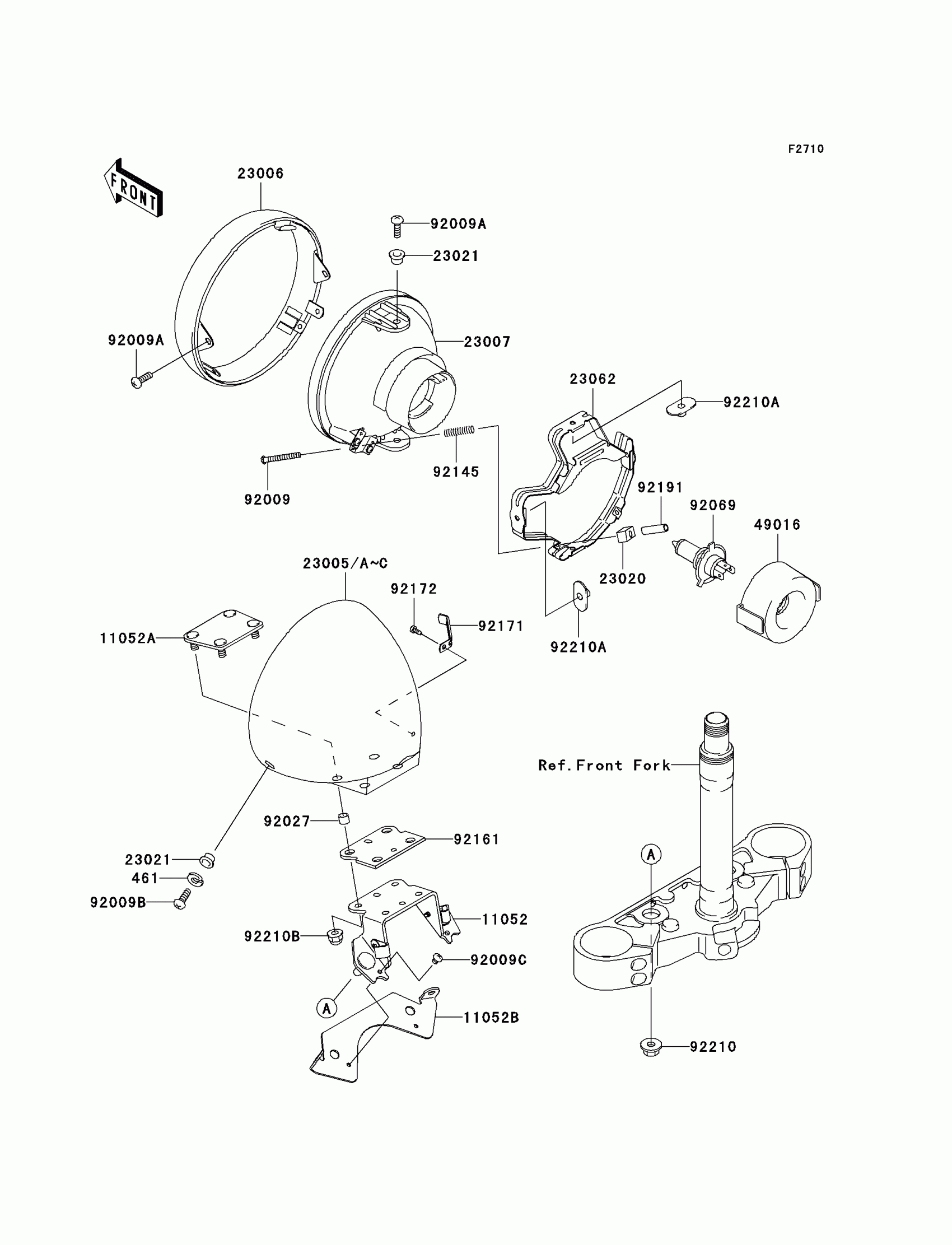

2005 Kawasaki Vulcan 1600 Mean Streak Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

461

WASHER-SPRING,5MM

461S0500

1
Out of stock

11052

BRACKET,HEAD LAMP BODY

11052-1265

1
Out of stock

11052A

BRACKET,HEAD LAMP BODY

11052-1266

1
Out of stock

11052B

BRACKET,HEAD LAMP BODY

11052-1371

1
Out of stock

23005

BODY-COMP-HEAD LAMP

23005-1202

1
Out of stock

23006

RIM-LAMP

23006-0001

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-1359

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

23021

WASHER

23021-010

1
Out of stock

23062

BRACKET-COMP,HEAD LAMP

23062-1131

1
Out of stock

49016

COVER-SEAL,SOCKET

49016-1203

1
Out of stock

92009

SCREW,FOCUS ADJUST,4X60

92009-1816

1
Out of stock

92009A

SCREW,5X16

92009-1879

1
Out of stock

92009B

SCREW,5MM

92009-1947

1
Out of stock

92009C

SCREW,4X5

92009-1988

1
Out of stock

92027

COLLAR

92027-103

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92145

SPRING,HEAD LAMP LENS

92145-1268

1
Out of stock

92161

DAMPER,HEAD LAMP BODY

92161-1212

1
Out of stock

92191

TUBE,3.5X5.5X19

92191-1217

1
Out of stock

92210

NUT,FLANGED,8MM

92210-0004

1
Out of stock

92210A

NUT,SPECIAL,5MM

92210-1060

1
Out of stock

92210B

NUT,CAP,6MM

92210-1252

1
Out of stock
