2005 Kawasaki Vulcan 1600 Mean Streak Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2005 Kawasaki Vulcan 1600 Mean Streak, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

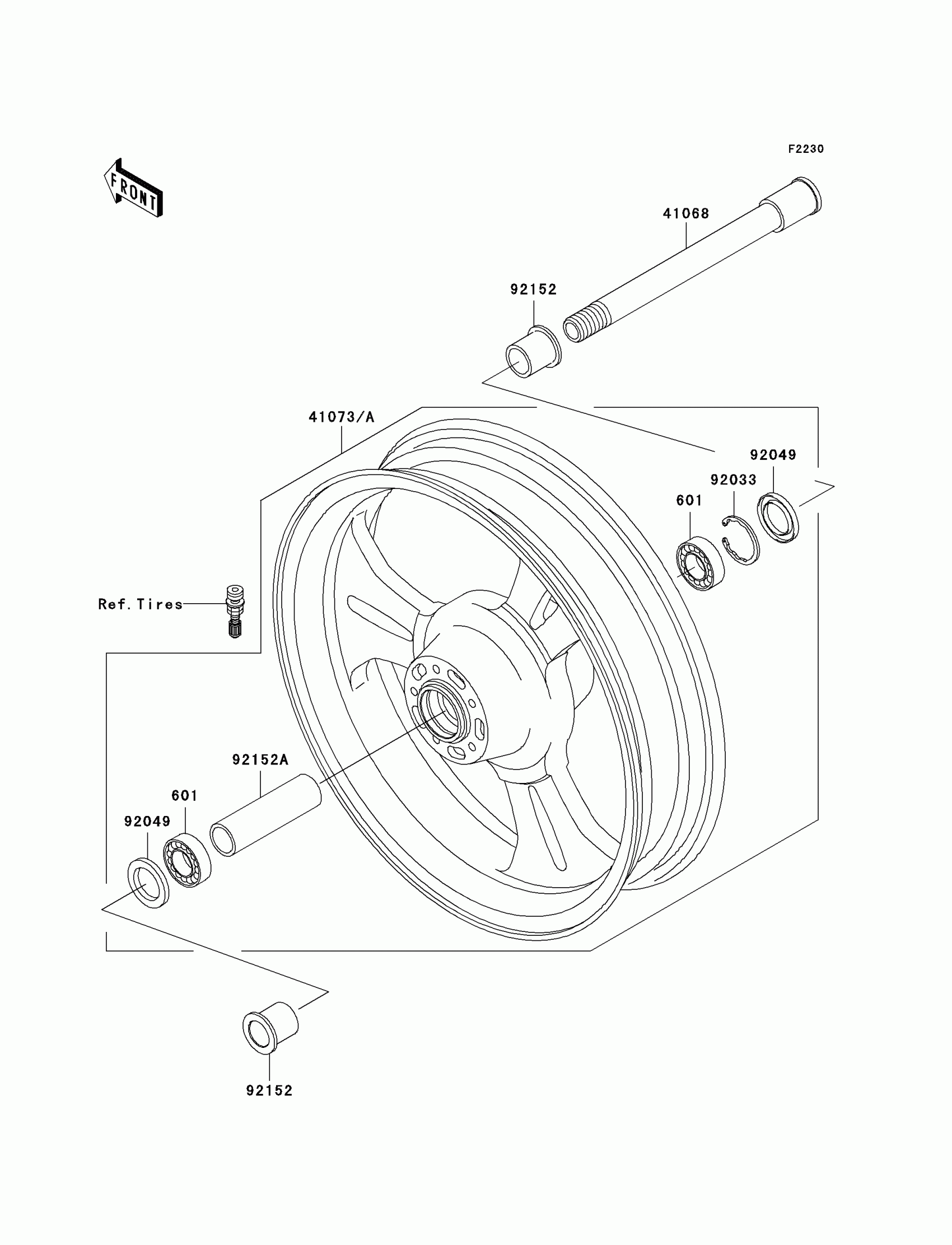

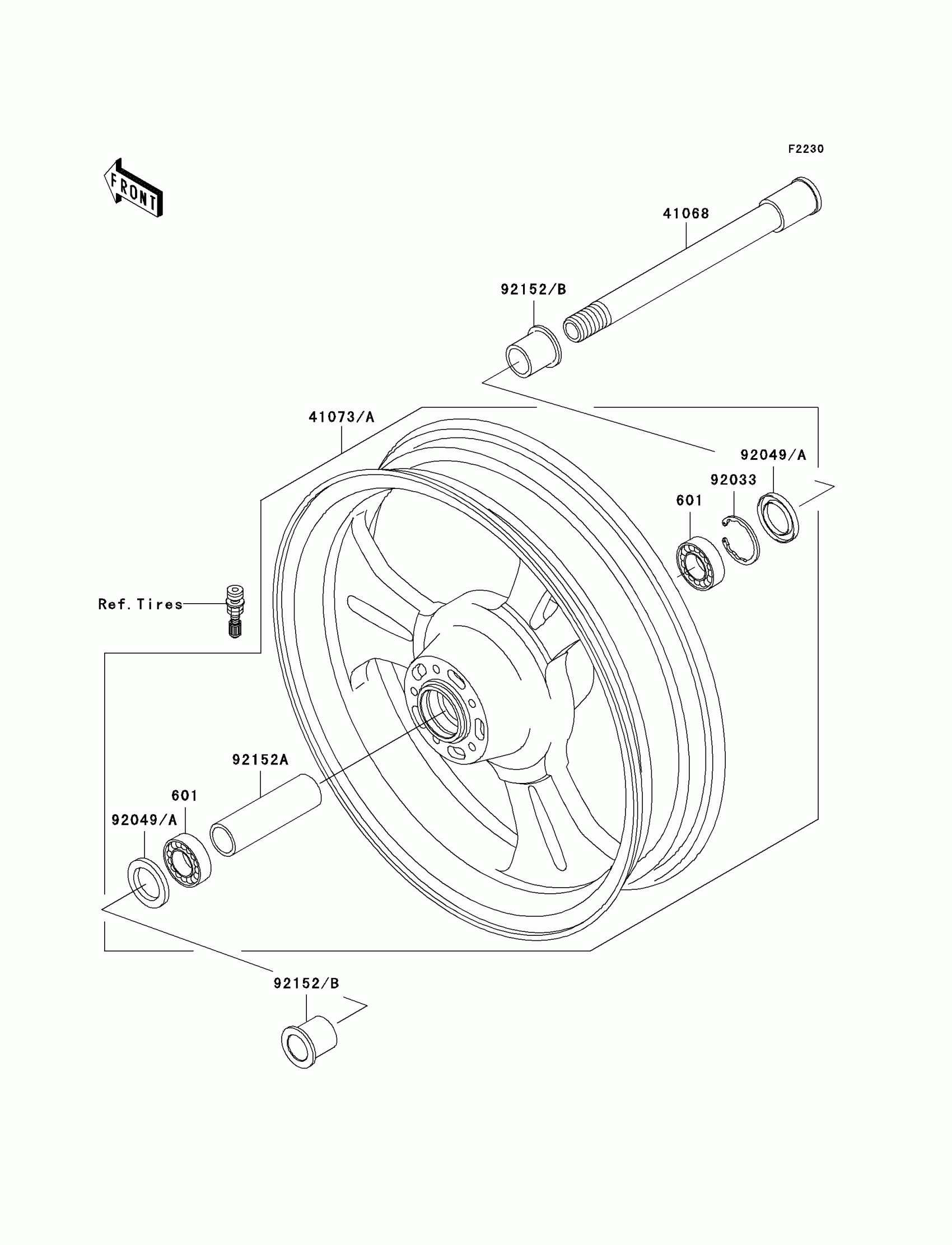

2005 Kawasaki Vulcan 1600 Mean Streak Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

BEARING-BALL,#6005UU

601B6005UU

1
Out of stock

41068

AXLE,FR

41068-1458

1
Out of stock

41073A

WHEEL-ASSY,FR,P.SILVER

41073-0041-496

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92049

SEAL-OIL,BJN-C2 32X47X5

92049-0050

1
Out of stock

92152

COLLAR,FR AXLE,L=34

92152-0178

1
Out of stock

92152A

COLLAR,FR HUB,L=109

92152-1308

1
Out of stock
