2008 Kawasaki Vulcan® 1600 Classic Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2008 Kawasaki Vulcan® 1600 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

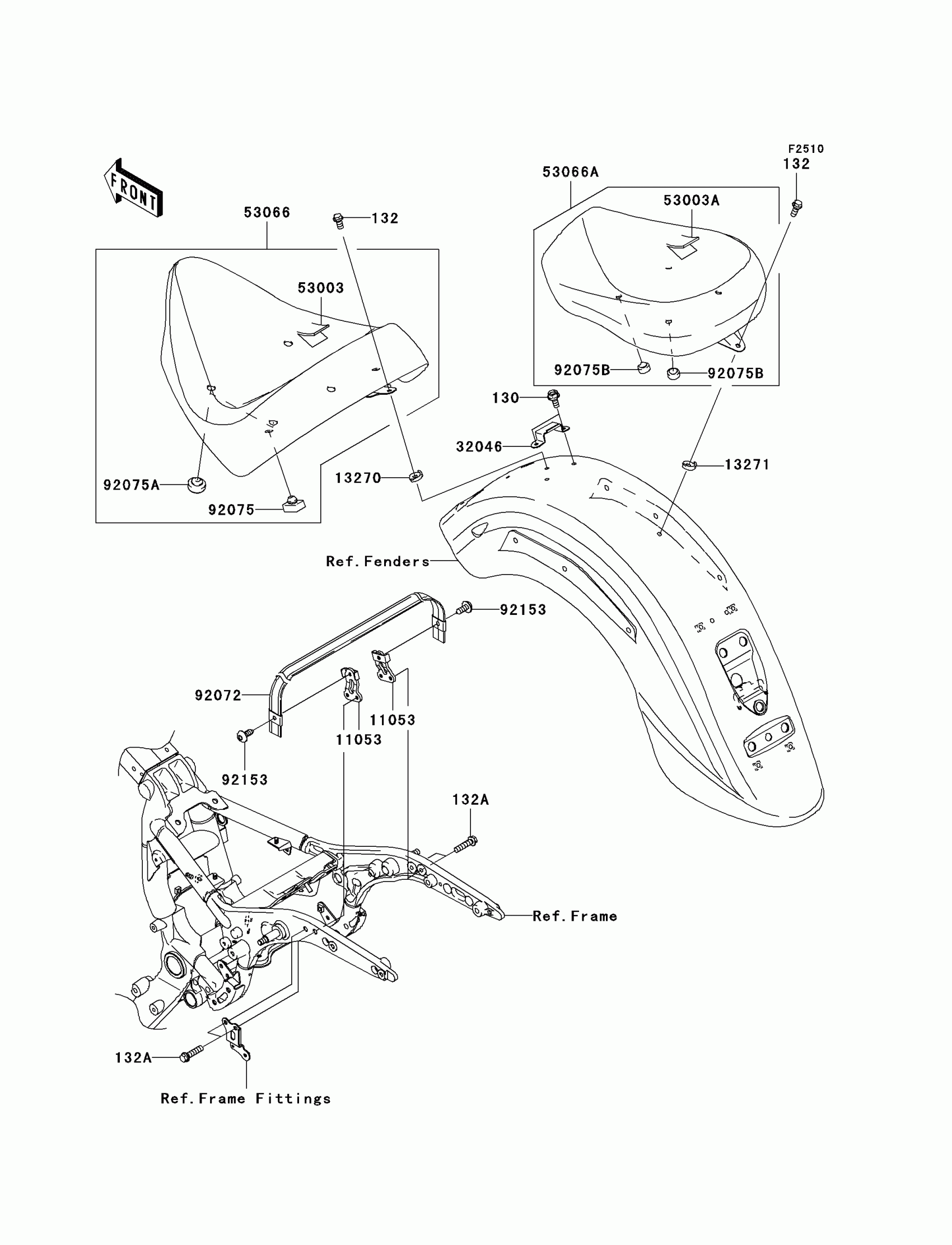

2008 Kawasaki Vulcan® 1600 Classic Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

132

BOLT-FLANGED-SMALL

132J0614

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

11053

BRACKET,SEAT BAND

11053-0280

1

$12.71

In stock

13270

PLATE,SEAT

13270-1484

1
Out of stock

13271

PLATE,RR SEAT,RR

13271-0558

1
Out of stock

32046

BRACKET-SEAT

32046-1537

1
Out of stock

53003

LEATHER,FRONT SEAT,BLACK

53003-1531-MA

1

$288.56

In stock

53003A

LEATHER,REAR SEAT,BLACK

53003-1532-MA

1

$234.86

In stock

53066

SEAT-ASSY,FR,BLACK

53066-0020-MA

1

$788.81

In stock

53066A

SEAT-ASSY,RR,BLACK

53066-0089-MA

1

$559.22

In stock

92072

BAND,SEAT

92072-0020

1

$40.40

In stock

92075

DAMPER

92075-099

1

$4.37

In stock

92075A

DAMPER

92075-1045

1

$7.04

In stock

92075B

DAMPER,10X20X8

92075-1927

1

$3.49

In stock

92153

BOLT,SOCKET,6X16

92153-0374

1
Out of stock
