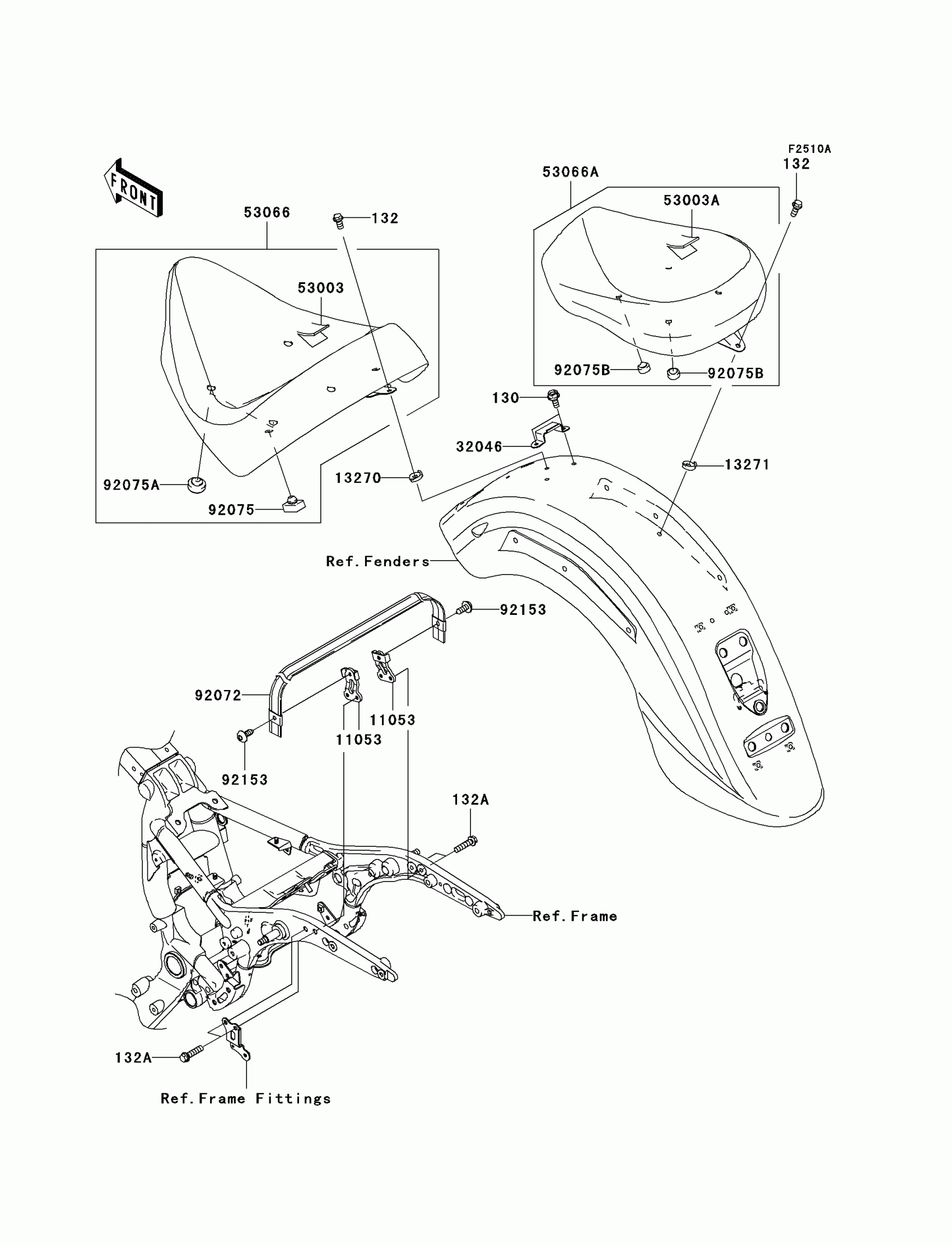

Kawasaki Vulcan 1600 Classic Seat(JKBVNKA1 5A014811-) Diagram

Description

Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

132

BOLT-FLANGED-SMALL

132J0614

Unavailable

132A

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

11053

BRACKET,SEAT BAND

11053-0280

$12.71

13270

PLATE,SEAT

13270-1484

$6.52

13271

PLATE,RR SEAT,RR

13271-0558

$5.39

32046

BRACKET-SEAT

32046-1537

Unavailable

53003

LEATHER,FRONT SEAT,BLACK

53003-1531-MA

$288.56

53003A

LEATHER,REAR SEAT,BLACK

53003-1532-MA

$234.86

53066

SEAT-ASSY,FR,BLACK

53066-0020-MA

$788.81

53066A

SEAT-ASSY,RR,BLACK

53066-0089-MA

$559.22

92072

BAND,SEAT

92072-0020

$40.40

92075

DAMPER

92075-099

$4.37

92075A

DAMPER

92075-1045

$7.04

92075B

DAMPER,10X20X8

92075-1927

$3.49

92153

BOLT,SOCKET,6X16

92153-0374

$2.66
