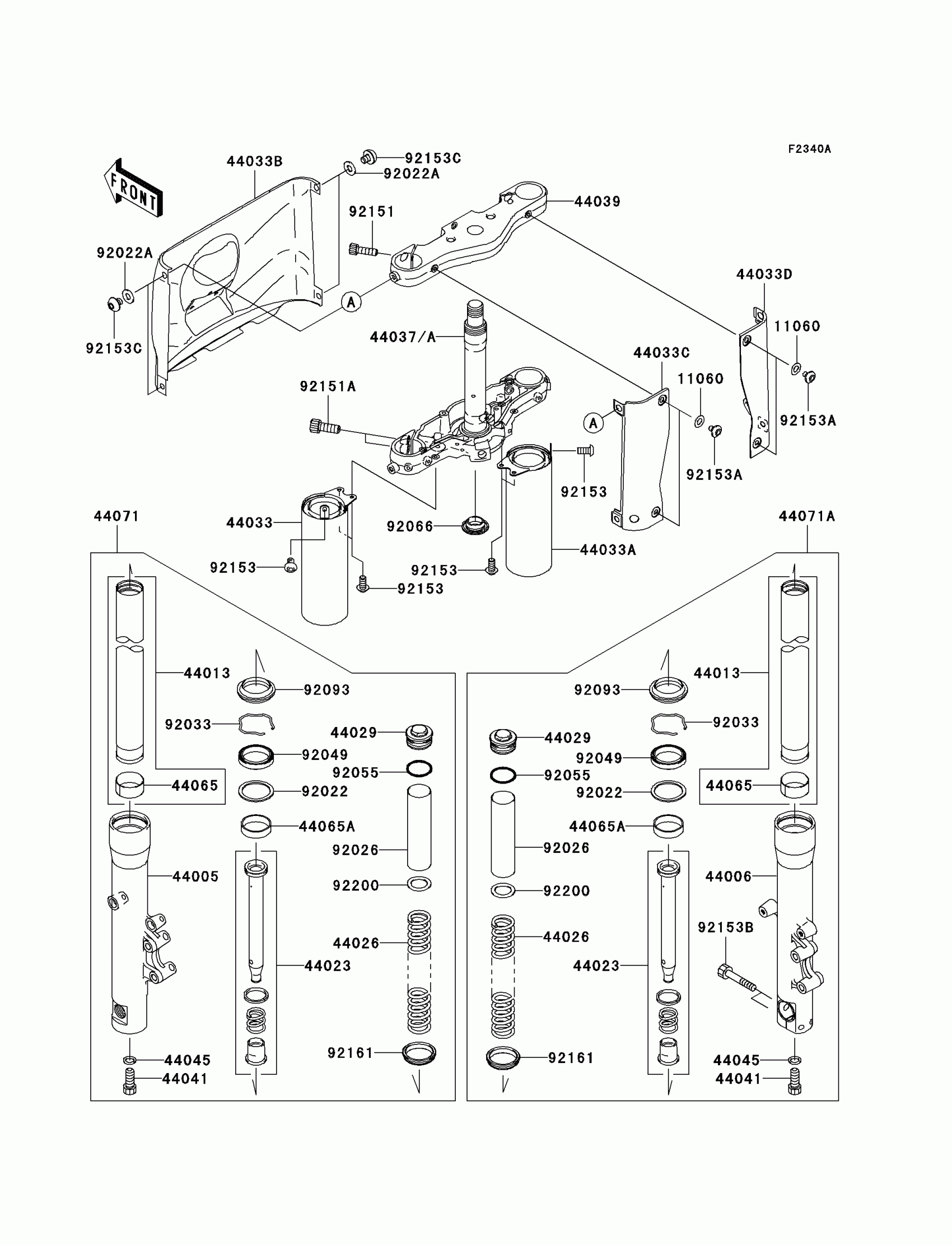

Kawasaki Vulcan® 1600 Classic Front Fork(A7F/A7FA/A8F/A8FA) Diagram

#

Description
Price

11060

GASKET,6.2X12X0.3

11060-1994

$1.71

44005

PIPE-LEFT FORK OUTER

44005-1436

$501.72

44006

PIPE-RIGHT FORK OUTER

44006-0006

$501.72

44013

PIPE-FORK INNER

44013-0002

$515.88

44023

CYLINDER-SET-FORK

44023-0004

$217.97

44026

SPRING-FRONT FORK

44026-0014

$111.84

44029

SEAT-FORK SPRING

44029-1154

$48.30

44033

COVER-FORK,INNER,LH

44033-0011

$85.98

44033A

COVER-FORK,INNER,RH

44033-0012

$85.98

44033B

COVER-FORK,CNT

44033-0013

$144.64

44033C

COVER-FORK,RR,LH

44033-0029

$121.43

44033D

COVER-FORK,RR,RH

44033-0031

$121.43

44037A

HOLDER-FORK UNDER

44037-0083

$559.76

44039

HOLDER-FORK UPPER

44039-0032

$368.00

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

44045

GASKET

44045-057

$3.71

44065

BUSHING-FRONT FORK

44065-0003

$25.58

44065A

BUSHING-FRONT FORK

44065-1143

$17.61

44071

DAMPER-ASSY,FORK,LH

44071-1059

$1,169.19

44071A

DAMPER-ASSY,FORK,RH

44071-1060

$1,169.19

92022

WASHER

92022-1299

$6.55

92022A

WASHER,8.2X18X1.5

92022-3743

$3.22

92026

SPACER

92026-0002

$36.17

92033

RING-SNAP

92033-1077

$3.78

92049

SEAL-OIL

92049-0007

$20.86

92055

RING-O

92055-1123

$4.67

92066

PLUG

92066-0032

$11.19

92093

SEAL,FORK OUTER TUBE

92093-1480

$14.02

92151

BOLT,SOCKET,8X25

92151-1270

$3.17

92151A

BOLT,SOCKET,10X25

92151-1358

$2.75

92153

BOLT

92153-0300

$2.66

92153A

BOLT,SOCKET,6X10

92153-0411

$1.98

92153B

BOLT

92153-0425

$9.02

92153C

BOLT,SOCKET,8X10

92153-1278

$4.85

92161

DAMPER

92161-1343

$3.64

92200

WASHER

92200-1253

$8.27
