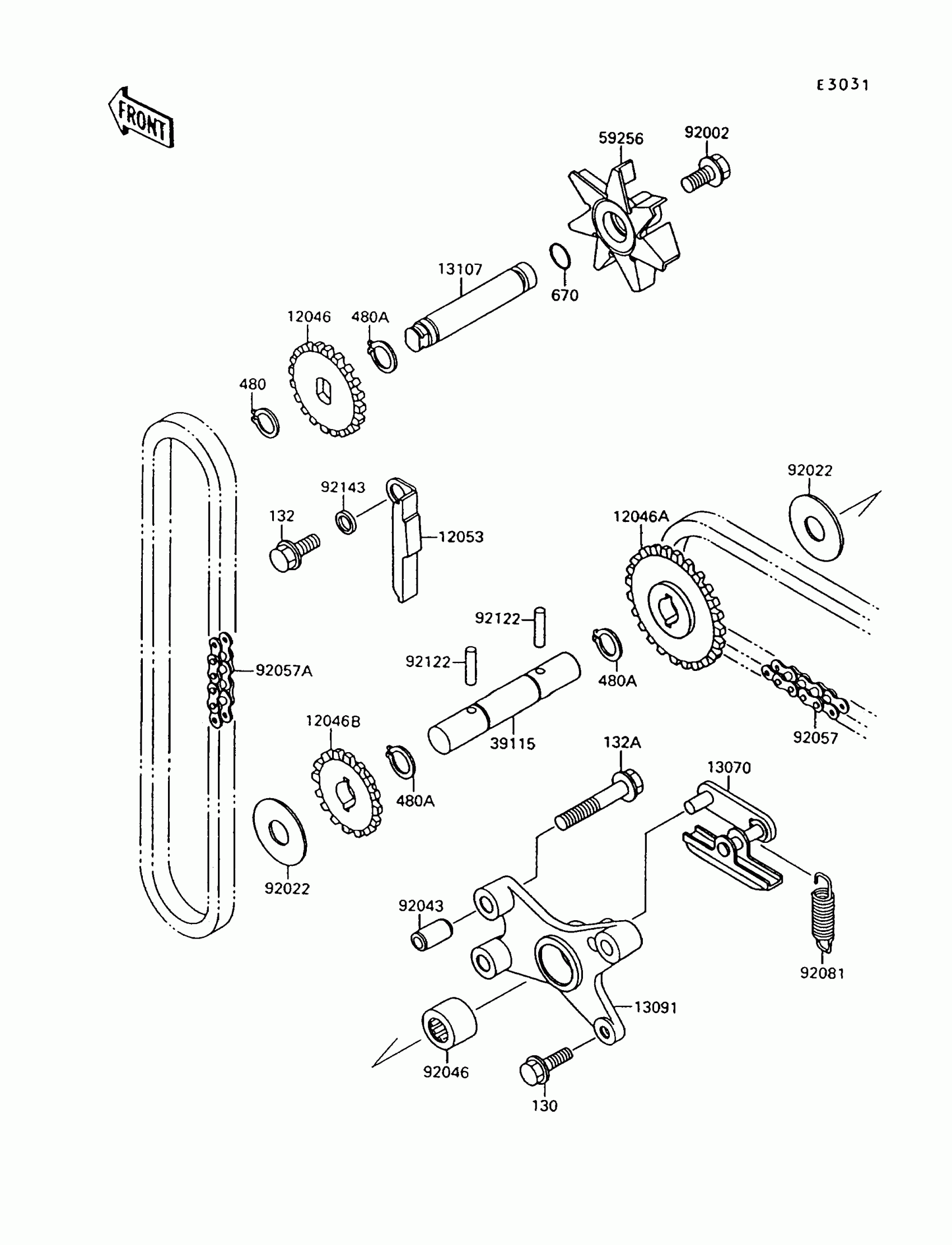

Kawasaki Vulcan 1500 Water Pump Diagram

#

Description

Price

130

BOLT-FLANGED,5X14

130D0514

Unavailable

132

BOLT-FLANGED-SMALL

132G0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X35

132G0635

Unavailable

480

CIRCLIP-TYPE-C,11MM

480J1100

Unavailable

480A

CIRCLIP-TYPE-C,12MM

480J1200

Unavailable

670

O RING,9MM

670D1509

Unavailable

12046

SPROCKET,OIL PUMP,19T

12046-1079

Unavailable

12046A

SPROCKET,CRANK IDLER,25T

12046-1096

Unavailable

12046B

SPROCKET,IDLER,17T

12046-1097

Unavailable

12053

GUIDE-CHAIN

12053-1227

Unavailable

13070

GUIDE

13070-1178

Unavailable

13091

HOLDER

13091-1471

Unavailable

13107

SHAFT,IMPELLER

13107-1196

Unavailable

39115

SHAFT-IDLER

39115-1058

Unavailable

59256

IMPELLER

59256-1066

Unavailable

92002

BOLT,6X12

92002-1902

Unavailable

92022

WASHER,12X27.5X1.0

92022-1852

Unavailable

92043

PIN,6.2X8X14

92043-1263

Unavailable

92046

BEARING-NEEDLE,HK1212

92046-1163

Unavailable

92057

CHAIN,BS25HX46L

92057-1230

Unavailable

92057A

CHAIN,BS25HX44L

92057-1231

Unavailable

92081

SPRING,IDLER SHAFT

92081-1791

Unavailable

92122

ROLLER,3X15.8

92122-1126

Unavailable

92143

COLLAR

92143-1123

Unavailable
