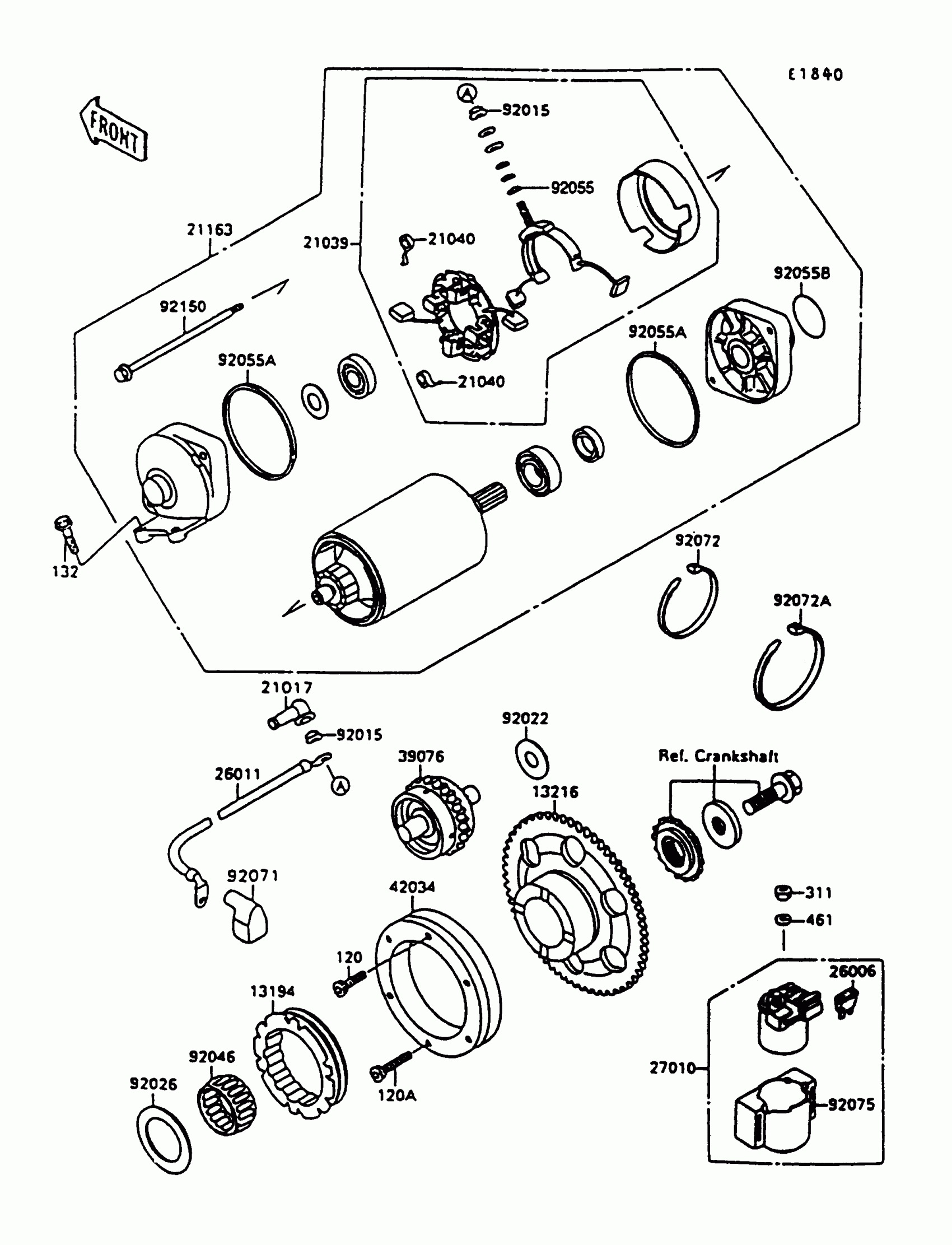

Kawasaki Vulcan 1500 Starter Motor Diagram

#

Description

Price

120

BOLT-SOCKET,6X20

120S0620

Unavailable

120A

BOLT-SOCKET,6X30

120S0630

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132E0625

Unavailable

311

NUT 6MM

311B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

13194

CLUTCH-ONEWAY

13194-1088

Unavailable

13216

GEAR-COMP,FREE WHEEL

13216-1115

Unavailable

21017

GROMMET,STARTER TERMINAL

21017-017

Unavailable

21039

BRUSH,CARBON

21039-1060

Unavailable

21040

SPRING-BRUSH

21040-1055

Unavailable

21163

STARTER-ELECTRIC

21163-1109

Unavailable

26006

FUSE,BLADE,30A,GREEN

26006-1006

Unavailable

26011

WIRE-LEAD,STARTER MOTOR

26011-1403

Unavailable

27010

SWITCH,MAGNETIC

27010-1213

Unavailable

39076

LIMITER,STARTER IDLE GEAR

39076-1057

Unavailable

42034

COUPLING

42034-1093

Unavailable

92015

NUT,STARTER MOTOR

92015-1476

Unavailable

92022

WASHER,12X27.5X1.0

92022-1852

Unavailable

92026

SPACER,31X49.5X1.2

92026-1490

Unavailable

92046

BEARING-NEEDLE,K30X35X20

92046-1171

Unavailable

92055

RING-O,4.5X2.0

92055-1370

Unavailable

92055A

RING-O,STARTER MOTOR

92055-1381

Unavailable

92055B

RING-O,37MM

92055-1393

Unavailable

92071

GROMMET,TERMINAL

92071-1130

Unavailable

92072

BAND,L=202

92072-1195

Unavailable

92072A

BAND,L=365

92072-1197

Unavailable

92075

DAMPER,MAGNETIC SWITCH

92075-1863

Unavailable

92150

BOLT,STARTER MOTOR

92150-1572

Unavailable
