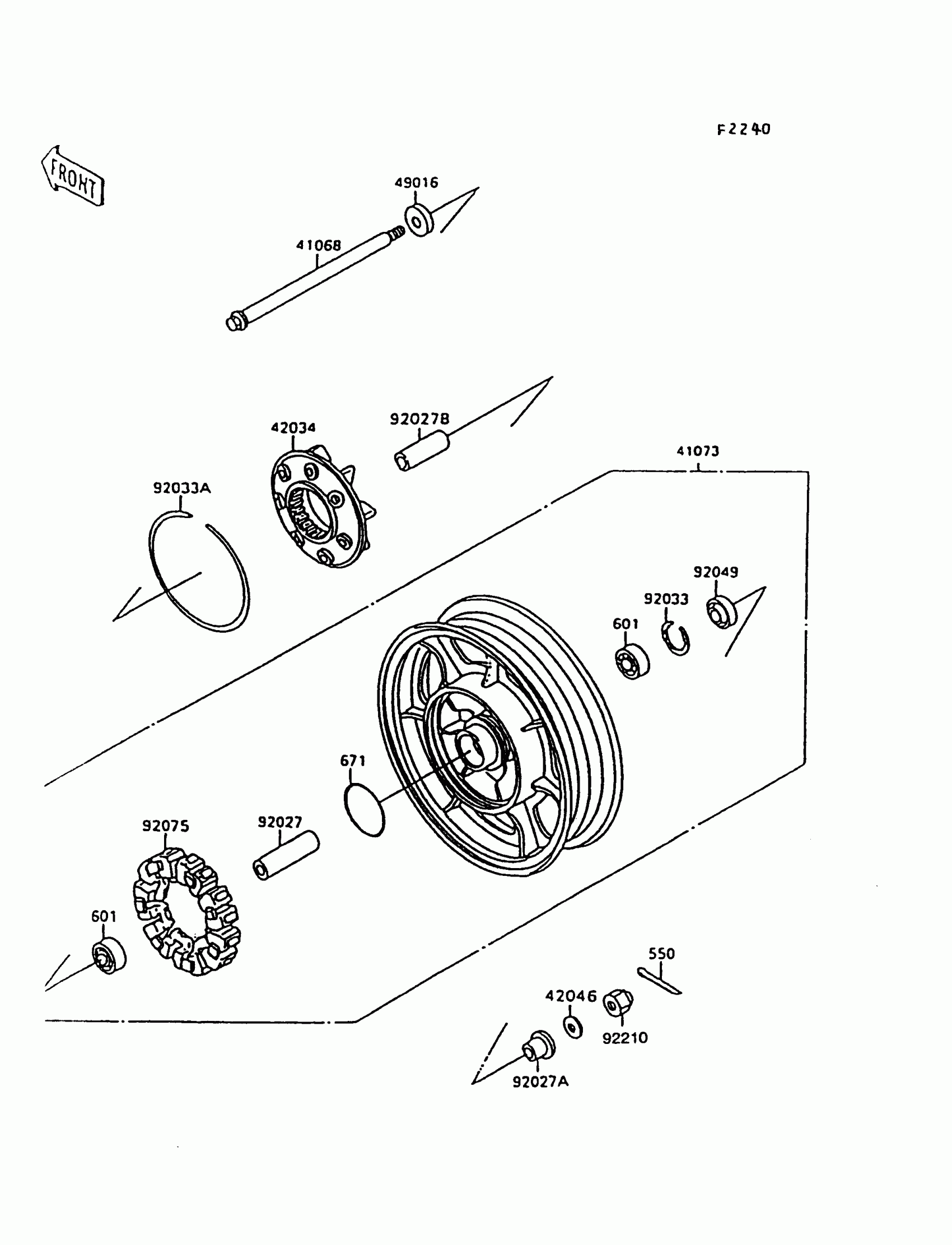

Kawasaki Vulcan 1500 Rear Wheel/Chain Diagram

#

Description

Price

550

PIN-COTTER,4.0X35

550D4035

Unavailable

601

BEARING-BALL,#6304UUC3

601B6304UU

Unavailable

671

O RING,80MM

671B2580

Unavailable

41068

AXLE,RR

41068-1410

Unavailable

41073

WHEEL-ASSY,RR,BLACK

41073-1588-18

Unavailable

42034

COUPLING,RR HUB

42034-1011

Unavailable

42046

WASHER,21X33X2.6

42046-003

Unavailable

49016

COVER-SEAL

49016-1019

Unavailable

92027

COLLAR,20.2X28X105.5

92027-1901

Unavailable

92027A

COLLAR,RR AXLE,L=21.5

92027-1902

Unavailable

92027B

COLLAR,20.2X28X86

92027-1969

Unavailable

92033

RING-SNAP,52MM

92033-1043

Unavailable

92033A

RING-SNAP,220MM

92033-1230

Unavailable

92049

SEAL-OIL,28X52X5

92049-1061

Unavailable

92075

DAMPER,SHOCK,RR HUB

92075-1121

Unavailable

92210

NUT,CASTLE,18MM

92210-1134

Unavailable
