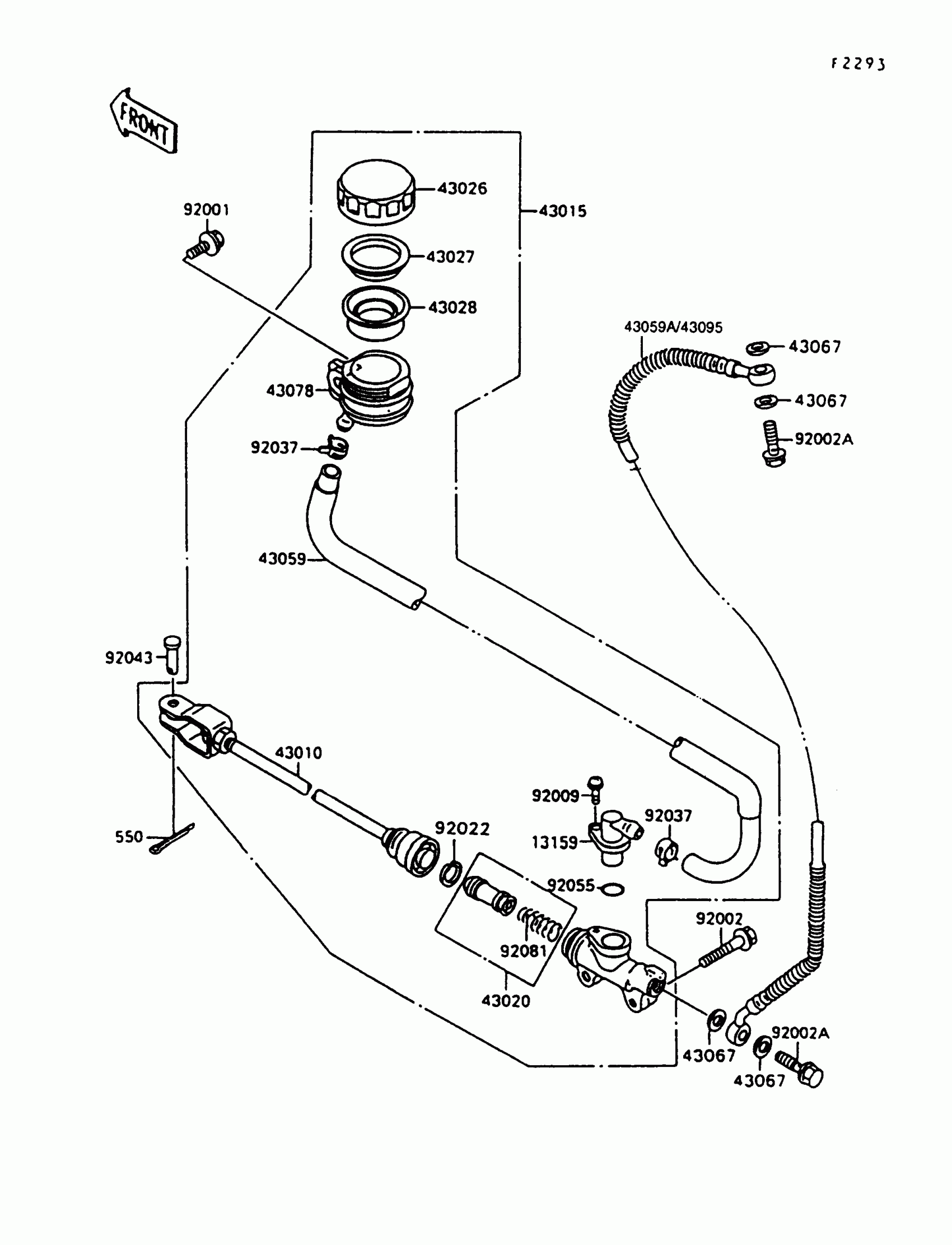

Kawasaki Vulcan 1500 Rear Master Cylinder Diagram

#

Description

Price

550

PIN COTTER 2.0X15

550D2015

Unavailable

13159

CONNECTOR

13159-1058

Unavailable

43010

ROD-ASSY-BRAKE

43010-1064

Unavailable

43015

CYLINDER-ASSY-MASTER,RR

43015-1349

Unavailable

43020

PISTON-COMP-BRAKE

43020-1057

Unavailable

43026

CAP-BRAKE

43026-1051

Unavailable

43027

PLATE-DIAPHRAGM

43027-1051

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

Unavailable

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1414

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

Unavailable

43078

RESERVOIR,RR MASTER CYLINDER

43078-1058

Unavailable

43095

HOSE-BRAKE,RR

43095-1077

Unavailable

92001

BOLT,W/P,6X16

92001-1860

Unavailable

92002

BOLT,FLANGED,8X30

92002-1539

Unavailable

92002A

BOLT,OIL,L=23

92002-1888

Unavailable

92009

SCREW

92009-1486

Unavailable

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92037

CLAMP,BRAKE HOSE

92037-1547

Unavailable

92043

PIN,8X16

92043-1013

Unavailable

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

Unavailable
