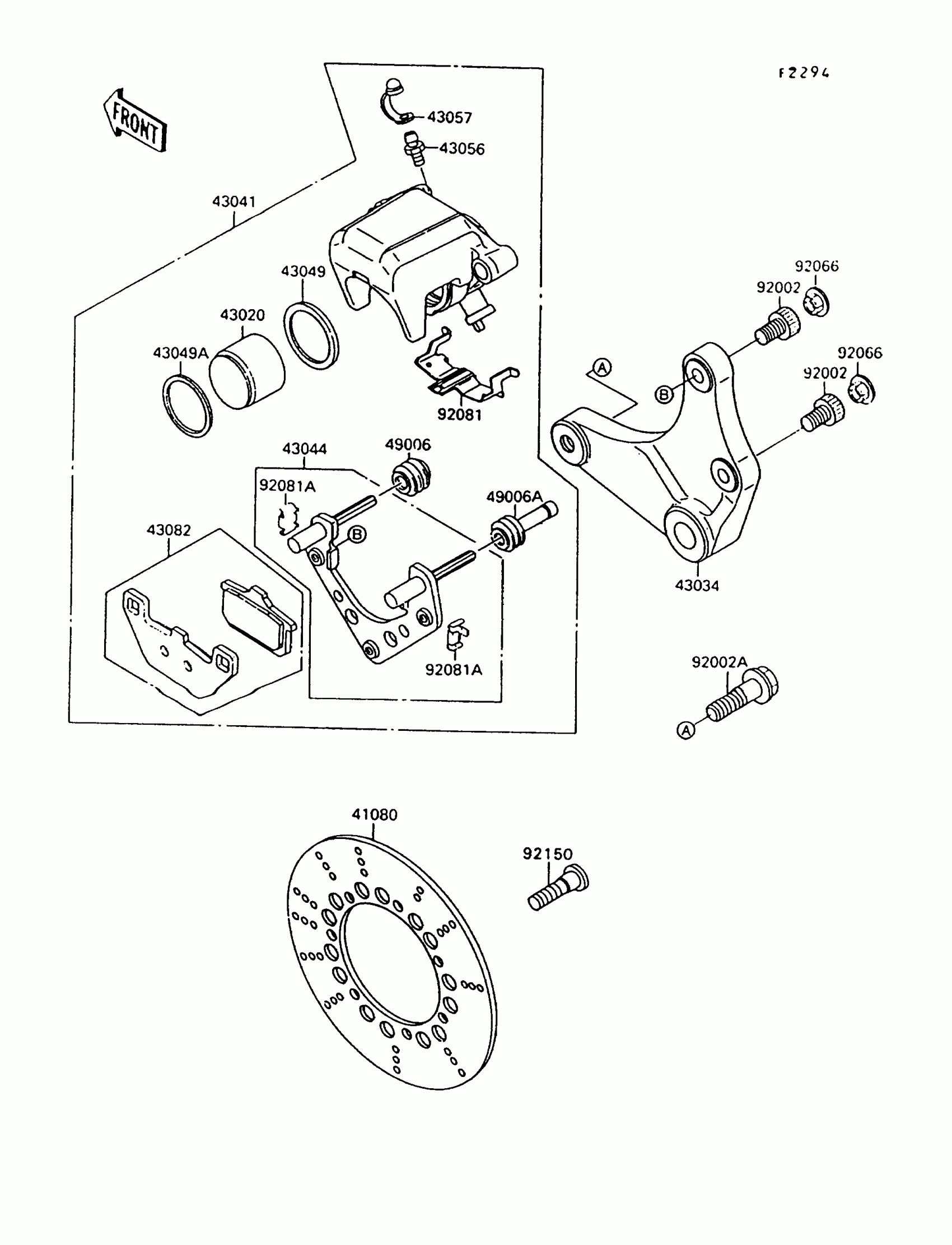

Kawasaki Vulcan 1500 Rear Brake Diagram

#

Description

Price

41080

DISC,RR,SILVER

41080-1128

Unavailable

43020

PISTON-COMP-BRAKE

43020-1066

Unavailable

43034

HOLDER-BRAKE,REAR CALIPER

43034-1080

Unavailable

43041

CALIPER-ASSY,RR,SILVER NO.1

43041-1588-GN

Unavailable

43044

HOLDER-COMP-CALIPER,RR

43044-1103

Unavailable

43049

PACKING,PISTON SEAL

43049-002

Unavailable

43049A

PACKING,PISTON

43049-1028

Unavailable

43056

BREATHER-BRAKE

43056-1054

Unavailable

43057

CAP-BREATHER

43057-003

Unavailable

43082

PAD-ASSY-BRAKE

43082-1062

Unavailable

49006

BOOT,CALIPER

49006-1094

Unavailable

49006A

BOOT,CALIPER

49006-1095

Unavailable

92002

BOLT,SOCKET,10X17

92002-1713

Unavailable

92002A

BOLT,FLANGED,12X40

92002-1969

Unavailable

92066

PLUG

92066-1285

Unavailable

92081

SPRING,PAD

92081-1525

Unavailable

92081A

SPRING,PAD STOPPER

92081-1661

Unavailable

92150

BOLT,SOCKET,8X30

92150-1771

Unavailable
