2001 Kawasaki Vulcan 1500 Nomad Left Engine Cover Diagram

← All diagrams

Find the part on the Left Engine Cover diagram for your 2001 Kawasaki Vulcan 1500 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

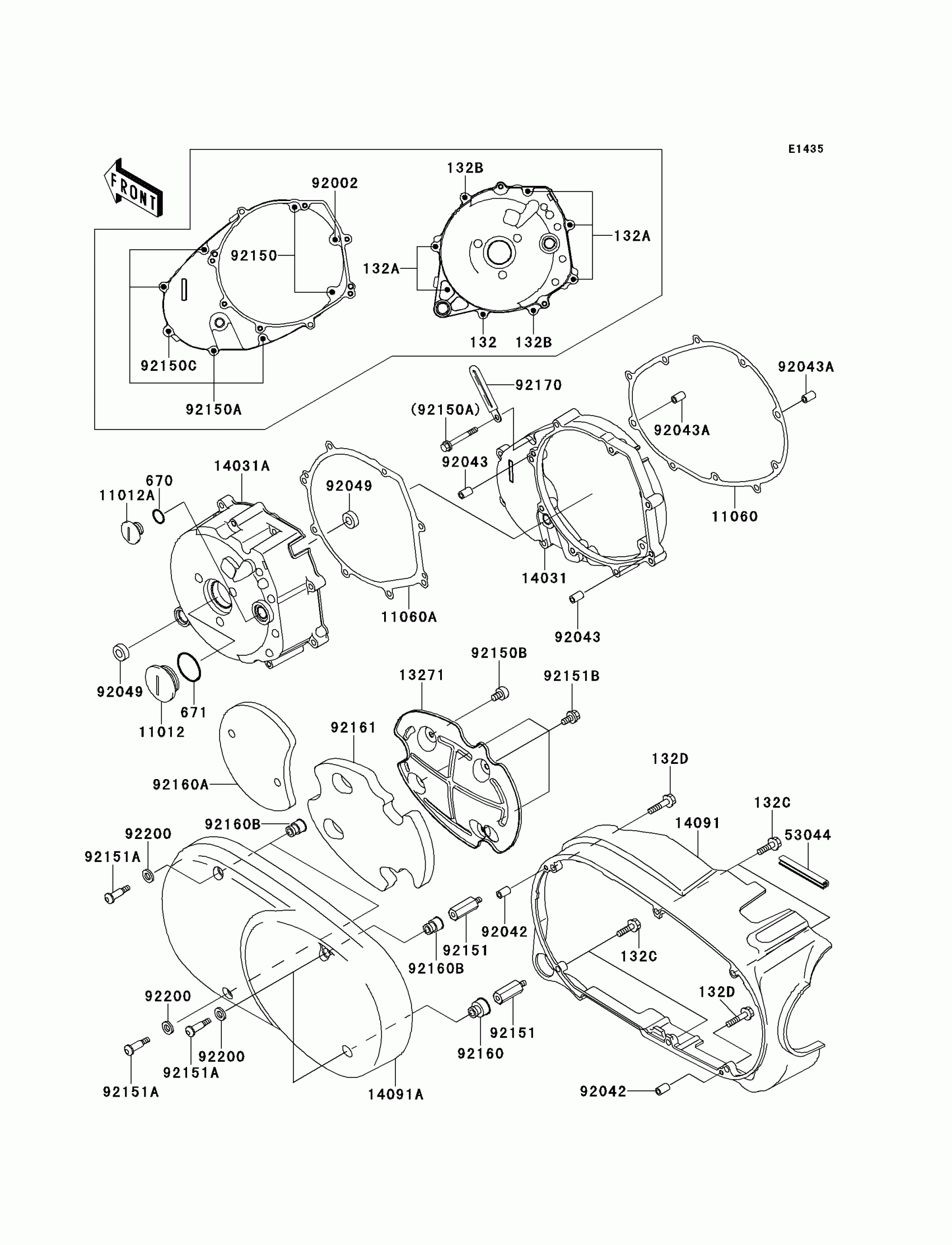

2001 Kawasaki Vulcan 1500 Nomad Left Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X60

132J0660

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X20

132V0620

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X30

132V0630

1
Out of stock

670

O RING,18MM

670B2018

1
Out of stock

671

O RING,40MM

671B2540

1
Out of stock

11012

CAP

11012-1362

1
Out of stock

11012A

CAP,TOP MARK

11012-1363

1
Out of stock

11060

GASKET,GENERATOR COVER,IN

11060-1838

1
Out of stock

11060A

GASKET,GENERATOR COVER,OUT

11060-1839

1
Out of stock

13271

PLATE

13271-1496

1
Out of stock

14031

COVER-GENERATOR,INNER

14031-1348

1
Out of stock

14031A

COVER-GENERATOR,OUTER

14031-1349

1
Out of stock

14091

COVER,LH,INNER

14091-1206

1
Out of stock

14091A

COVER,LH,OUTER

14091-1297

1
Out of stock

53044

TRIM

53044-1312

1
Out of stock

92002

BOLT,FLANGED-SMALL,6X40

92002-1566

1
Out of stock

92042

PIN,DOWEL,6X16

92042-016

1
Out of stock

92043

PIN,4.2X6X12

92043-1262

1
Out of stock

92043A

PIN,6.2X8X14

92043-1263

1
Out of stock

92049

SEAL-OIL,VB13193

92049-1398

1
Out of stock

92150

BOLT,6X30

92150-1021

1
Out of stock

92150A

BOLT,FLANGED-SMALL,6X25

92150-1779

1
Out of stock

92150B

BOLT,6X10

92150-1864

1
Out of stock

92150C

BOLT,6X35

92150-1967

1
Out of stock

92151

BOLT

92151-1062

1
Out of stock

92151A

BOLT,L=32

92151-1796

1
Out of stock

92151B

BOLT,6X10

92151-1884

1
Out of stock

92160

DAMPER

92160-1718

1
Out of stock

92160A

DAMPER

92160-1719

1
Out of stock

92160B

DAMPER

92160-1730

1
Out of stock

92161

DAMPER

92161-1179

1
Out of stock

92170

CLAMP

92170-1514

1
Out of stock

92200

WASHER

92200-1296

1
Out of stock
