2001 Kawasaki Vulcan 1500 Nomad Front Brake Diagram

← All diagrams

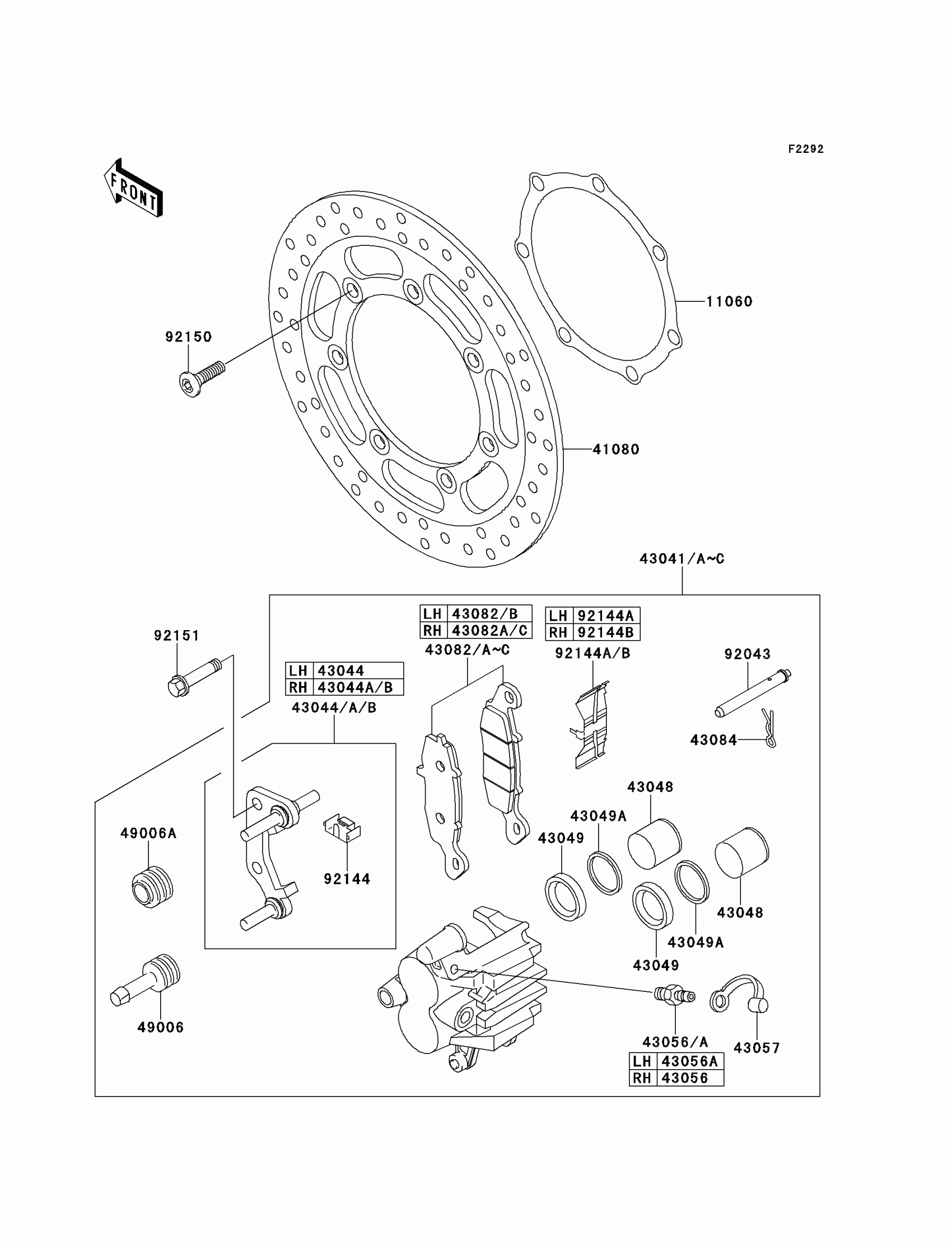

Find the part on the Front Brake diagram for your 2001 Kawasaki Vulcan 1500 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki Vulcan 1500 Nomad Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,DISC

11060-1865

1

$21.17

In stock

41080

DISC,FR,SILVER

41080-1447-CM

1

$461.30

In stock

43041B

CALIPER-ASSY,FR,LH,SILVER

43041-1715-GN

1
Out of stock

43041C

CALIPER-ASSY,FR,RH,SILVER

43041-1716-GN

1
Out of stock

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1117

1
Out of stock

43044B

HOLDER-COMP-CALIPER

43044-1129

1

$185.18

In stock

43048

PISTON-CALIPER

43048-1052

1

$61.01

In stock

43049

PACKING,PISTON SEAL

43049-1054

1

$9.84

In stock

43049A

PACKING,PISTON

43049-1055

1

$8.95

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43056A

BREATHER-BRAKE

43056-1054

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43082B

PAD-ASSY-BRAKE

43082-1245

1
Out of stock

43082C

PAD-ASSY-BRAKE

43082-1246

1
Out of stock

43084

CLAMP,PAD

43084-003

1

$3.43

In stock

49006

BOOT,CALIPER

49006-1054

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1095

1

$5.78

In stock

92043

PIN,PAD

92043-1489

1

$5.21

In stock

92144

SPRING,STOPPER

92144-1831

1

$4.34

In stock

92144A

SPRING,PAD,LH

92144-1832

1

$24.71

In stock

92144B

SPRING,PAD,RH

92144-1844

1

$9.68

In stock

92150

BOLT,SOCKET,8X30

92150-1771

1

$3.72

In stock

92151

BOLT,FLANGED,10X47

92151-1321

1

$5.16

In stock
