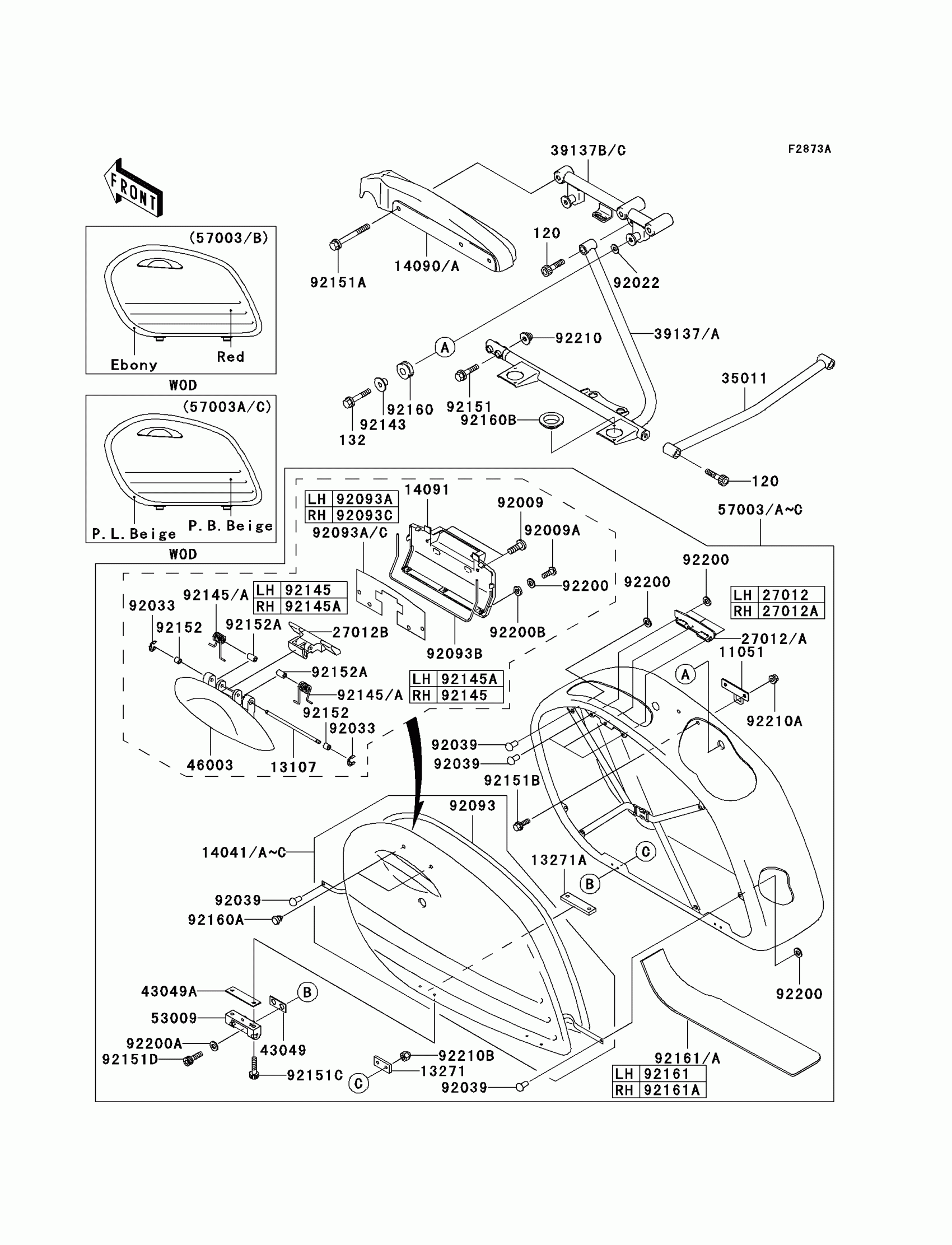

Kawasaki Vulcan 1500 Nomad Fi Saddlebags(VN1500-L3) Diagram

#

Description
Price

11051

BRACKET,SIDE BAG BODY

11051-1104

$10.25

13107

SHAFT

13107-1403

$4.17

13271

PLATE

13271-1146

$3.75

13271A

PLATE

13271-1147

$7.80

14041

COVER,SIDE BAG,LH,C.C.RED

14041-1130-L1

$726.65

14041A

COVER,SIDE BAG,LH,P.B.BEIGE

14041-1130-X8

Unavailable

14041B

COVER,SIDE BAG,RH,C.C.RED

14041-1131-L1

Unavailable

14041C

COVER,SIDE BAG,RH,P.B.BEIGE

14041-1131-X8

Unavailable

14090

COVER,RR FENDER,LH

14090-1894

Unavailable

14090A

COVER,RR FENDER,RH

14090-1895

$85.02

14091

COVER,LID MAINTENANCE

14091-1069

$18.05

27012

HOOK,LOCK PLATE,LH

27012-1571

$14.03

27012A

HOOK,LOCK PLATE,RH

27012-1572

$14.03

27012B

HOOK,HANDLE

27012-1575

$18.27

35011

STAY,SIDE BAG

35011-1896

$76.09

39137

STAY-COMP,SIDE BAG,LH,LWR

39137-1067

$168.81

39137A

STAY-COMP,SIDE BAG,RH,LWR

39137-1068

$164.08

39137B

STAY-COMP,SIDE BAG,LH,UPP

39137-1075

$186.03

39137C

STAY-COMP,SIDE BAG,RH,UPP

39137-1076

$186.03

43049

PACKING

43049-1084

$2.02

43049A

PACKING

43049-1086

$2.02

46003

HANDLE,SIDE BAG

46003-1505

$191.81

53009

HINGE,SIDE BAG

53009-1104

$24.25

57003

BAG-ASSY,LH,EBONY+RED

57003-1084-219

Unavailable

57003A

BAG-ASSY,LH,BEIGE/BEIGE

57003-1084-220

Unavailable

57003B

BAG-ASSY,RH,EBONY+RED

57003-1085-219

Unavailable

57003C

BAG-ASSY,RH,BEIGE/BEIGE

57003-1085-220

$1,895.75

92009

SCREW,TAPPING,4X12

92009-1870

$1.39

92009A

SCREW,TAPPING,3X8

92009-1871

$1.39

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$3.43

92033

RING-SNAP

92033-1300

$1.39

92039

RIVET

92039-1236

$2.03

92093

SEAL,SIDE BAG COVER

92093-1486

$11.68

92093A

SEAL,SIDE BAG,LH

92093-1487

$5.41

92093B

SEAL

92093-1488

$3.15

92093C

SEAL,SIDE BAG,RH

92093-1489

$5.41

92143

COLLAR

92143-1450

$7.86

92145

SPRING

92145-1175

$7.75

92145A

SPRING

92145-1200

$7.75

92151

BOLT,FLANGED,8X35

92151-1402

$2.03

120

BOLT-SOCKET,8X35

120S0835

Unavailable

132

BOLT-FLANGED-SMALL

132J0845

Unavailable

92151A

BOLT,FLANGED,8X75

92151-1403

$4.34

92151B

BOLT,FLANGED,6X16

92151-1435

$2.00

92151C

BOLT,SOCKET,4X22

92151-1436

$2.03

92151D

BOLT,SOCKET,4X18

92151-1437

$2.03

92152

COLLAR

92152-1121

$3.12

92152A

COLLAR

92152-1122

$3.17

92160

DAMPER

92160-1012

$4.37

92160A

DAMPER

92160-1976

$2.03

92160B

DAMPER

92160-1981

$8.53

92161

DAMPER,SIDE BAG,LH

92161-1171

$38.18

92161A

DAMPER,SIDE BAG,RH

92161-1176

$38.18

92200

WASHER,3MM

92200-1442

$1.39

92200A

WASHER,4MM

92200-1443

$1.39

92200B

WASHER,3MM

92200-1444

$1.39

92210

NUT,CAP,8MM

92210-1161

$2.03

92210A

NUT,CAP,6MM

92210-1167

$2.19

92210B

NUT,CAP,4MM

92210-1168

$1.56
