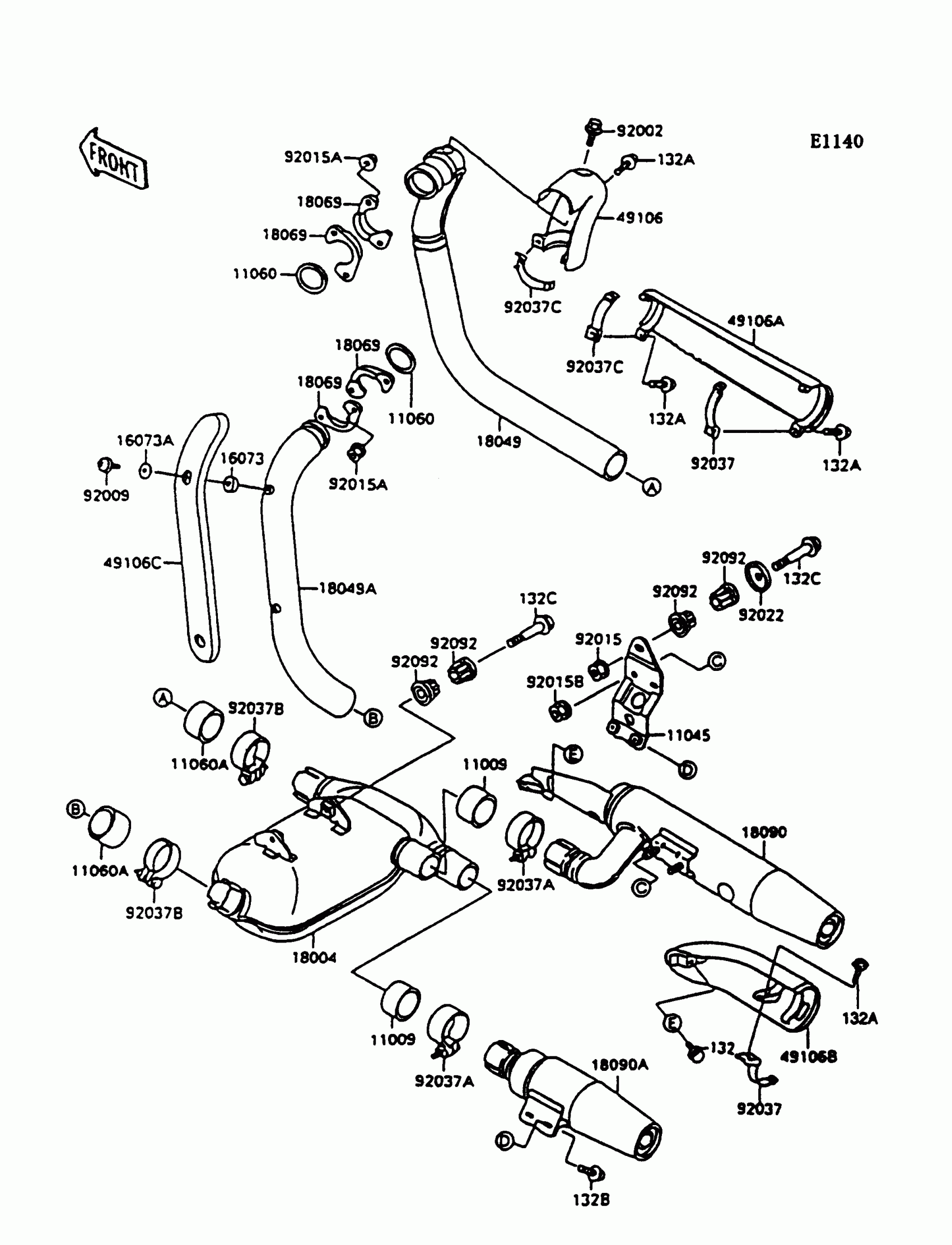

Kawasaki Vulcan 1500 Muffler(s) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X10

132E0610

$3.57

132A

BOLT-FLANGED-SMALL,6X20

132E0620

Unavailable

132B

BOLT-FLANGED-SMALL,8X14

132E0814

$4.25

132C

BOLT-FLANGED-SMALL,8X55

132E0855

$5.66

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1666

$28.56

11045

BRACKET,MUFFLER

11045-1435

Unavailable

11060

GASKET,EXHAUST PIPE

11060-1119

$8.01

11060A

GASKET,EXHAUST PIPE HOLDER

11060-1330

$21.96

16073

INSULATOR,6.5X12.5X4

16073-1069

$4.44

16073A

INSULATOR,6.5X12.5X2

16073-1070

$4.41

18004

CHAMBER-PREMUFFLER

18004-1057

Unavailable

18049

PIPE-EXHAUST,FR

18049-1437

Unavailable

18049A

PIPE-EXHAUST,RR

18049-1438

Unavailable

18069

HOLDER-EXHAUST PIPE

18069-1138

$33.85

18090

BODY-COMP-MUFFLER,UPP

18090-1588

Unavailable

18090A

BODY-COMP-MUFFLER,LWR

18090-1589

Unavailable

49106

COVER-EXHAUST PIPE,FR

49106-1095

$95.63

49106A

COVER-EXHAUST PIPE,FR

49106-1096

Unavailable

49106B

COVER-MUFFLER

49106-1107

$139.20

49106C

COVER-MUFFLER,PIPE,RR

49106-1109

$110.72

92002

BOLT,6X8

92002-1604

Unavailable

92009

SCREW

92009-1517

$4.68

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92015A

NUT,CAP,8MM

92015-1371

$3.81

92015B

NUT,8MM

92015-1398

$3.67

92022

WASHER,CUP TYPE

92022-1270

$13.85

92037

CLAMP,MUFFLER COVER

92037-1615

$14.56

92037A

CLAMP,52MM

92037-1633

$25.63

92037B

CLAMP,59MM

92037-1863

Unavailable

92037C

CLAMP

92037-1874

$15.27

92092

BUSHING-RUBBER,MUFFLER

92092-1013

$13.15
