2003 Kawasaki Vulcan 1500 Mean Streak Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2003 Kawasaki Vulcan 1500 Mean Streak, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

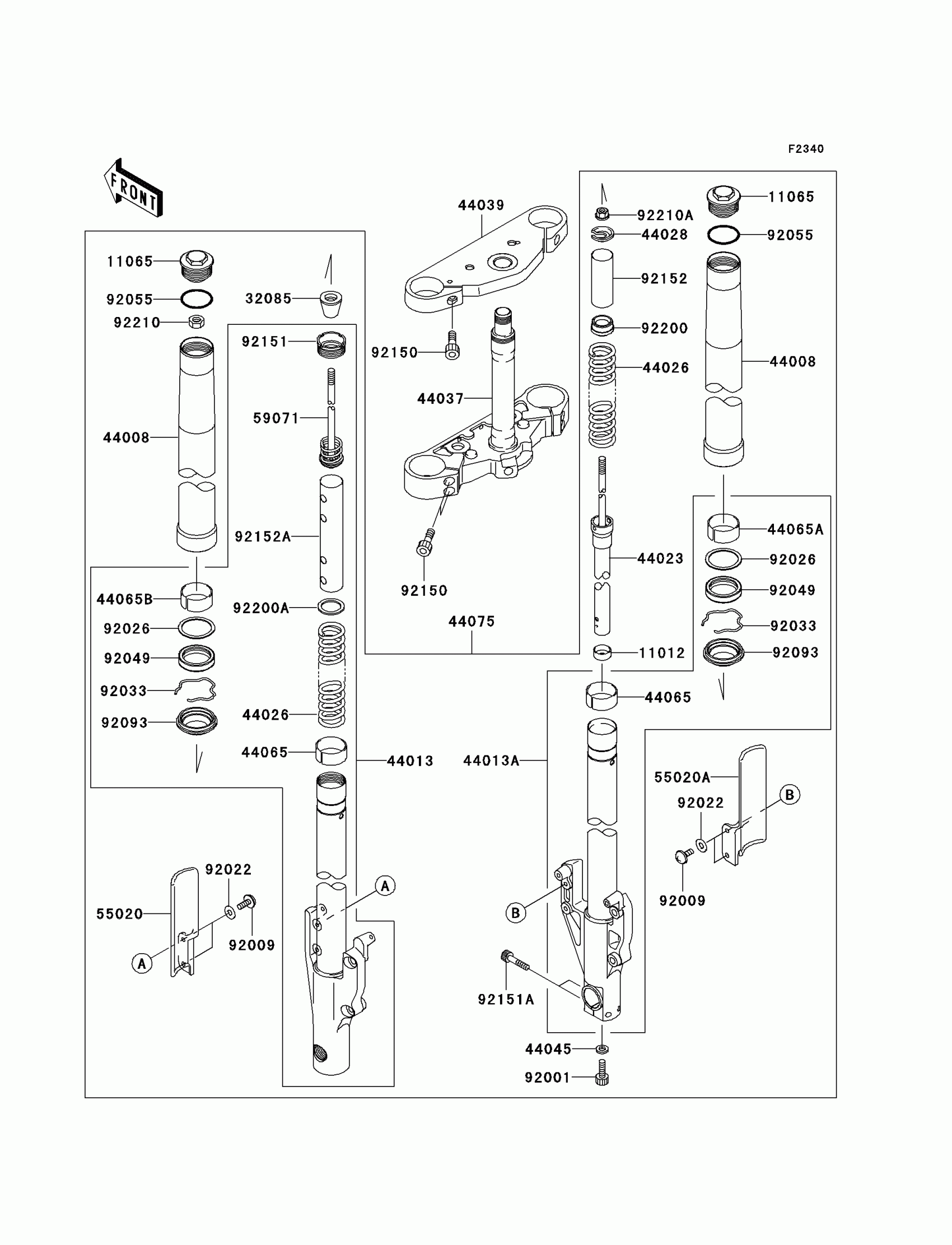

2003 Kawasaki Vulcan 1500 Mean Streak Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1761

1
Out of stock

11065

CAP,FORK TOP

11065-1207

1
Out of stock

32085

STOPPER

32085-1537

1
Out of stock

44008

PIPE-FORK OUTER

44008-1053

1
Out of stock

44013

PIPE-FORK INNER,LH

44013-1489

1
Out of stock

44013A

PIPE-FORK INNER,RH

44013-1490

1
Out of stock

44023

CYLINDER-SET-FORK

44023-1158

1
Out of stock

44026

SPRING-FRONT FORK

44026-1732

1
Out of stock

44028

GUIDE-FORK SPRING

44028-1076

1
Out of stock

44037

HOLDER-FORK UNDER

44037-1421

1
Out of stock

44039

HOLDER-FORK UPPER

44039-1317

1
Out of stock

44045

GASKET,FORK CYLINDER BOLT

44045-051

1
Out of stock

44065

BUSHING-FRONT FORK

44065-1137

1
Out of stock

44065A

BUSHING-FRONT FORK

44065-1138

1
Out of stock

44065B

BUSHING-FRONT FORK

44065-1139

1
Out of stock

44075

DAMPER-SET-FORK

44075-1145

1
Out of stock

55020

GUARD,FORK,LH

55020-1749

1
Out of stock

55020A

GUARD,FORK,RH

55020-1750

1
Out of stock

59071

JOINT

59071-1188

1
Out of stock

92001

BOLT,FORK CYLINDER

92001-1464

1
Out of stock

92009

SCREW,6X16

92009-1776

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1654

1
Out of stock

92026

SPACER

92026-1598

1
Out of stock

92033

RING-SNAP

92033-1222

1
Out of stock

92049

SEAL-OIL

92049-1590

1
Out of stock

92055

RING-O,FORK CAP

92055-1497

1
Out of stock

92093

SEAL,DUST

92093-1551

1
Out of stock

92150

BOLT,SOCKET,8X30

92150-1031

1
Out of stock

92151

BOLT

92151-1971

1
Out of stock

92151A

BOLT

92151-1974

1
Out of stock

92152

COLLAR,FORK,L=85

92152-1337

1
Out of stock

92152A

COLLAR,FORK,L=190.4

92152-1381

1
Out of stock

92200

WASHER

92200-1576

1
Out of stock

92200A

WASHER

92200-1604

1
Out of stock

92210

NUT

92210-1330

1
Out of stock

92210A

NUT,LOCK

92210-1346

1
Out of stock
