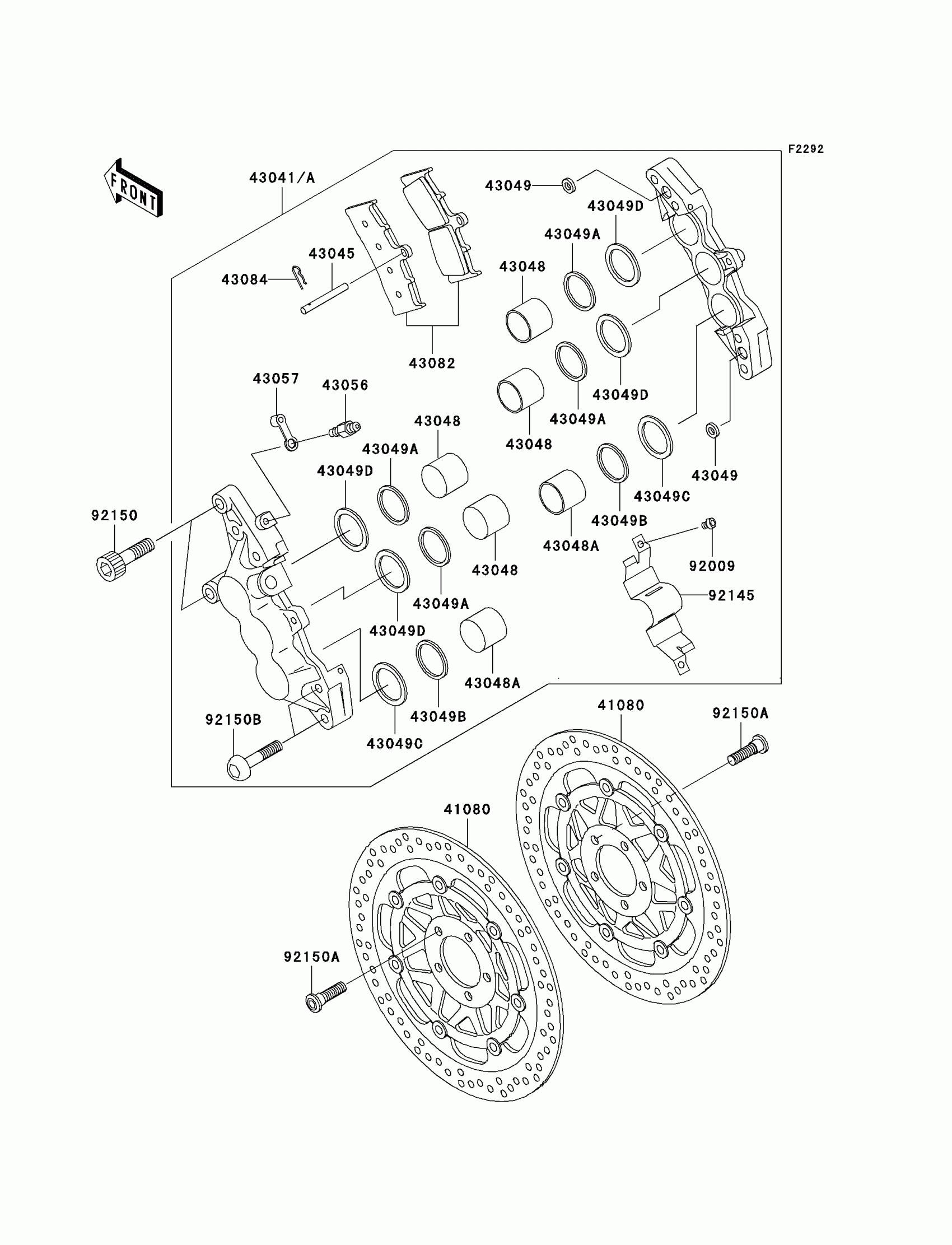

Kawasaki Vulcan 1500 Mean Streak Front Brake Diagram

Description

Price

41080

DISC,FR,SILVER+DISC-SILVER

41080-1511-5D

$502.08

43041

CALIPER-ASSY,FR,LH,SILVER

43041-1863-GN

$433.79

43041A

CALIPER-ASSY,FR,RH,SILVER

43041-1864-GN

Unavailable

43045

SHAFT-CALIPER

43045-007

$4.88

43048

PISTON-CALIPER,DIA=26.97

43048-1078

$67.29

43048A

PISTON-CALIPER

43048-1079

$75.14

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$4.64

43049A

PACKING,PISTON

43049-1055

$8.59

43049B

PACKING,PISTON

43049-1059

$6.48

43049C

PACKING,PISTON SEAL

43049-1090

$4.61

43049D

PACKING,PISTON SEAL

43049-1096

$9.44

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1274

$69.60

43084

CLAMP,PAD

43084-003

$3.29

92009

BOLT,SOCKET,4X6

92009-1758

$1.96

92145

SPRING

92145-1482

Unavailable

92150

BOLT,SOCKET,10X37

92150-1261

$10.69

92150A

BOLT,SOCKET,8X30

92150-1771

$3.57

92150B

BOLT,SOCKET,8X40

92150-1973

$5.37
