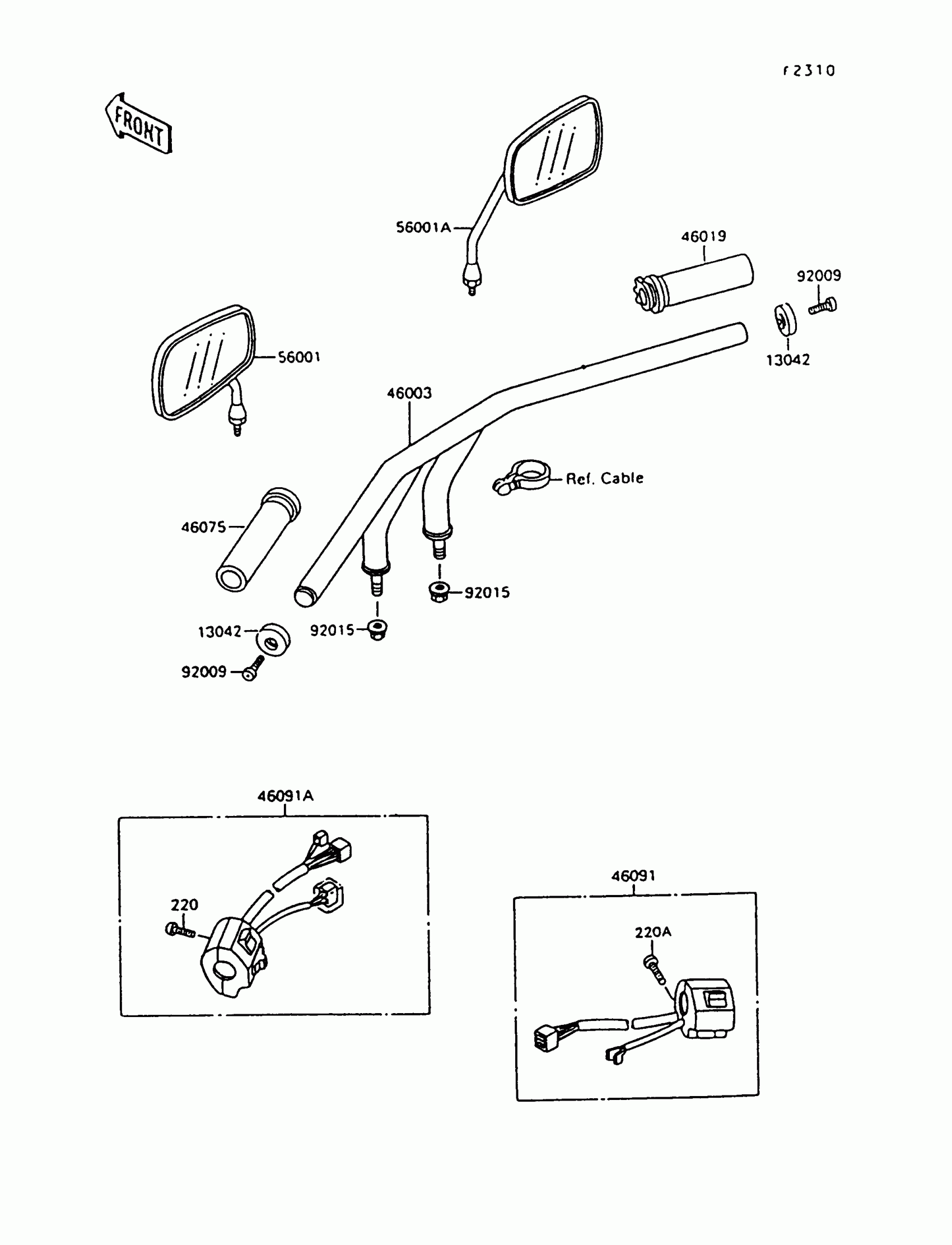

Kawasaki Vulcan 1500 L Handlebar Diagram

Description

Price

220

SCREW-PAN-CROS,5X14

220E0514

Unavailable

220A

SCREW-PAN-CROS,5X16

220E0516

$3.68

13042

WEIGHT,HANDLE

13042-1068

$36.05

46003

HANDLE

46003-1445

Unavailable

46019

GRIP-ASSY,THROTTLE

46019-1065

$36.86

46075

GRIP,LH

46075-1074

$19.86

46091

HOUSING-ASSY-CONTROL,RH

46091-1448

Unavailable

46091A

HOUSING-ASSY-CONTROL,LH

46091-1449

Unavailable

56001

MIRROR-ASSY,LH

56001-1451

$85.41

56001A

MIRROR-ASSY,RH

56001-1452

$85.41

92009

SCREW,8X20

92009-1484

$4.92

92015

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54
