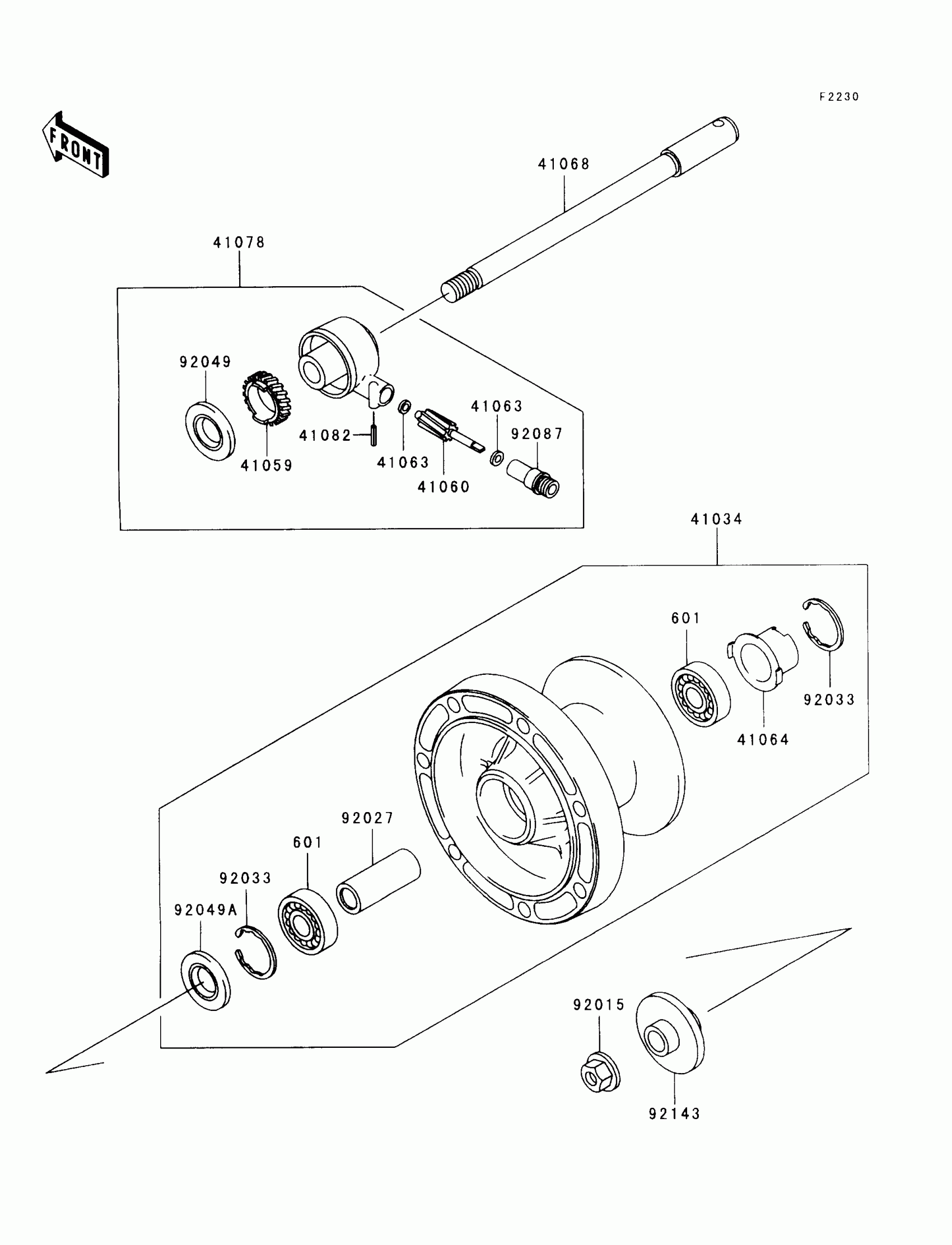

Kawasaki Vulcan 1500 L Front Wheel Diagram

Description

Price

601

BEARING-BALL,#6302UG

601B6302UG

$38.63

41034

DRUM-ASSY,FRONT BRAKE

41034-1237

$813.86

41059

GEAR-METER SCREW,26T

41059-026

$43.35

41060

GEAR-METER SCREW,9T

41060-1006

$39.54

41063

WASHER,5.1X9X0.4

41063-001

$4.17

41064

RECEIVER-SPEEDOMETER

41064-1056

$23.32

41068

AXLE,FR

41068-1189

$74.19

41078

CASE-ASSY-METER GEAR

41078-1100

$121.46

41082

PIN,SPRING

41082-001

$3.53

92015

NUT,14MM

92015-1407

$7.54

92027

COLLAR,L=70

92027-1866

$20.88

92033

RING-SNAP,42MM

92033-1041

$4.64

92049

SEAL-OIL,BJN30427-C3

92049-1057

$7.08

92049A

SEAL-OIL,BJN22425

92049-1058

$7.41

92087

BUSHING-METER GEAR

92087-1056

$20.39

92143

COLLAR,FRONT AXLE,L=30

92143-1082

Unavailable
