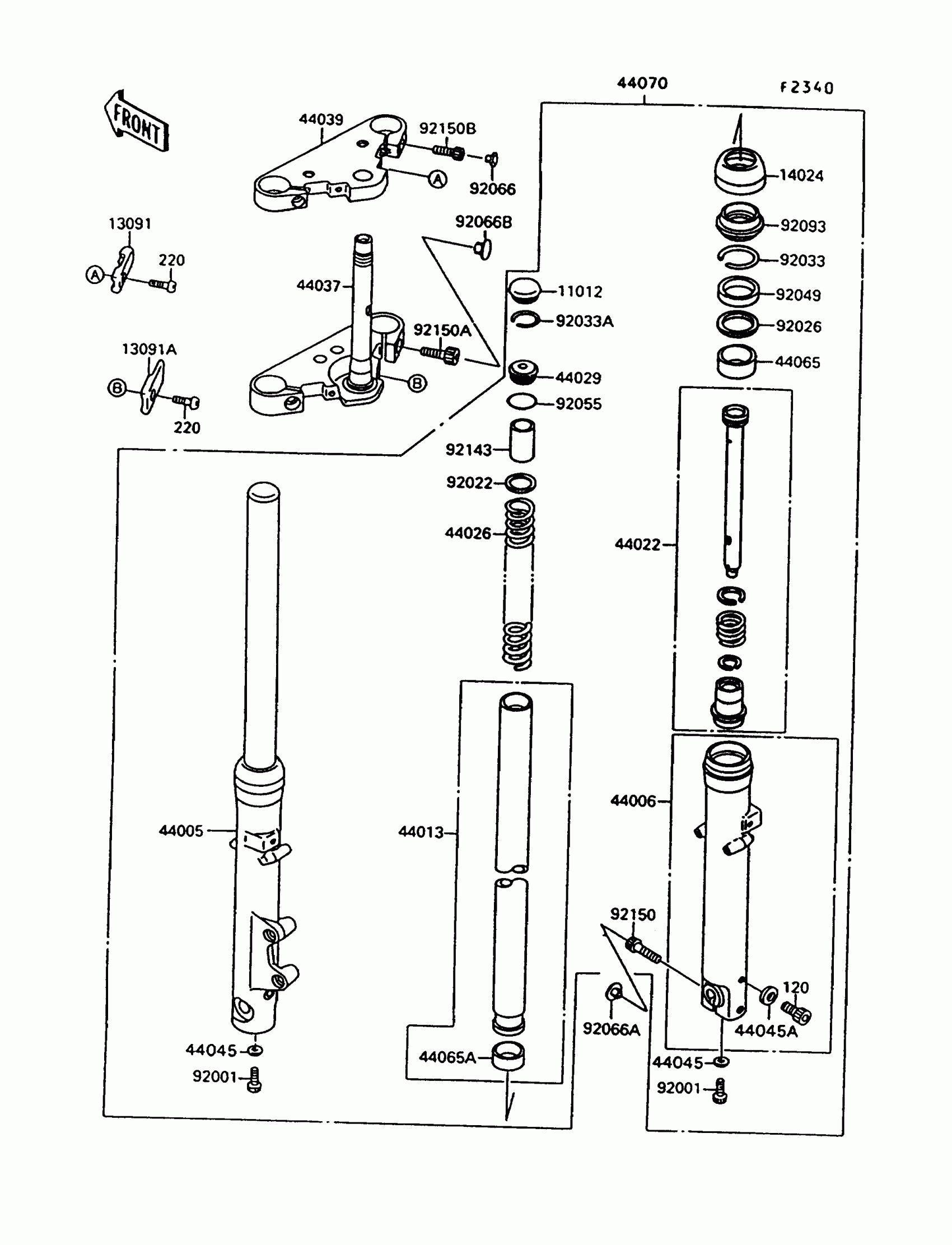

Kawasaki Vulcan 1500 L Front Fork Diagram

#

Description
Price

120

BOLT-SOCKET

120P0608

Unavailable

220

SCREW-PAN-CROS,6X20

220E0620

Unavailable

11012

CAP,FORK TOP

11012-1618

$20.38

13091

HOLDER,UPP

13091-1482

$25.83

13091A

HOLDER,LWR

13091-1483

Unavailable

14024

COVER,FORK OUTER TUBE

14024-1600

$47.54

44005

PIPE-LEFT FORK OUTER

44005-1264

Unavailable

44006

PIPE-RIGHT FORK OUTER

44006-1261

$495.54

44013

PIPE-FORK INNER

44013-1268

Unavailable

44022

CYLINDER-FORK

44022-1215

Unavailable

44026

SPRING-FRONT FORK

44026-1372

Unavailable

44029

SEAT-FORK SPRING

44029-1125

$44.89

44037

HOLDER-FORK UNDER

44037-1235

Unavailable

44039

HOLDER-FORK UPPER

44039-1151

Unavailable

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44045A

GASKET,DRAIN PLUG

44045-052

$7.12

44065

BUSHING-FRONT FORK

44065-1079

$20.25

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1080

$26.61

44070

DAMPER-ASSY,FORK

44070-5038

Unavailable

92001

BOLT,FORK CYLINDER

92001-1464

$4.67

92022

WASHER

92022-1909

$11.02

92026

SPACER,FORK OUTER

92026-1276

$7.25

92033

RING-SNAP

92033-1222

$4.88

92033A

RING-SNAP,SPRING SEAT

92033-1223

$5.10

92049

SEAL-OIL,FORK

92049-1363

$21.55

92055

RING-O,SPRING SEAT

92055-1363

$5.61

92066

PLUG

92066-1277

$5.09

92066A

PLUG

92066-1285

$5.93

92066B

PLUG

92066-1302

$7.71

92093

SEAL,FORK

92093-1268

$20.76

92143

COLLAR,FORK SPRING

92143-1053

$9.49

92150

BOLT,SOCKET,10X40

92150-1029

Unavailable

92150A

BOLT,SOCKET,12MM

92150-1030

$9.59

92150B

BOLT,SOCKET,8X30

92150-1031

$9.71
