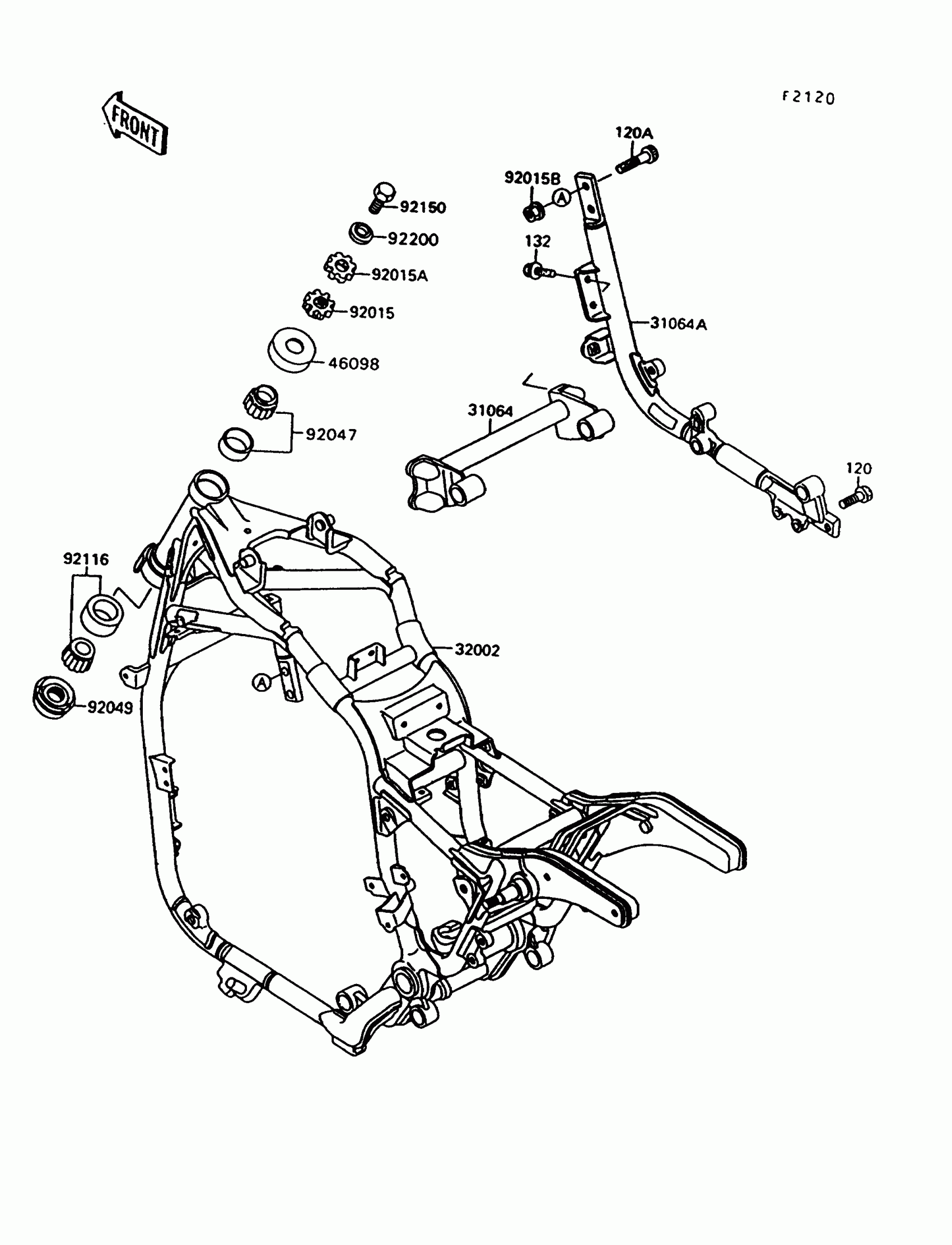

Kawasaki Vulcan 1500 L Frame Diagram

Description

Price

120

BOLT-SOCKET,10X20

120S1020

Unavailable

120A

BOLT-SOCKET,10X30

120S1030

Unavailable

132

BOLT-FLANGED-SMALL,8X16

132J0816

Unavailable

31064

PIPE-COMP,FRAME,CROSS

31064-1083

Unavailable

31064A

PIPE-COMP,FRAME,RH

31064-1084

Unavailable

32002

FRAME-COMP

32002-1987

Unavailable

46098

CAP,STEERING STEM

46098-017

$5.37

92015

NUT,25MM,T=10

92015-1377

$25.61

92015A

NUT,25MM,T=6

92015-1378

$16.96

92015B

NUT,FLANGED,10MM

92015-1669

Unavailable

92047

RACE,ROLLER,32005JR RS

92047-017

$38.84

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$7.08

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$32.44

92150

BOLT,14X25

92150-1672

$13.51

92200

WASHER

92200-1140

$11.03
