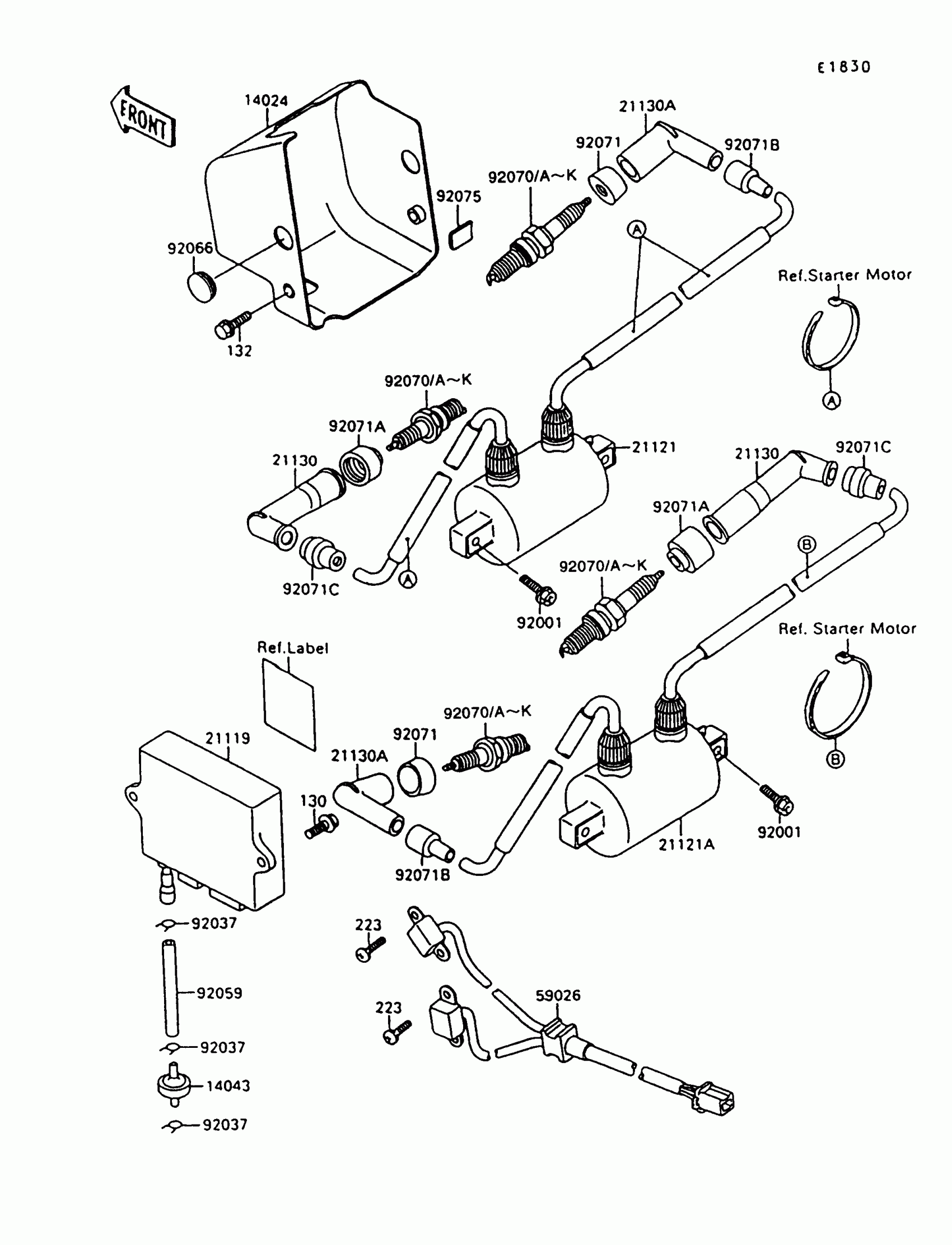

Kawasaki Vulcan 1500 Ignition System Diagram

#

Description
Price

14024

COVER,IGNITION COIL

14024-1527

Unavailable

14043

FILTER

14043-1060

Unavailable

21119

IGNITER

21119-1417

Unavailable

21121

COIL-IGNITION,FR

21121-1154

Unavailable

21121A

COIL-IGNITION,RR

21121-1155

Unavailable

21130

CAP-SPARK PLUG

21130-1002

Unavailable

21130A

CAP-SPARK PLUG

21130-1003

Unavailable

59026

COIL-PULSING

59026-1085

Unavailable

92001

BOLT,6X20

92001-1091

Unavailable

92037

CLAMP,TUBE

92037-1482

Unavailable

92059

TUBE,3X7X140

92059-1687

Unavailable

92066

PLUG

92066-1286

Unavailable

92070

PLUG-SPARK,DPR8EA-9(NGK)

92070-1065

Unavailable

92070B

Not Available As Spare Part - Friction Washer

Unavailable

92070E

Not Available As Spare Part - Friction Washer

Unavailable

92070G

PLUG-SPARK,DPR7EA9(NGK)

92070-1125

Unavailable

92070J

PLUG-SPARK,DPR6EA9(NGK)

92070-1138

Unavailable

92070K

Not Available As Spare Part - Friction Washer

Unavailable

92071

GROMMET,SPARK PLUG CAP

92071-1015

Unavailable

92071A

GROMMET,PLUG CAP

92071-1124

Unavailable

92071B

GROMMET,HIGH TENSION

92071-1154

Unavailable

92071C

GROMMET,HIGH TENSION

92071-1155

Unavailable

92075

DAMPER

92075-1982

Unavailable

130

BOLT,FLANGED,6X14

130G0614

Unavailable

132

BOLT-FLANGED-SMALL,6X16

132J0616

Unavailable

223

SCREW-PAN-WS-CROS,5X16

223B0516

Unavailable
