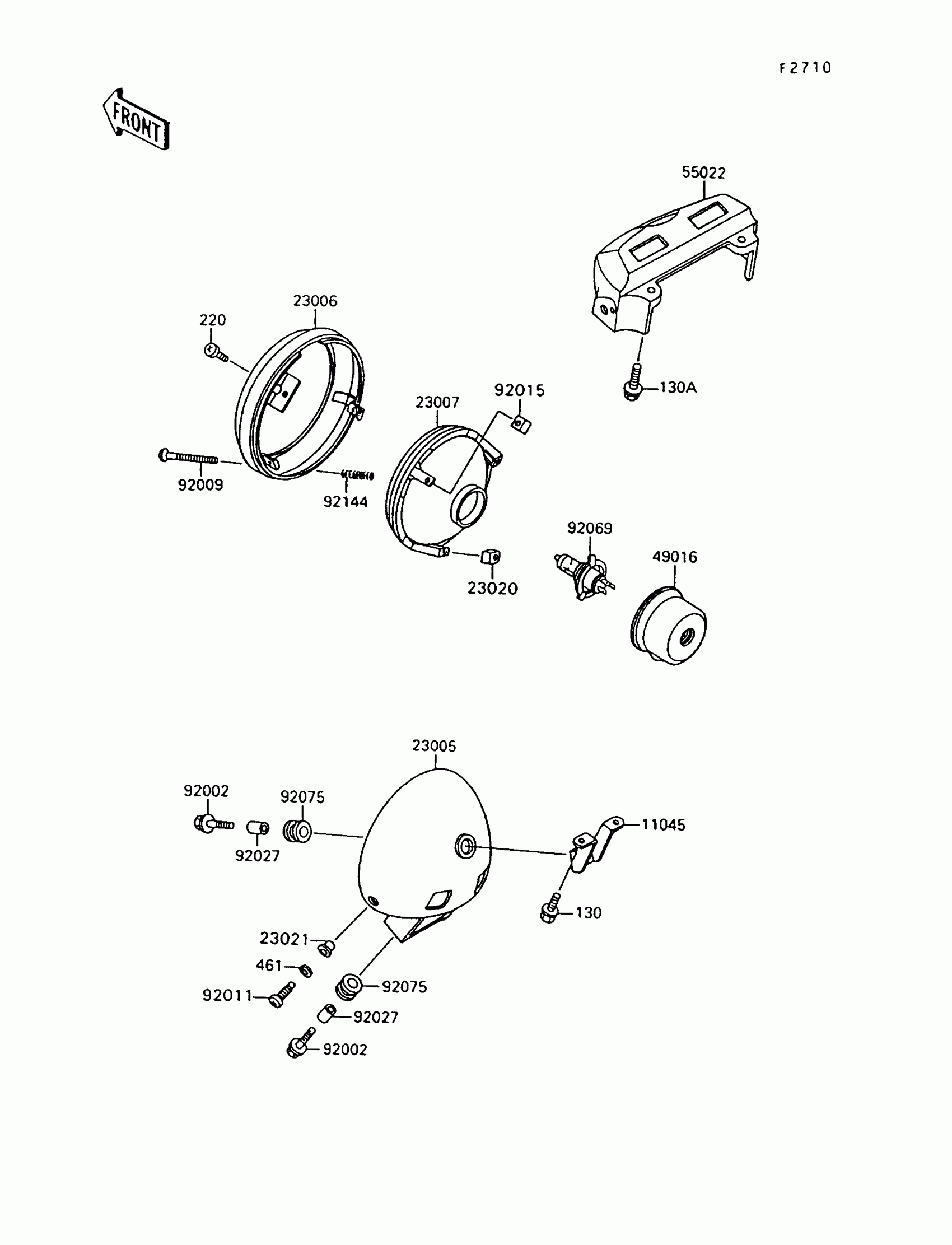

Kawasaki Vulcan 1500 Headlight(s) Diagram

#

Description

Price

130

BOLT-FLANGED

130D0612

Unavailable

130A

BOLT-FLANGED,8X25

130N0825

Unavailable

220

SCREW-PAN-CROS,5X12

220D0512

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable

11045

BRACKET,HEAD LAMP

11045-1598

Unavailable

23005

BODY-COMP-HEAD LAMP

23005-1086

Unavailable

23006

RIM-LAMP

23006-1059

Unavailable

23007

LENS-COMP,HEAD LAMP

23007-1169

Unavailable

23020

NUT,4MM,FOCUS ADJUST

23020-018

Unavailable

23021

WASHER

23021-010

Unavailable

49016

COVER-SEAL,HEAD LAMP SOCKET

49016-1129

Unavailable

55022

COVER-HEAD LAMP

55022-1059

Unavailable

92002

BOLT,6X25

92002-1135

Unavailable

92009

SCREW,FOCUS ADJUST,4X65

92009-1472

Unavailable

92011

SCREW,5MM

92011-024

Unavailable

92015

NUT,5MM

92015-1157

Unavailable

92027

COLLAR,6.8X10X14.5

92027-156

Unavailable

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER

92075-1035

Unavailable

92144

SPRING,FOCUS ADJUST

92144-1149

Unavailable
