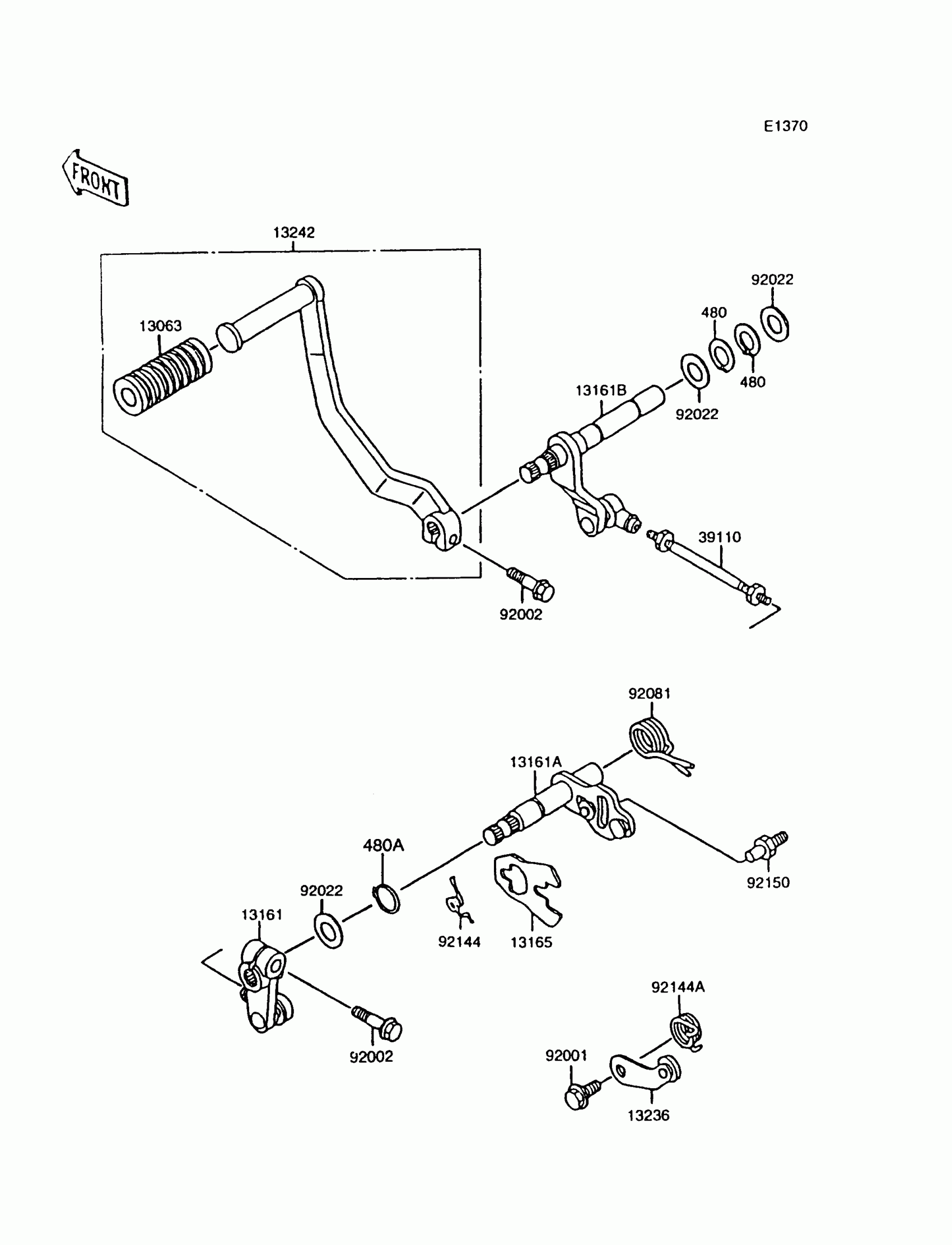

Kawasaki Vulcan 1500 Gear Change Mechanism Diagram

#

Description

Price

480

CIRCLIP-TYPE-C,12MM

480J1200

Unavailable

480A

CIRCLIP-TYPE-C,13MM

480J1300

Unavailable

13063

DAMPER,PEDAL

13063-002

Unavailable

13161

LEVER-COMP-CHANGE SHAFT,RR

13161-1142

Unavailable

13161A

LEVER-COMP-CHANGE SHAFT

13161-1150

Unavailable

13161B

LEVER-COMP-CHANGE SHAFT,FR

13161-1241

Unavailable

13165

PAWL

13165-1120

Unavailable

13236

LEVER-COMP,POSITION

13236-1126

Unavailable

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1229

Unavailable

39110

ROD-ASSY-TIE

39110-1073

Unavailable

92001

BOLT,FLANGED,6X14

92001-1715

Unavailable

92002

BOLT,6X20

92002-1237

Unavailable

92022

WASHER,13.2X20X0.5

92022-1224

Unavailable

92081

SPRING,CHANGE PEDAL RETURN

92081-1869

Unavailable

92144

SPRING

92144-1029

Unavailable

92144A

SPRING,RETURN

92144-1140

Unavailable

92150

BOLT,RETURN SPRING

92150-1869

Unavailable
