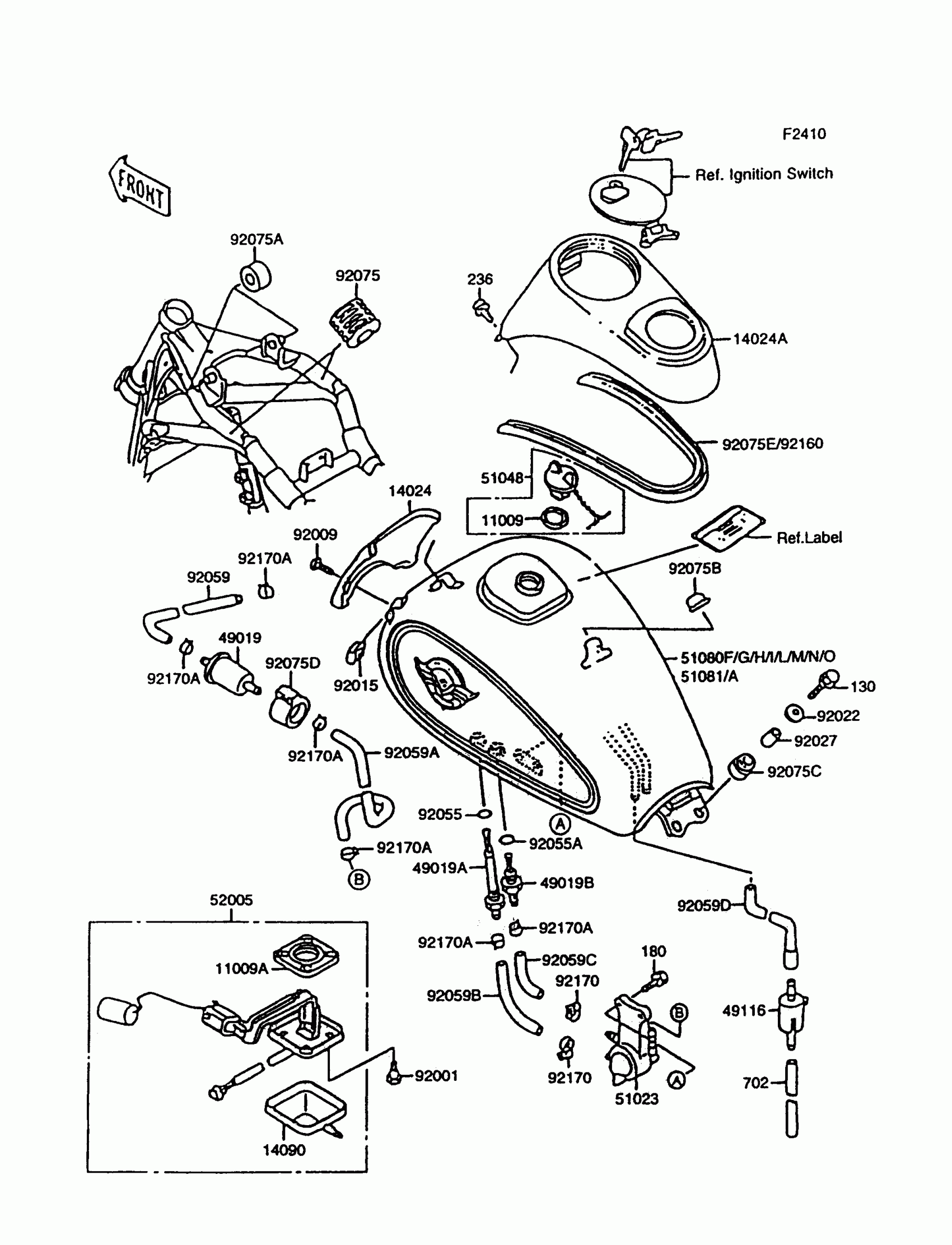

Kawasaki Vulcan 1500 Fuel Tank Diagram

#

Description

Price

11009

GASKET,TANK CAP

11009-1326

Unavailable

11009A

GASKET,FUEL GAUGE

11009-1656

Unavailable

14024

COVER,FUEL TANK,FR

14024-1453

Unavailable

14024A

COVER,FUEL TANK,UPP

14024-1614

Unavailable

14090

COVER,FUEL GAUGE

14090-1624

Unavailable

49019

FILTER-FUEL

49019-1055

Unavailable

49019A

FILTER-FUEL,"ON"

49019-1056

Unavailable

49019B

FILTER-FUEL,RES

49019-1057

Unavailable

49116

VALVE-ASSY,BREATHER

49116-1063

Unavailable

51023

TAP-ASSY,FUEL

51023-1136

Unavailable

51048

CAP-ASSY-TANK,FUEL

51048-1094

Unavailable

52005

GAUGE,FUEL

52005-1084

Unavailable

92001

BOLT,FUEL GAUGE

92001-1705

Unavailable

92009

SCREW,5X10

92009-1651

Unavailable

92015

NUT,CLAMP,5MM

92015-1677

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

Unavailable

92027

COLLAR,6.8X10X14.5

92027-156

Unavailable

92055

RING-O,ID=9.5

92055-1386

Unavailable

92055A

RING-O,11.5X1.5

92055-1387

Unavailable

92059

TUBE

92059-1785

Unavailable

92059A

TUBE

92059-1786

Unavailable

92059B

TUBE,"ON"

92059-1818

Unavailable

92059C

TUBE,"RES"

92059-1819

Unavailable

92059D

TUBE

92059-1854

Unavailable

92075

DAMPER,FUEL TANK

92075-084

Unavailable

130

BOLT-FLANGED,6X25

130B0625

Unavailable

180

BOLT-UPSET-WS

180B0608

Unavailable

236

SCREW-PAN-WSP-CROS,5X10

236B0510

Unavailable

92075A

DAMPER,FUEL TANK,FR

92075-1115

Unavailable

92075B

DAMPER

92075-1445

Unavailable

92075C

DAMPER

92075-167

Unavailable

92075D

DAMPER,FUEL FILTER

92075-1853

Unavailable

92160

DAMPER,FUEL TANK COVER

92160-1873

Unavailable

92170

CLAMP

92170-1278

Unavailable

92170A

CLAMP

92170-2043

Unavailable

51081

TANK-COMP-FUEL,EBONY/GRAY

51081-5046-TT

Unavailable

51081A

TANK-COMP-FUEL,EBONY/GRAY

51081-5047-TT

Unavailable

702

TUBE-RUBBER,5X8X550

702A05550

Unavailable
