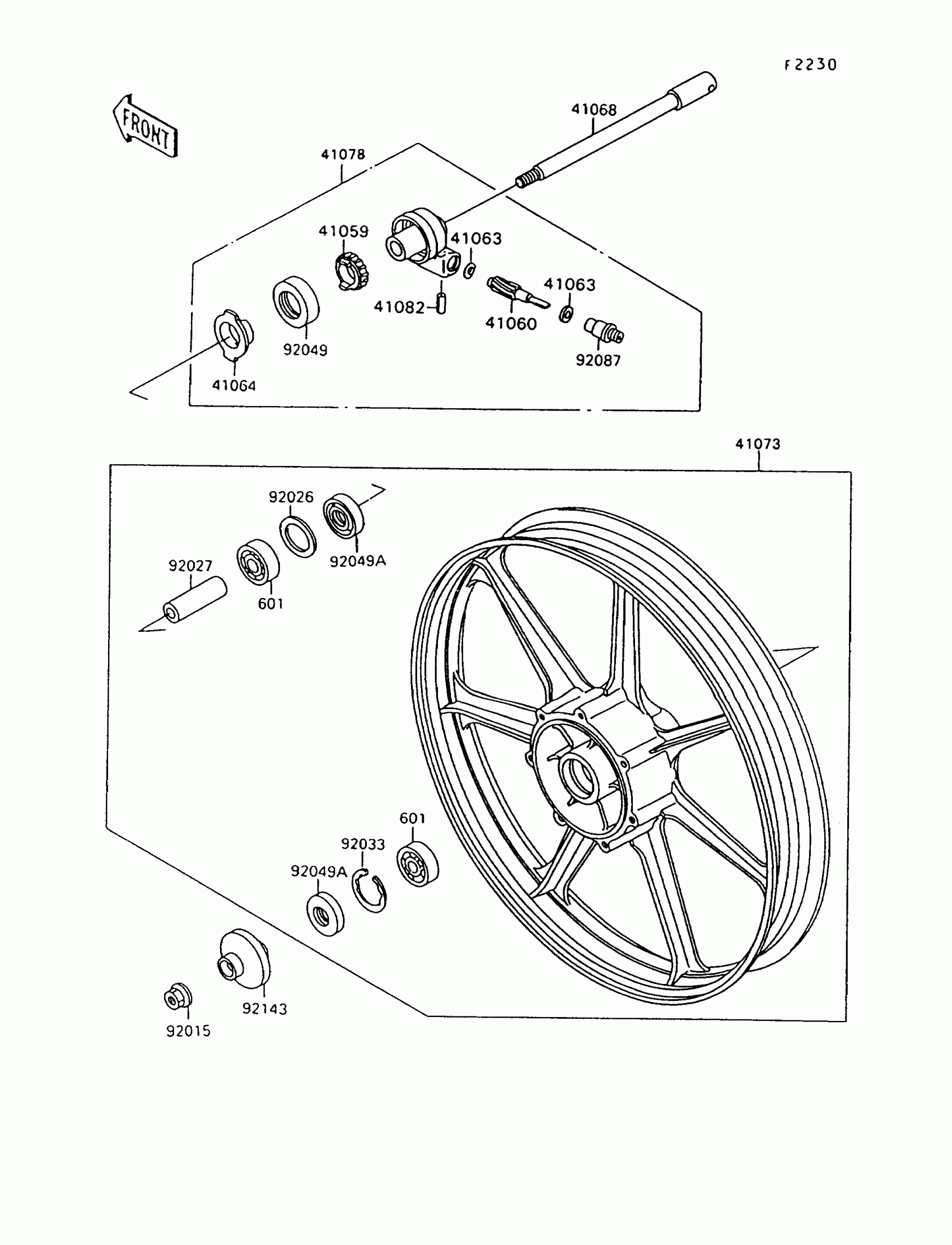

Kawasaki Vulcan 1500 Front Wheel Diagram

#

Description

Price

601

BEARING-BALL,#6302UG

601B6302UG

Unavailable

41059

GEAR-METER SCREW,26T

41059-026

Unavailable

41060

GEAR-METER SCREW,9T

41060-1006

Unavailable

41063

WASHER,5.1X9X0.4

41063-001

Unavailable

41064

RECEIVER-SPEEDOMETER

41064-1053

Unavailable

41068

AXLE,FR

41068-1189

Unavailable

41073

WHEEL-ASSY,FR,BLACK

41073-1587-18

Unavailable

41078

CASE-ASSY-METER GEAR

41078-1099

Unavailable

41082

PIN,SPRING

41082-001

Unavailable

92015

NUT,14MM

92015-1407

Unavailable

92026

SPACER,32X41.5X2.6

92026-1354

Unavailable

92027

COLLAR,L=70

92027-1866

Unavailable

92033

RING-SNAP,42MM

92033-1041

Unavailable

92049

SEAL-OIL,BJN30427-C3

92049-1057

Unavailable

92049A

SEAL-OIL,BJN22425

92049-1058

Unavailable

92087

BUSHING-METER GEAR

92087-1056

Unavailable

92143

COLLAR,FRONT AXLE,L=30

92143-1082

Unavailable
