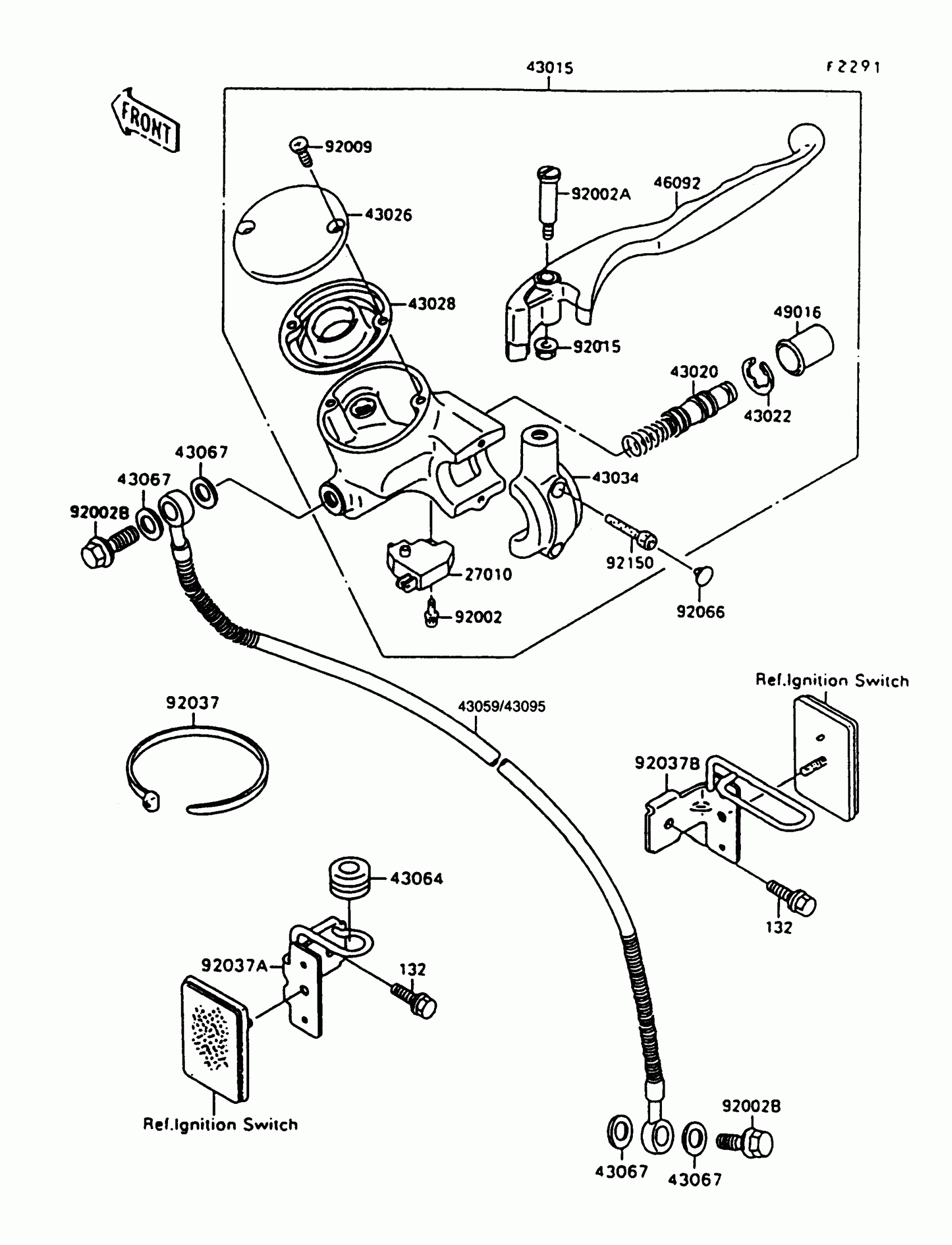

Kawasaki Vulcan 1500 Front Master Cylinder Diagram

#

Description

Price

132

BOLT-FLANGED-SMALL,6X10

132E0610

Unavailable

27010

SWITCH,BRAKE

27010-1170

Unavailable

43015

CYLINDER-ASSY-MASTER,FR

43015-1511

Unavailable

43020

PISTON-COMP-BRAKE

43020-1098

Unavailable

43022

STOPPER-BRAKE,PISTON

43022-1010

Unavailable

43026

CAP-BRAKE,SILVER

43026-1078

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1071

Unavailable

43034

HOLDER-BRAKE,SILVER

43034-1102

Unavailable

43064

GROMMET,HOSE CLAMP

43064-006

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

Unavailable

43095

HOSE-BRAKE,FR

43095-1076

Unavailable

46092

LEVER-GRIP,FRONT BRAKE

46092-1172

Unavailable

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

Unavailable

92002

BOLT,SCREW,4X12

92002-1323

Unavailable

92002A

BOLT,LEVER SET

92002-1561

Unavailable

92002B

BOLT,OIL,L=23

92002-1888

Unavailable

92009

SCREW,5MM

92009-1440

Unavailable

92015

NUT,FLANGED,6MM

92015-1528

Unavailable

92037

CLAMP

92037-1173

Unavailable

92037A

CLAMP,HOSE

92037-1884

Unavailable

92037B

CLAMP,CABLE

92037-1885

Unavailable

92066

PLUG

92066-1301

Unavailable

92150

BOLT,SOCKET,6MM

92150-1025

Unavailable
