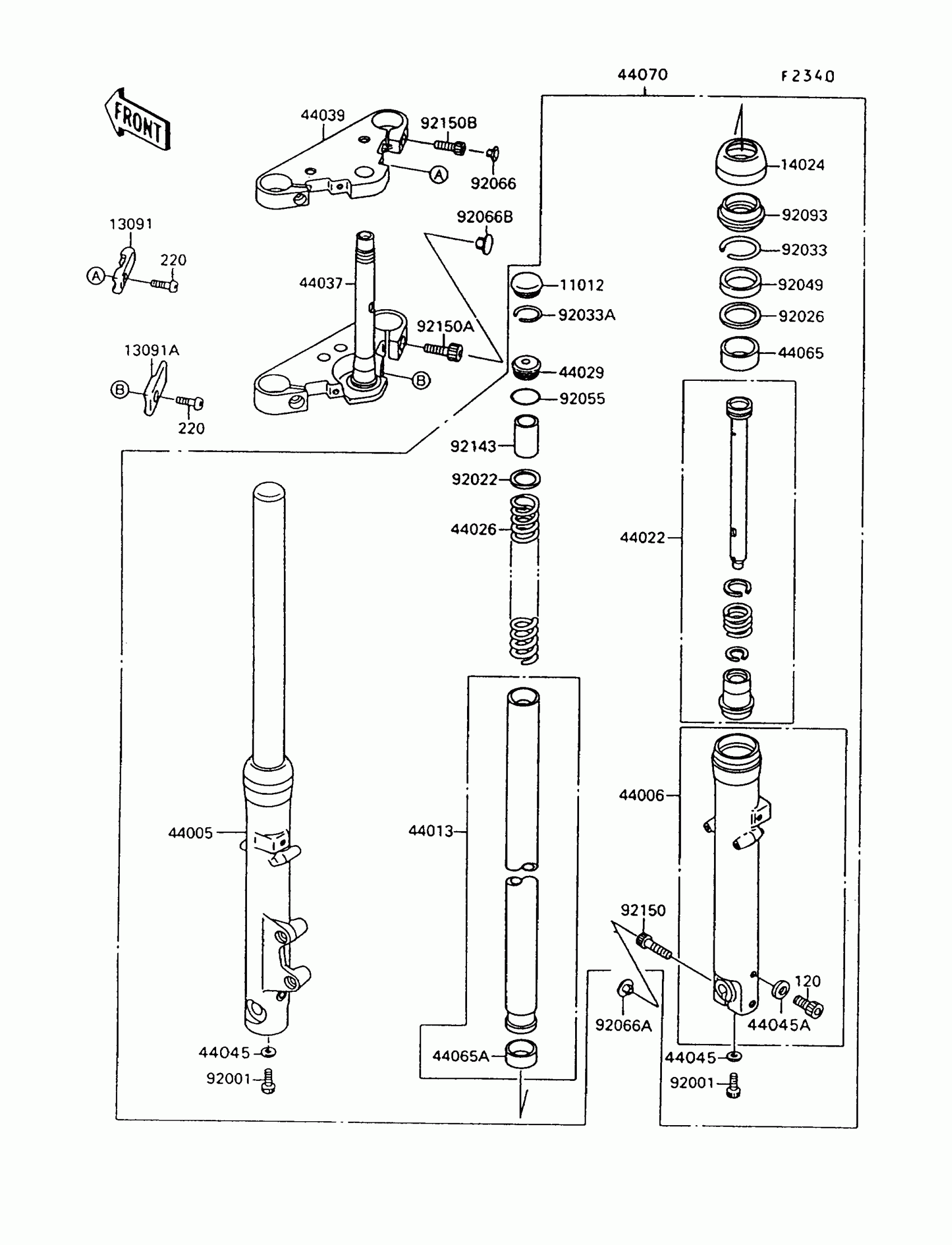

Kawasaki Vulcan 1500 Front Fork Diagram

#

Description

Price

120

BOLT-SOCKET

120P0608

Unavailable

220

SCREW-PAN-CROS,6X20

220E0620

Unavailable

11012

CAP,FORK TOP

11012-1618

Unavailable

13091

HOLDER,UPP

13091-1482

Unavailable

13091A

HOLDER,LWR

13091-1483

Unavailable

14024

COVER,FORK OUTER TUBE

14024-1600

Unavailable

44005

PIPE-LEFT FORK OUTER

44005-1264

Unavailable

44006

PIPE-RIGHT FORK OUTER

44006-1261

Unavailable

44013

PIPE-FORK INNER

44013-1268

Unavailable

44022

CYLINDER-FORK

44022-1215

Unavailable

44026

SPRING-FRONT FORK

44026-1372

Unavailable

44029

SEAT-FORK SPRING

44029-1125

Unavailable

44037

HOLDER-FORK UNDER

44037-1235

Unavailable

44039

HOLDER-FORK UPPER

44039-1151

Unavailable

44045

GASKET,FORK CYLINDER BOLT

44045-051

Unavailable

44045A

GASKET,DRAIN PLUG

44045-052

Unavailable

44065

BUSHING-FRONT FORK

44065-1079

Unavailable

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1080

Unavailable

44070

DAMPER-ASSY,FORK

44070-5038

Unavailable

92001

BOLT,FORK CYLINDER

92001-1464

Unavailable

92022

WASHER

92022-1909

Unavailable

92026

SPACER,FORK OUTER

92026-1276

Unavailable

92033

RING-SNAP

92033-1222

Unavailable

92033A

RING-SNAP,SPRING SEAT

92033-1223

Unavailable

92049

SEAL-OIL,FORK

92049-1363

Unavailable

92055

RING-O,SPRING SEAT

92055-1363

Unavailable

92066

PLUG

92066-1277

Unavailable

92066A

PLUG

92066-1285

Unavailable

92066B

PLUG

92066-1302

Unavailable

92093

SEAL,FORK

92093-1268

Unavailable

92143

COLLAR,FORK SPRING

92143-1053

Unavailable

92150

BOLT,SOCKET,10X40

92150-1029

Unavailable

92150A

BOLT,SOCKET,12MM

92150-1030

Unavailable

92150B

BOLT,SOCKET,8X30

92150-1031

Unavailable
