Front Bevel Gear

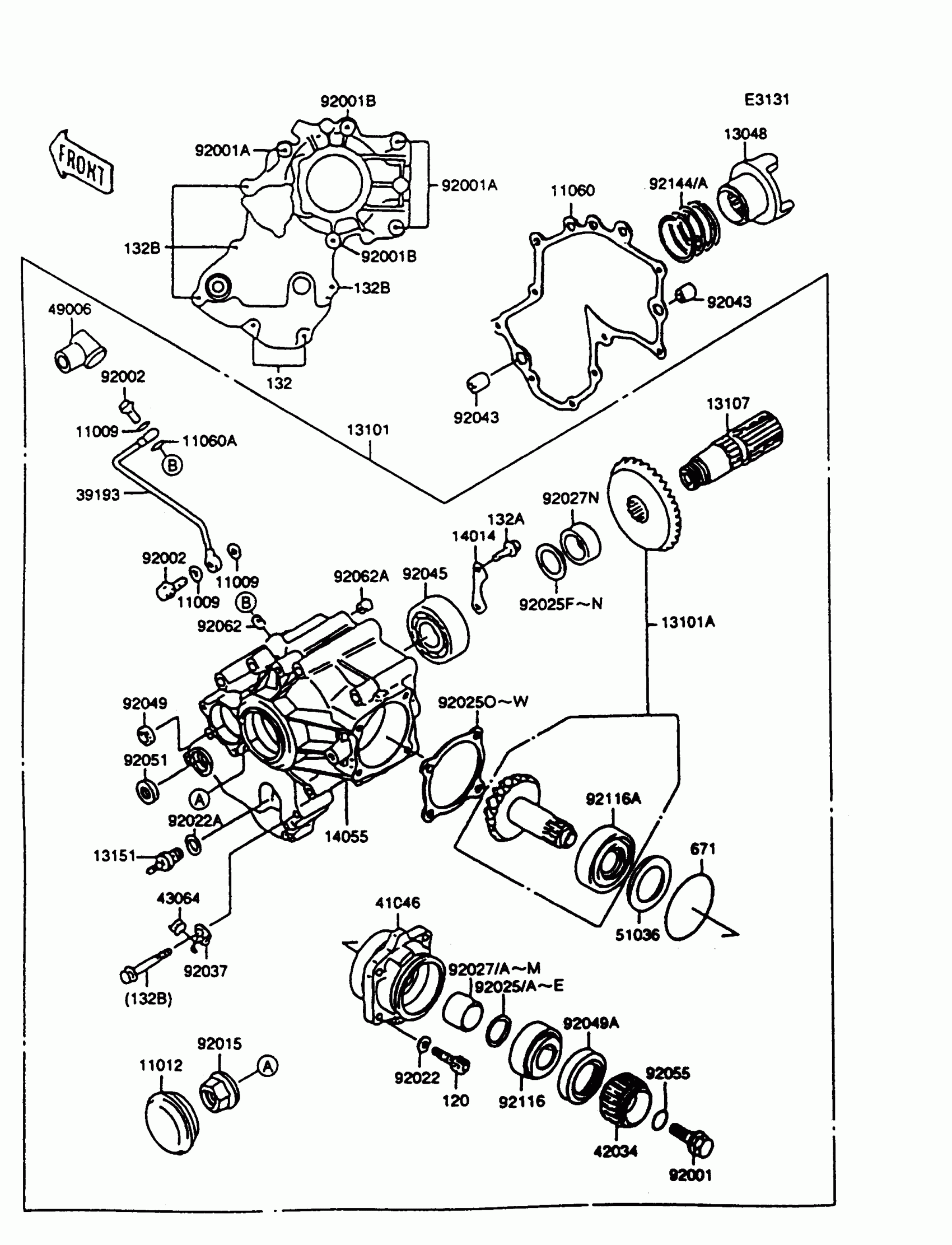

Kawasaki Vulcan 1500 Front Bevel Gear Diagram
#
11009
GASKET,8.2X14X1.0
11009-1344
Unavailable
11012
CAP
11012-1071
Unavailable
11060
GASKET,GEAR CASE
11060-1120
Unavailable
11060A
GASKET,OIL PIPE,8.2X25X1.0
11060-1872
Unavailable
13048
CAM-DAMPER
13048-1074
Unavailable
13101
GEAR-ASSY,BEVEL,FR
13101-1118
Unavailable
13101A
GEAR-ASSY,BEVEL,FR
13101-5065
Unavailable
13107
SHAFT,BEVEL,FR
13107-1263
Unavailable
13151
SWITCH-COMP,NEUTRAL
13151-1010
Unavailable
14014
PLATE-POSITION
14014-1084
Unavailable
14055
CASE-GEAR
14055-1074
Unavailable
39193
PIPE-OIL
39193-1026
Unavailable
41046
HOUSING-BEARING
41046-1085
Unavailable
42034
COUPLING,FR DRIVEN
42034-1091
Unavailable
43064
GROMMET,HOSE CLAMP
43064-006
Unavailable
49006
BOOT,DUST
49006-1040
Unavailable
51036
CUP
51036-1002
Unavailable
92001
BOLT,FLANGED,12X42
92001-1169
Unavailable
92001A
BOLT,8X90
92001-1480
Unavailable
92001B
BOLT,FLANGED,8X110
92001-1597
Unavailable
92002
BOLT,8X20
92002-1429
Unavailable
92015
NUT,24MM
92015-1554
Unavailable
92022
WASHER,8.5X13X1
92022-1028
Unavailable
92022A
WASHER,12X18X1.0
92022-1211
Unavailable
92025
SHIM,25.2X29.8X1.70
92025-1072
Unavailable
92025A
SHIM,25.2X29.8X1.72
92025-1073
Unavailable
92025B
SHIM,25.2X29.8X1.74
92025-1074
Unavailable
92025C
SHIM,25.2X29.8X1.76
92025-1075
Unavailable
92025D
SHIM,25.2X29.8X1.78
92025-1076
Unavailable
92025E
SHIM,25.2X29.8X1.80
92025-1077
Unavailable
92025F
SHIM,25.3X36X0.15
92025-1688
Unavailable
92025G
SHIM,25.3X36X0.50
92025-1689
Unavailable
92025H
SHIM,25.3X36X0.60
92025-1690
Unavailable
92025I
SHIM,25.3X36X0.70
92025-1691
Unavailable
92025J
SHIM,25.3X36X0.80
92025-1692
Unavailable
92025K
SHIM,25.3X36X0.90
92025-1693
Unavailable
92025L
SHIM,25.3X36X1.00
92025-1694
Unavailable
92025M
SHIM,25.3X36X1.10
92025-1695
Unavailable
92025N
SHIM,25.3X36X1.20
92025-1696
Unavailable
92025O
SHIM,T=0.15
92025-1818
Unavailable
120
BOLT-SOCKET,8X30
120P0830
Unavailable
132
BOLT-FLANGED-SMALL,6X30
132E0630
Unavailable
132A
BOLT-FLANGED-SMALL,6X16
132G0616
Unavailable
132B
BOLT-FLANGED-SMALL,6X55
132G0655
Unavailable
92025P
SHIM,T=0.50
92025-1819
Unavailable
92025Q
SHIM,T=0.60
92025-1820
Unavailable
92025R
SHIM,T=0.70
92025-1821
Unavailable
92025S
SHIM,T=0.80
92025-1822
Unavailable
92025T
SHIM,T=0.90
92025-1823
Unavailable
92025U
SHIM,T=1.00
92025-1824
Unavailable
92025V
SHIM,T=1.20
92025-1825
Unavailable
92025W
SHIM,T=0.10
92025-1826
Unavailable
92027
COLLAR,25.2X29.8X22.8
92027-1152
Unavailable
92027A
COLLAR,25.2X29.8X22.9
92027-1153
Unavailable
92027B
COLLAR,25.2X29.8X23
92027-1154
Unavailable
92027C
COLLAR,25.2X29.8X23.1
92027-1155
Unavailable
92027D
COLLAR,25.2X29.8X23.2
92027-1156
Unavailable
92027E
COLLAR,25.2X29.8X23.3
92027-1157
Unavailable
92027F
COLLAR,25.2X29.8X23.4
92027-1158
Unavailable
92027G
COLLAR,25.2X29.8X23.5
92027-1159
Unavailable
92027H
COLLAR,25.2X29.8X23.6
92027-1160
Unavailable
92027I
COLLAR,25.2X29.8X23.7
92027-1161
Unavailable
92027J
COLLAR,25.2X29.8X23.8
92027-1162
Unavailable
92027K
COLLAR,25.2X29.8X23.9
92027-1163
Unavailable
92027L
COLLAR,25.2X29.8X24
92027-1164
Unavailable
92027M
COLLAR,25.2X29.8X24.1
92027-1165
Unavailable
92027N
COLLAR,25.3X36X10
92027-1968
Unavailable
92037
CLAMP
92037-1873
Unavailable
92043
PIN,11.5X14X14
92043-1279
Unavailable
92045
BEARING-BALL,6305C2
92045-1165
Unavailable
92049
SEAL-OIL,SD-8187
92049-1017
Unavailable
92049A
SEAL-OIL,TC35527
92049-1038
Unavailable
92051
SEAL-OIL,TB13225.5
92051-005
Unavailable
92055
RING-O,ID=18.64
92055-1044
Unavailable
92062
NOZZLE,6X8,GREEN
92062-1078
Unavailable
92062A
NOZZLE,10X10,SILVER
92062-1083
Unavailable
92116
BEARING-ROLLER,HI-CAP30205
92116-1062
Unavailable
92116A
BEARING-ROLLER,HI-CAP30305
92116-1063
Unavailable
92144A
SPRING,CAM DAMPER
92144-1933
Unavailable
671
O RING,65MM
671B2565
Unavailable
