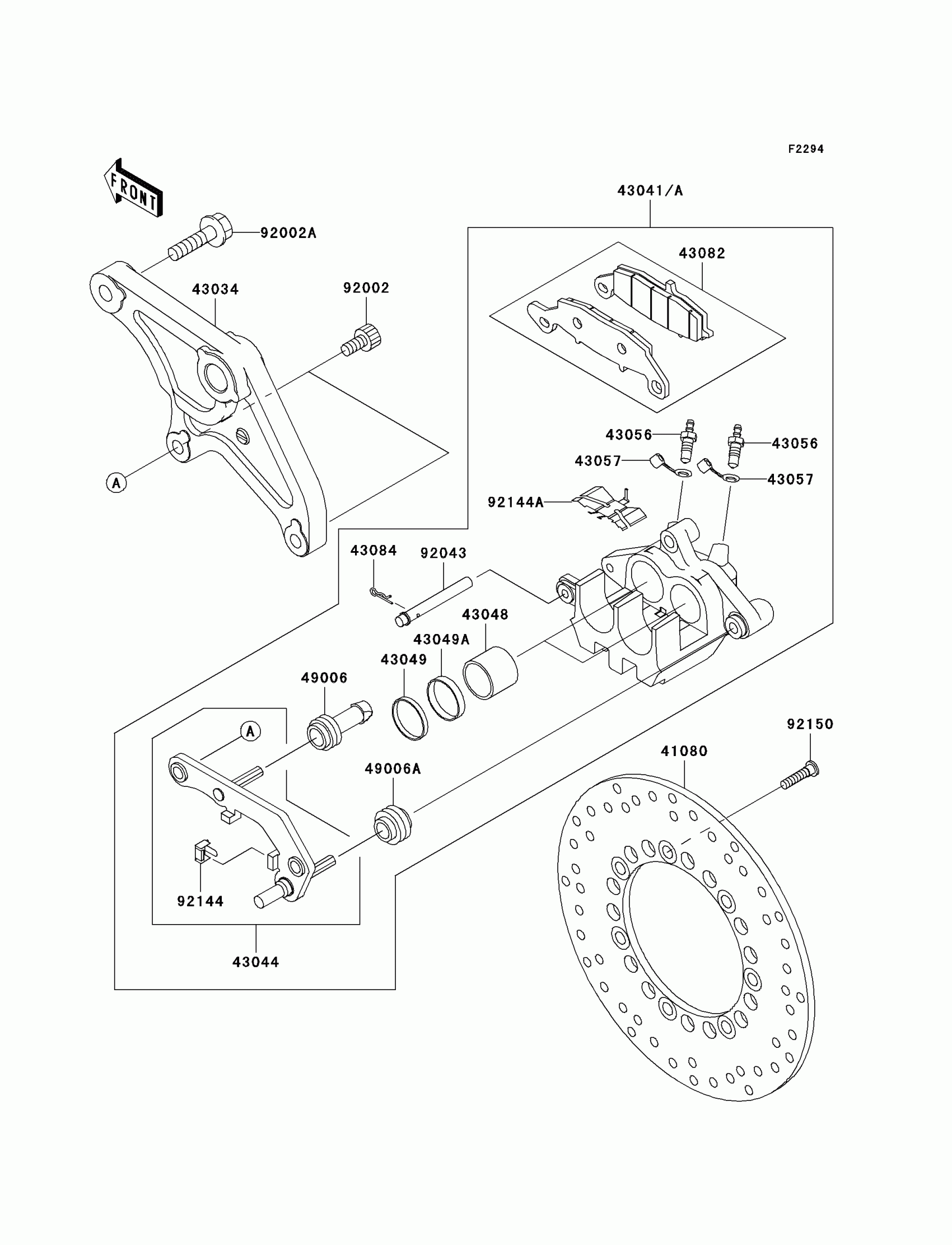

Kawasaki Vulcan 1500 Drifter Rear Brake(R1-R3) Diagram

Description

Price

41080

DISC,RR,SILVER

41080-1459-CM

$359.14

43034

HOLDER-BRAKE,REAR CALIPER

43034-1154

$135.58

43041A

CALIPER-ASSY,RR,SILVER

43041-1886-GN

$502.04

43044

HOLDER-COMP-CALIPER,RR

43044-1125

$187.61

43048

PISTON-CALIPER

43048-1073

$59.90

43049

PACKING

43049-1068

$7.79

43049A

PACKING,PISTON SEAL

43049-1092

$8.25

43056

BREATHER-BRAKE

43056-1054

$22.74

43057

CAP-BREATHER

43057-003

$2.02

43082

PAD-ASSY-BRAKE

43082-1265

Unavailable

43084

CLAMP,PAD

43084-003

$3.43

49006

BOOT,CALIPER

49006-1054

$9.20

49006A

BOOT,CALIPER

49006-1095

$5.78

92002

BOLT,SOCKET,10X17

92002-1713

$5.84

92002A

BOLT,FLANGED,12X40

92002-1969

$9.15

92043

PIN,PAD

92043-1489

$5.21

92144

SPRING,STOPPER

92144-1831

$4.34

92144A

SPRING,PAD,RH

92144-1844

$9.68

92150

BOLT,SOCKET,8X30

92150-1771

$3.72
