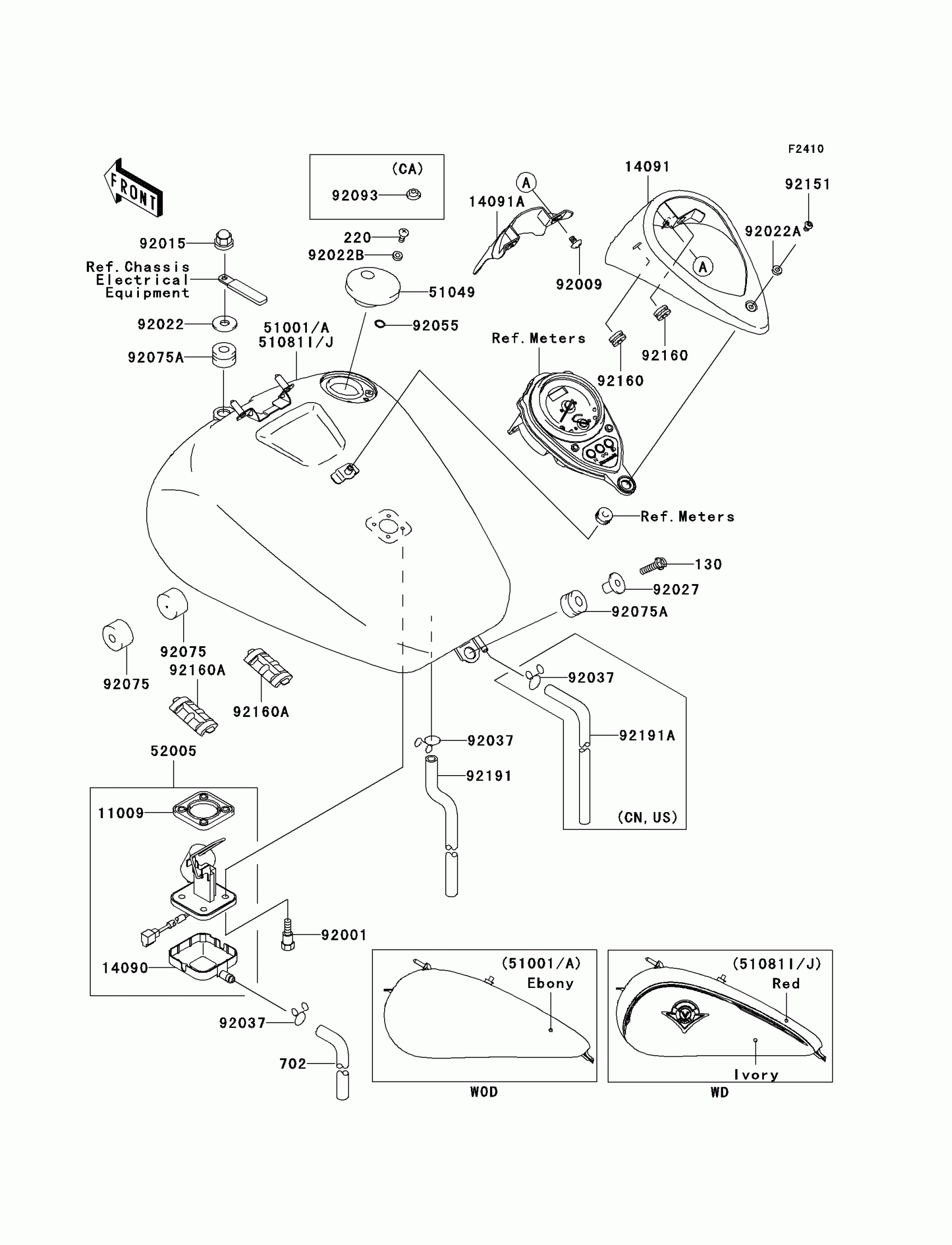

Kawasaki Vulcan 1500 Drifter Fuel Tank(R1) Diagram

#

Description
Price

11009

GASKET,FUEL GAUGE

11009-1656

Unavailable

14090

COVER,FUEL GAUGE

14090-1624

$16.00

14091

COVER,METER

14091-1208

Unavailable

14091A

COVER,METER,FR

14091-1301

$45.31

51049

CAP-TANK,FUEL

51049-1121

$107.25

130

BOLT-FLANGED,8X30

130H0830

Unavailable

220

SCREW-PAN-CROS,5X10

220D0510

Unavailable

702

TUBE-RUBBER,7X10X860

702A07860

$10.53

52005

GAUGE,FUEL

52005-1138

$152.78

92001

BOLT,FUEL GAUGE

92001-1705

Unavailable

92009

SCREW,6X12

92009-1877

$1.80

92015

NUT,CAP,8MM,BLACK

92015-1174

$3.97

92022

WASHER,8X26X2.3

92022-1345

$3.43

92022A

WASHER-PLAIN

92022-183

$3.12

92022B

WASHER,5.1X10X1.0

92022-1977

$2.92

92027

COLLAR,L=19.3

92027-1780

$5.21

92055

RING-O,ID=9

92055-1552

$2.80

92075

DAMPER,FUEL TANK

92075-125

$4.93

92075A

DAMPER

92075-1736

$5.21

92151

BOLT,SOCKET,6X10

92151-1449

$1.63

92160

DAMPER

92160-1162

$3.97

92160A

DAMPER,FUEL TANK

92160-1907

$18.66

92191

TUBE,DRAIN

92191-1272

$23.59

51001

TANK-COMP-FUEL,EBONY

51001-1570-H8

Unavailable

51001A

TANK-COMP-FUEL,EBONY

51001-1586-H8

Unavailable

51081I

TANK-COMP-FUEL,RED/IVORY

51081-5353-I2

Unavailable

51081J

TANK-COMP-FUEL,RED/IVORY

51081-5354-I2

Unavailable

92037

CLAMP,TUBE

92037-147

$5.84

92037

CLAMP,TUBE

92037-147

$5.84

92093

SEAL,FUEL TANK CAP

92093-1030

$6.18

92191A

TUBE,5X10X650

92191-1529

Unavailable
