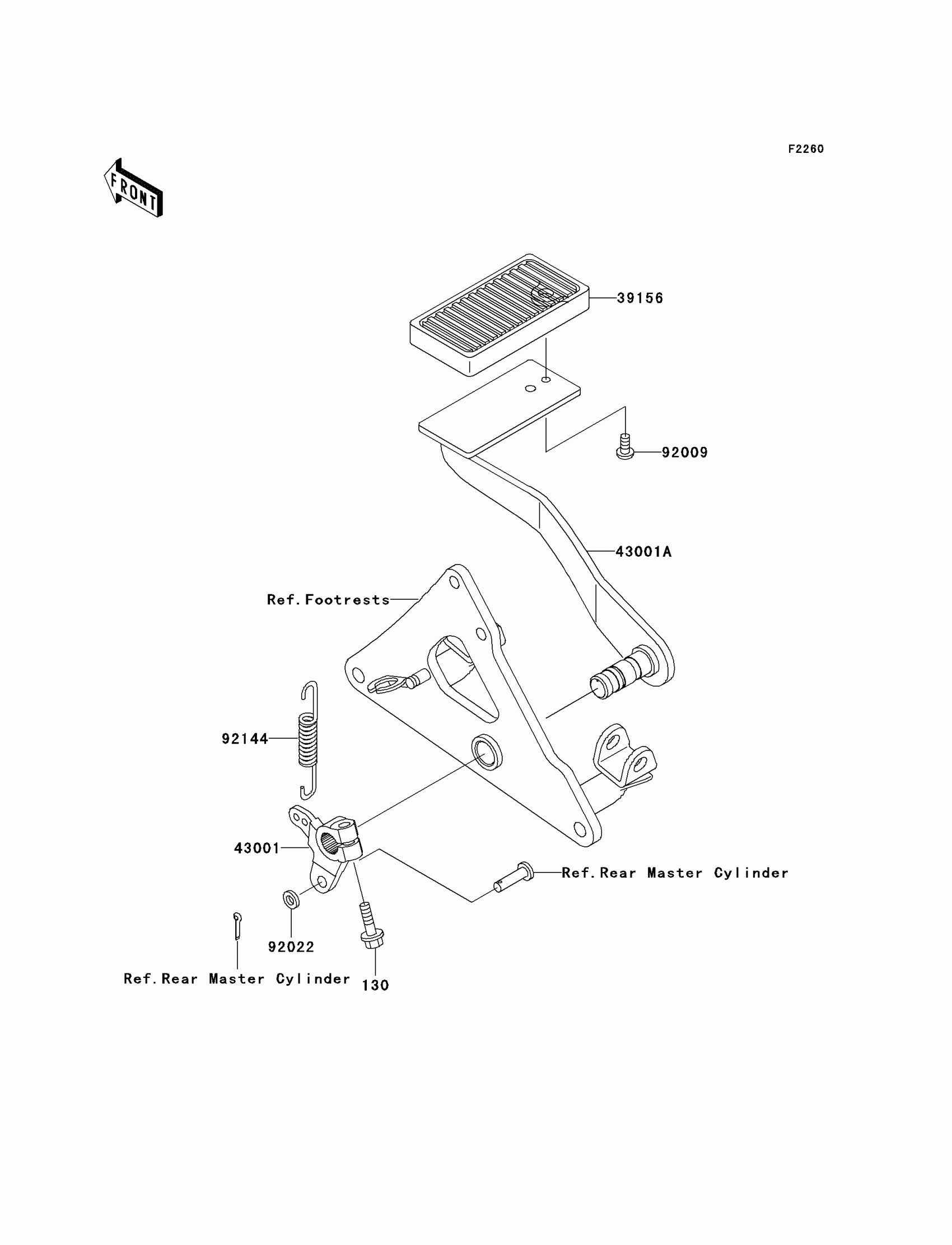

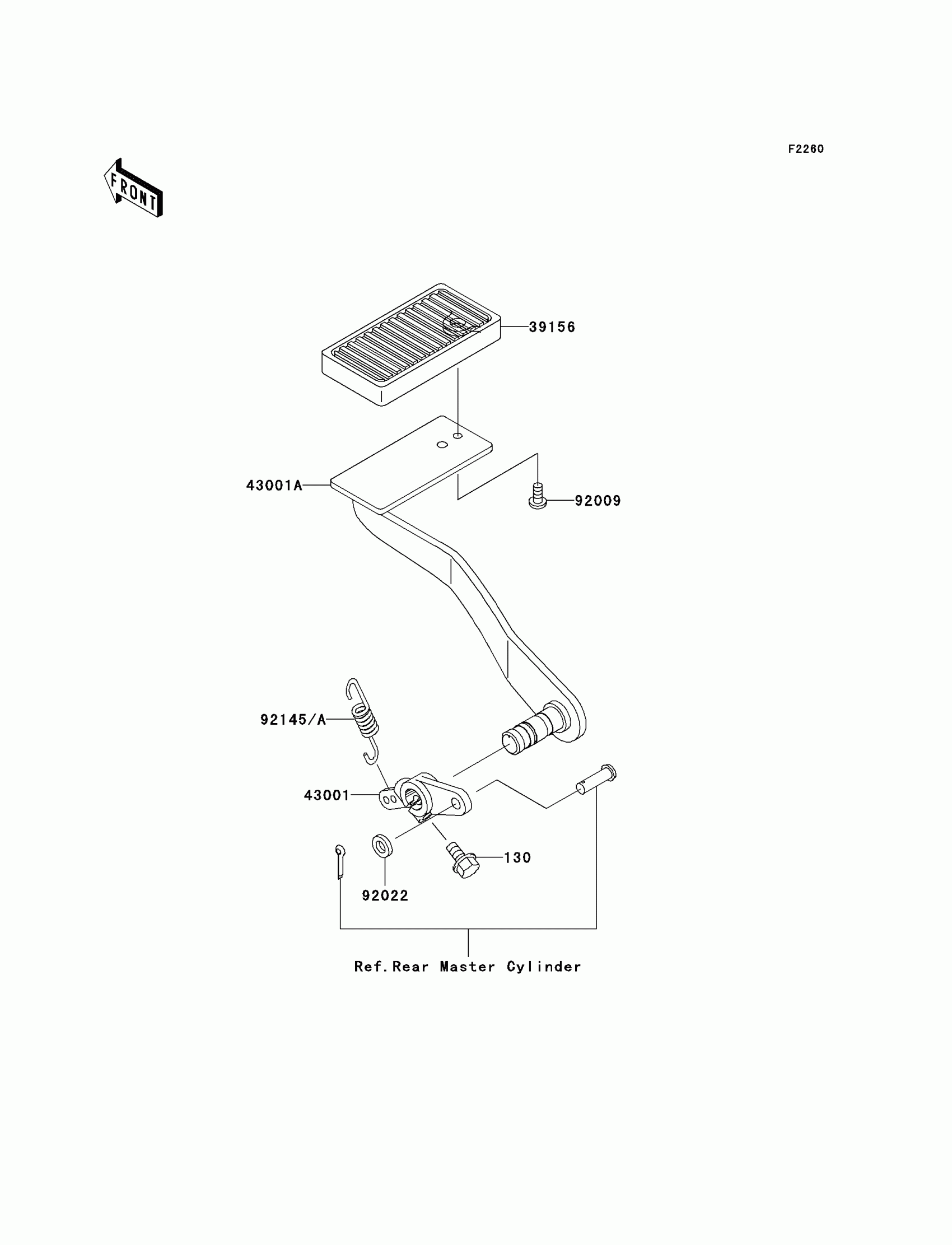

Kawasaki Vulcan 1500 Drifter Brake Pedal/Torque Link Diagram

#

Description

Price

130

BOLT-FLANGED,8X30

130J0830

Unavailable

39156

PAD,BRAKE PEDAL

39156-1540

$15.64

43001

LEVER-BRAKE

43001-1399

Unavailable

43001A

LEVER-BRAKE,PEDAL

43001-1412

Unavailable

92009

SCREW,6X8

92009-1677

$3.29

92022

WASHER,8.5X16X1.2

92022-1582

$0.81

92144

SPRING,BRAKE PEDAL RETURN

92144-1169

$9.14
