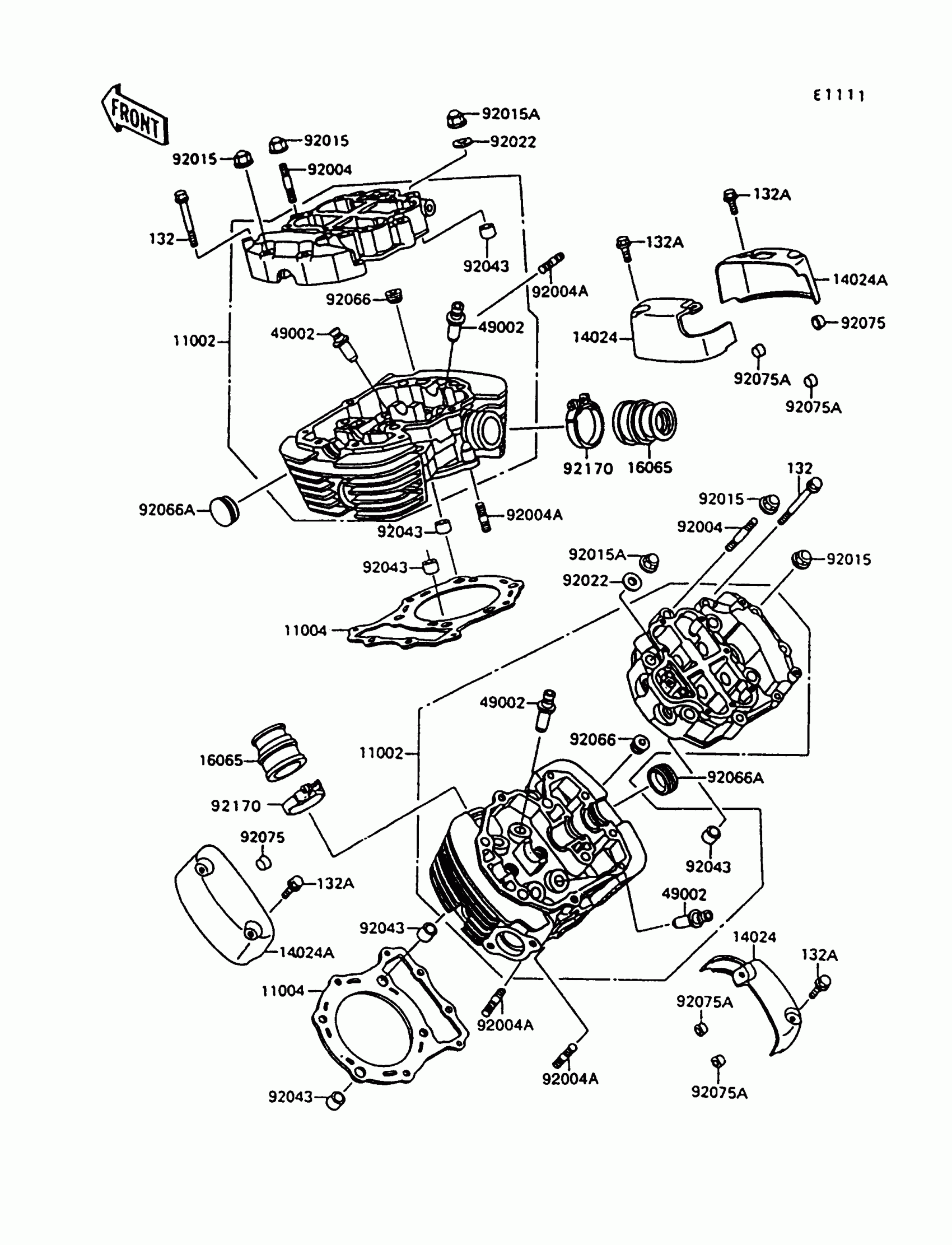

Kawasaki Vulcan 1500 Cylinder Head Diagram

#

Description

Price

132

BOLT-FLANGED-SMALL

132E06115

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

11002

HEAD-ASSY-CYLINDER

11002-1229

Unavailable

11004

GASKET-HEAD

11004-1334

Unavailable

14024

COVER,ROCKER

14024-1570

Unavailable

14024A

COVER,ROCKER

14024-1617

Unavailable

16065

HOLDER-CARBURETOR

16065-1153

Unavailable

49002

GUIDE-VALVE

49002-1088

Unavailable

92004

STUD,8X51.5

92004-1173

Unavailable

92004A

STUD,8X25

92004-1214

Unavailable

92015

NUT,CAP,8MM

92015-1371

Unavailable

92015A

NUT,CAP,12MM

92015-1648

Unavailable

92022

WASHER,12.3X25X3.2

92022-1862

Unavailable

92043

PIN,DOWEL,13X16X14

92043-1349

Unavailable

92066

PLUG,PT1/2X12.5

92066-1253

Unavailable

92066A

PLUG

92066-1289

Unavailable

92075

DAMPER

92075-1995

Unavailable

92075A

DAMPER

92075-1996

Unavailable

92170

CLAMP

92170-1448

Unavailable
