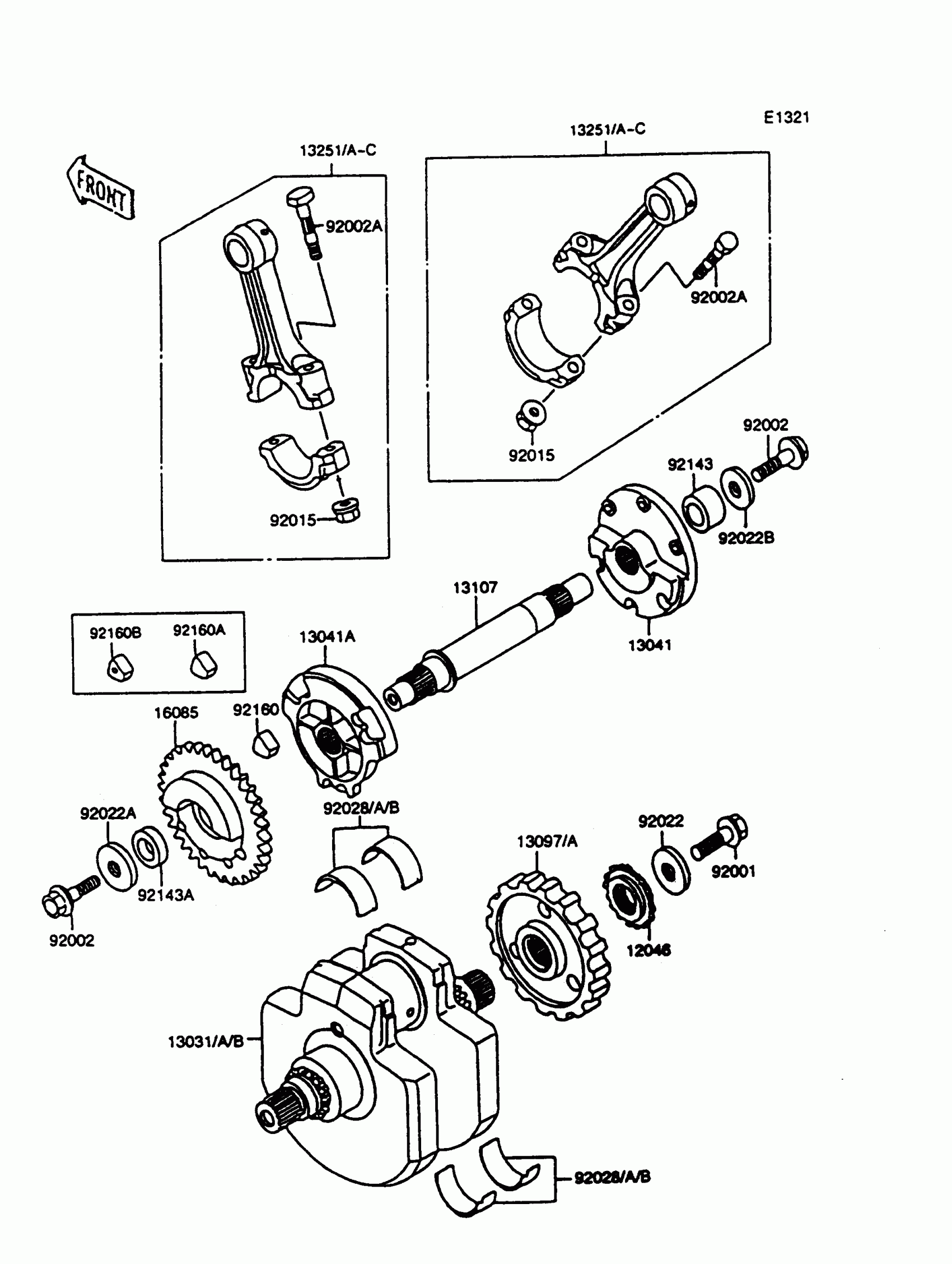

Kawasaki Vulcan 1500 Crankshaft Diagram

#

Description

Price

12046

SPROCKET,WATER PUMP

12046-1103

Unavailable

13031A

CRANKSHAFT-COMP

13031-1411

Unavailable

13041

BALANCER,RH

13041-1089

Unavailable

13041A

BALANCER,LH

13041-1093

Unavailable

13097A

GEAR-PRIMARY SPUR,56T

13097-1369

Unavailable

13107

SHAFT,BALANCER

13107-1195

Unavailable

13251A

ROD-ASSY-CONNECTING,G

13251-1080-GG

Unavailable

13251C

ROD-ASSY-CONNECTING,I

13251-1080-II

Unavailable

16085

GEAR,BALANCER

16085-1215

Unavailable

92001

BOLT,FLANGED,12X40

92001-1146

Unavailable

92002

BOLT,FLANGED,10X40

92002-1296

Unavailable

92002A

BOLT,CONNECTING ROD

92002-1896

Unavailable

92015

NUT,CONNECTING ROD

92015-1643

Unavailable

92022

WASHER,12X40X6

92022-1904

Unavailable

92022A

WASHER,10X40X6

92022-1905

Unavailable

92022B

WASHER,10X33X6

92022-1906

Unavailable

92028

BUSHING,CONNECTING ROD,BLUE

92028-1474

Unavailable

92028A

BUSHING,CONNECTING ROD,BLACK

92028-1475

Unavailable

92028B

BUSHING,CONNECTING ROD,BROWN

92028-1476

Unavailable

92143

COLLAR,20X30X24

92143-1093

Unavailable

92143A

COLLAR,20X31X10

92143-1126

Unavailable

92160A

DAMPER

92160-1725

Unavailable

92160B

DAMPER

92160-1726

Unavailable
